EG1400Z A (GE150) - Honda Generator, Made in Japan (SN: GE150-1000001 - GE150-9999999) CYLINDER HEAD + CYLINDER Parts Diagram

Generator, Made in Japan

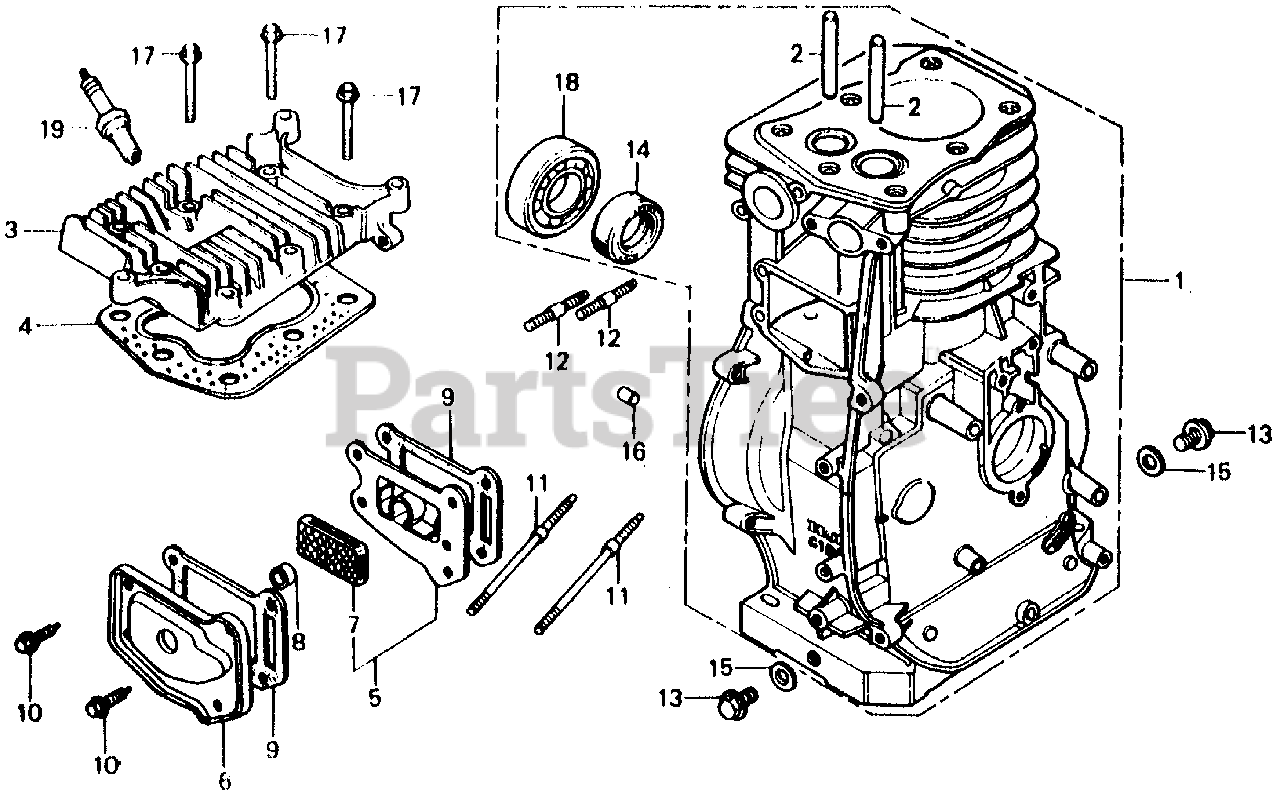

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 12000-887-325

CYLINDER ASSY.

$

$

Not available

2

Honda 12133-887-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 12134-887-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS)

$20.99

$

Usually ships in 3-6 days

0

3

Honda 12221-887-315

CYLINDER HEAD

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12281-887-306

GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12360-ZA3-000

CASE, BREATHER

$

$

Not available

6

Honda 12361-887-000

COVER, TAPPET ROOM

$17.99

$

Usually ships in 3-6 days

0

7

Honda 12367-890-003

FILTER, BREATHER

$

$

Not available

8

Honda 12369-883-000

SEAL, BREATHER

$4.49

$

Usually ships in 3-6 days

0

9

Honda 12375-887-000

GASKET, TAPPET COVER

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90043-883-680

SEE PART DETAILS - SUP; BOLT, STUD (6X89)

$

$

Currently unavailable

11

Honda 90043-883-681

SEE PART DETAILS - PRI; BOLT, STUD (6X89)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90047-883-000

BOLT, STUD (8X35)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, only 2 left!

0

14

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, only 4 left!

0

14

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, only 4 left!

0

15

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

16

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

17

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 4 left!

0

17

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, only 4 left!

0

18

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 1 left!

0

19

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.49

$

In Stock, Qty 11

0

19

Honda 98076-54757

SPARK PLUG (W14FR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
