EG1400Z A (GE150) - Honda Generator, Made in Japan (SN: GE150-1000001 - GE150-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

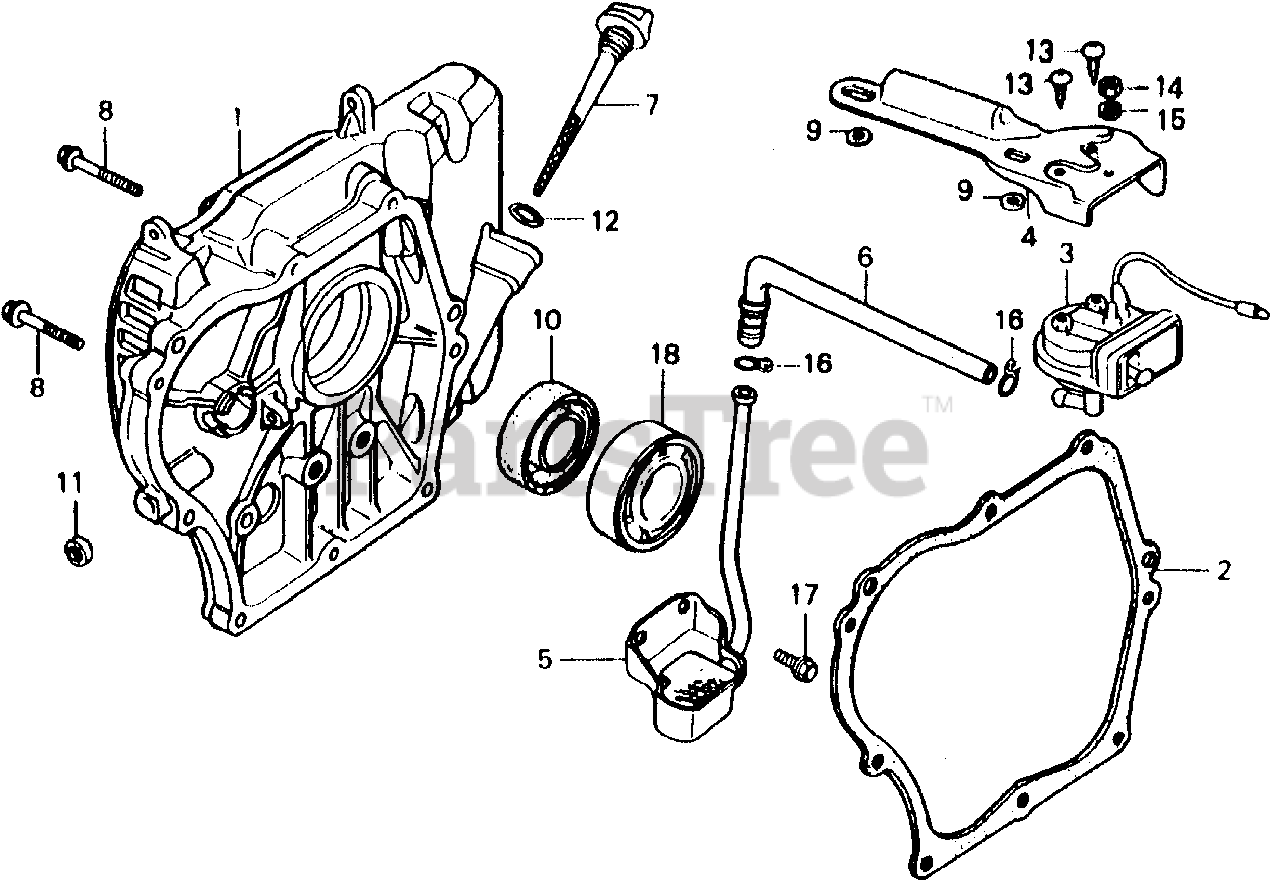

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZA3-000

COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 11381-883-800

GASKET, COVER

$12.99

$

Usually ships in 3-6 days

0

3

Honda 15520-883-891

SEE PART DETAILS - PRI; SWITCH ASSY.

$

$

Not available

4

Honda 15521-883-890

BRACKET, UNIT SWITCH

$35.99

$

Usually ships in 3-6 days

0

5

Honda 15525-898-000

CUP, OIL

$

$

Not available

6

Honda 15530-883-891

TUBE, OIL ALERT

$22.99

$

Usually ships in 3-6 days

0

7

Honda 15620-ZA5-000

CAP, OIL FILLER

$

$

Currently unavailable

8

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

9

Honda 90581-831-650

WASHER (18MM)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

Usually ships in 3-6 days

0

11

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

11

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

12

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

13

Honda 93903-25180

SCREW, TAPPING (5X10)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94001-050800S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

17

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

17

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

18

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 3 left!

0
