EG1400Z A (GE150) - Honda Generator, Made in Japan (SN: GE150-1000001 - GE150-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

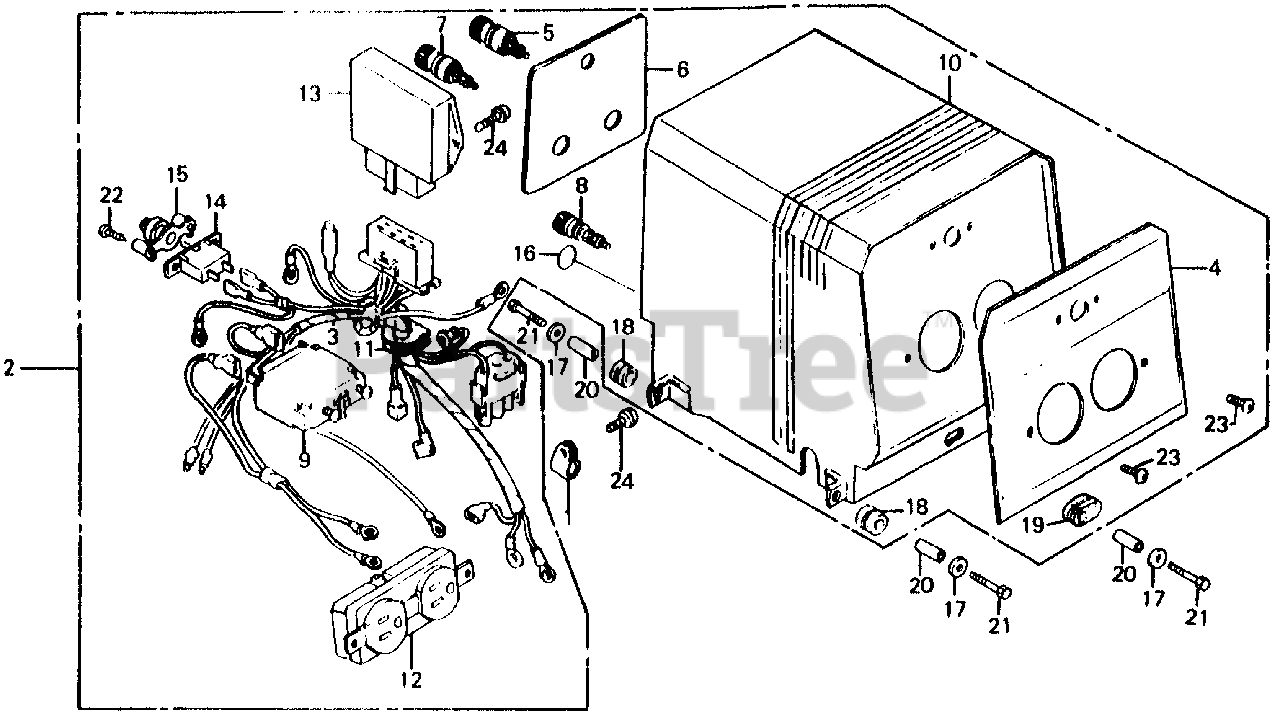

CONTROL BOX Parts Diagram

  • Title

1

Honda 30565-ZA5-000

CLAMP B, CABLE

$

$

Not available

2

Honda 31400-ZA4-830H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

3

Honda 31404-ZA4-830

WIRE HARNESS ASSY.

$

$

Not available

4

Honda 31406-ZA4-820

MARK, SWITCH PANEL

$

$

Not available

5

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$46.99

$

Usually ships in 3-6 days

0

6

Honda 31409-ZA4-830

MARK, RR. PANEL

$

$

Not available

7

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$46.99

$

Usually ships in 3-6 days

0

8

Honda 31428-ZA5-003

TERMINAL ASSY., GROUND

$

$

Not available

9

Honda 31430-ZA4-800

BREAKER, CIRCUIT (11.5A) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31450-ZA4-830H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

11

Honda 31481-ZA5-800

GROMMET, WIRE

$

$

Not available

12

Honda 32330-ZA3-003

RECEPTACLE (125V-15A)

$

$

Not available

13

Honda 32350-ZA3-003

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use up to Frame SN 1009420.

$

$

Not available

13

Honda 32350-ZA3-013

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Currently unavailable

13

Honda 32350-ZA3-305

SEE PART DETAILS - PRI; REGULATOR ASSY., AUTOMATIC

$

$

Currently unavailable

14

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$36.99

$

In Stock, only 4 left!

0

15

Honda 38250-898-000

LENS ASSY., PROTECTOR

$24.99

$

Usually ships in 3-6 days

0

16

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.49

$

In Stock, Qty 5

0

17

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

18

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90853-ZA3-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

20

Honda 91552-ZA5-000

COLLAR, CONTROL BOX (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 92101-06025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

$2.49

$

In Stock, Qty 10

0

22

Honda 93500-03012-0A

SCREW, PAN (3X12)

$1.49

$

In Stock, Qty 6

0

23

Honda 93500-04006-0A

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93891-05012-00

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0
