EG1400X A (GX110) - Honda Generator, Made in Japan (SN: GX110-1000001 - GX110-2454428) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

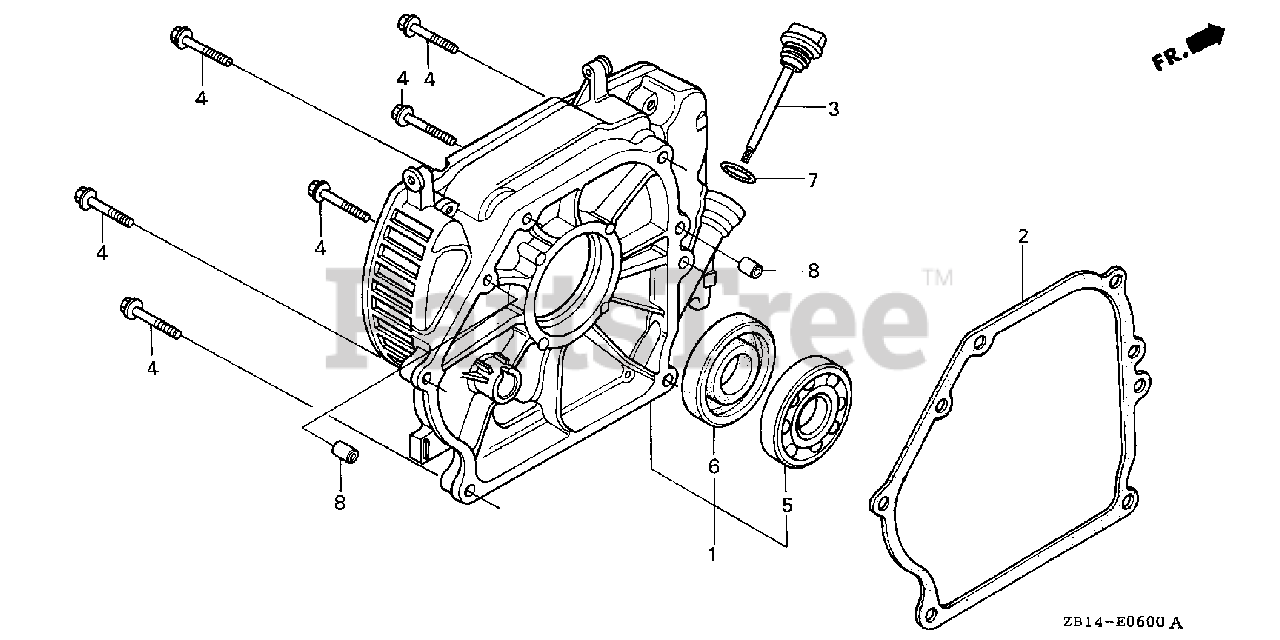

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZB0-020

COVER ASSY., CRANKCASE

$194.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZB0-800

GASKET, CASE COVER

Note: Use from Engine SN 1209737.

$

$

Not available

2

Honda 11381-ZE0-800

SEE PART DETAILS - SUP; GASKET, CASE COVER

Note: Use up to Engine SN 1209736.

$9.49

$

In Stock, only 2 left!

0

2

Honda 11381-ZH7-800

SEE PART DETAILS - PRI; GASKET, CASE COVER

Note: Use up to Engine SN 1209736.

$9.49

$

In Stock, only 1 left!

0

3

Honda 15620-ZB2-000

CAP, OIL FILLER

$13.99

$

Usually ships in 3-6 days

0

4

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, only 3 left!

0

5

Honda 91001-878-003

BEARING, RADIAL BALL (62/22)

$37.99

$

In Stock, only 1 left!

0

6

Honda 91203-ZE0-003

SEE PART DETAILS - SUP; OIL SEAL (22X41X6)
(Superseded to 91203-ZE0-013)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 91203-ZE0-013

SEE PART DETAILS - PRI; OIL SEAL (22X41X6)

$10.99

$

Usually ships in 3-6 days

0

7

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

8

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0
