EG1000 A (G150) - Honda Generator, Made in Japan (SN: G150-1005695 - G150-9999999) FRAME BED Parts Diagram

Generator, Made in Japan

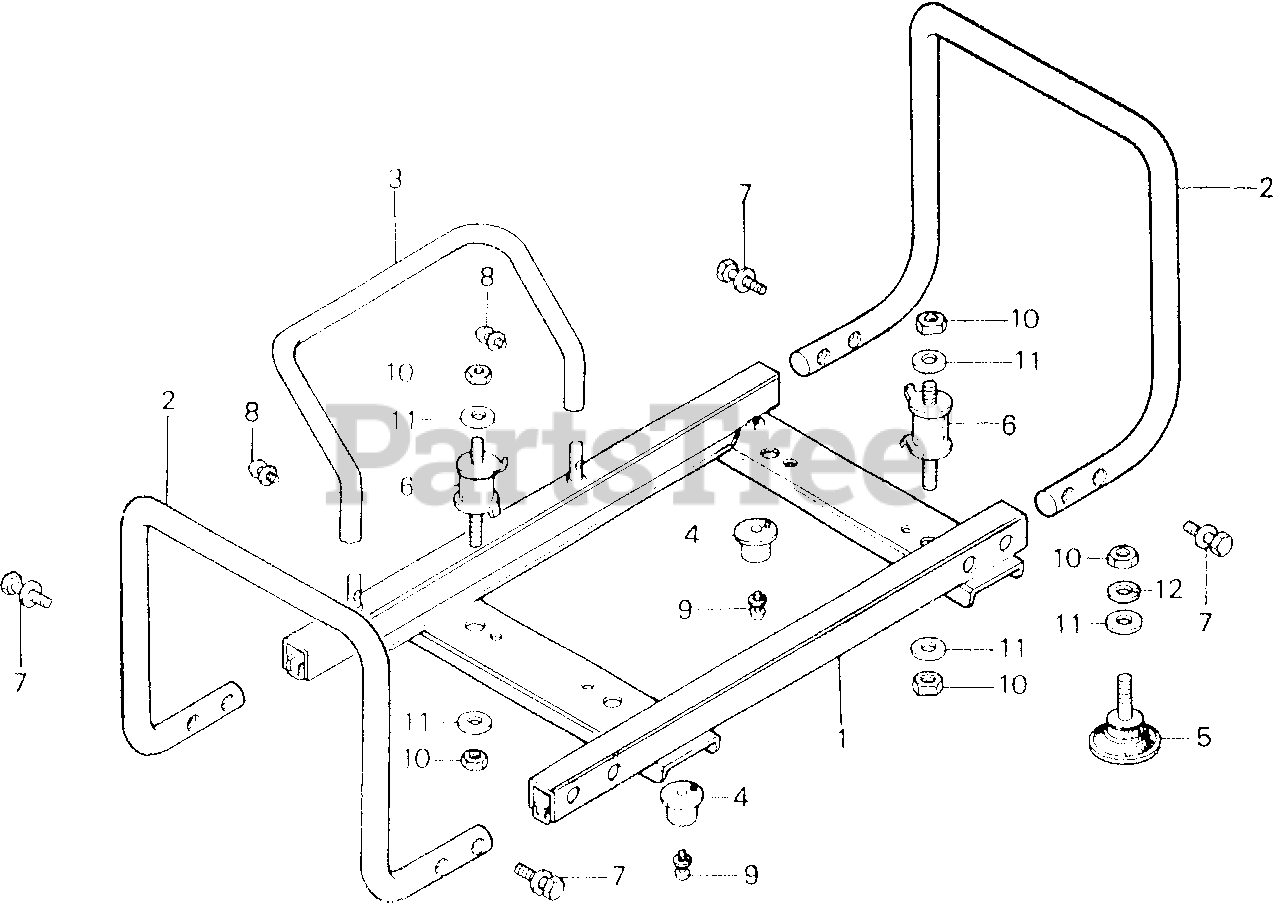

FRAME BED Parts Diagram

  • Title

1

Honda 50311-875-010

BED, FRAME Use up to Frame SN 1382074.

$

$

Not available

2

Honda 50312-875-000

FRAME, SIDE Use up to Frame SN 1382074.

$

$

Not available

3

Honda 50315-875-010

PIPE, GUARD Use up to Frame SN 1382074.

$

$

Not available

4

Honda 60407-812-000

SEE PART DETAILS - PRI; RUBBER (LOWER) Use up to Frame SN 1382074.
(Superseded to 60407-812-001)

$20.99

$

Usually ships in 3-6 days

0

5

Honda 68320-871-013

SEE PART DETAILS - PRI; RUBBER (LOWER)

$

$

Not available

6

Honda 68311-YB3-K80

SEE PART DETAILS - PRI; RUBBER, ENGINE MOUNTING Use up to Frame SN 1382074.

$7.99

$

In Stock, only 1 left!

0

7

Honda 93481-08020-00

SEE PART DETAILS - SUP; BOLT-WASHER (8X20) Use up to Frame SN 1382074.

$

$

Currently unavailable

8

Honda 93891-06012-00

SEE PART DETAILS - PRI; SCREW-WASHER (6X12) Use up to Frame SN 1382074.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 93892-05010-00

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) Use up to Frame SN 1382074.

$0.99

$

Usually ships in 3-6 days

0

10

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

Note: Use up to Frame SN 1382074.

$1.99

$

In Stock, Qty 6

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: Use from Frame SN 1382075.

$1.49

$

In Stock, Qty 20+

0

11

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1382074.

$1.49

$

In Stock, Qty 20+

0

12

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

Note: Use up to Frame SN 1382074.

$1.49

$

Usually ships in 3-6 days

0
