EG1000 A (G150) - Honda Generator, Made in Japan (SN: G150-1005695 - G150-9999999) FLYWHEEL + POINTS Parts Diagram

Generator, Made in Japan

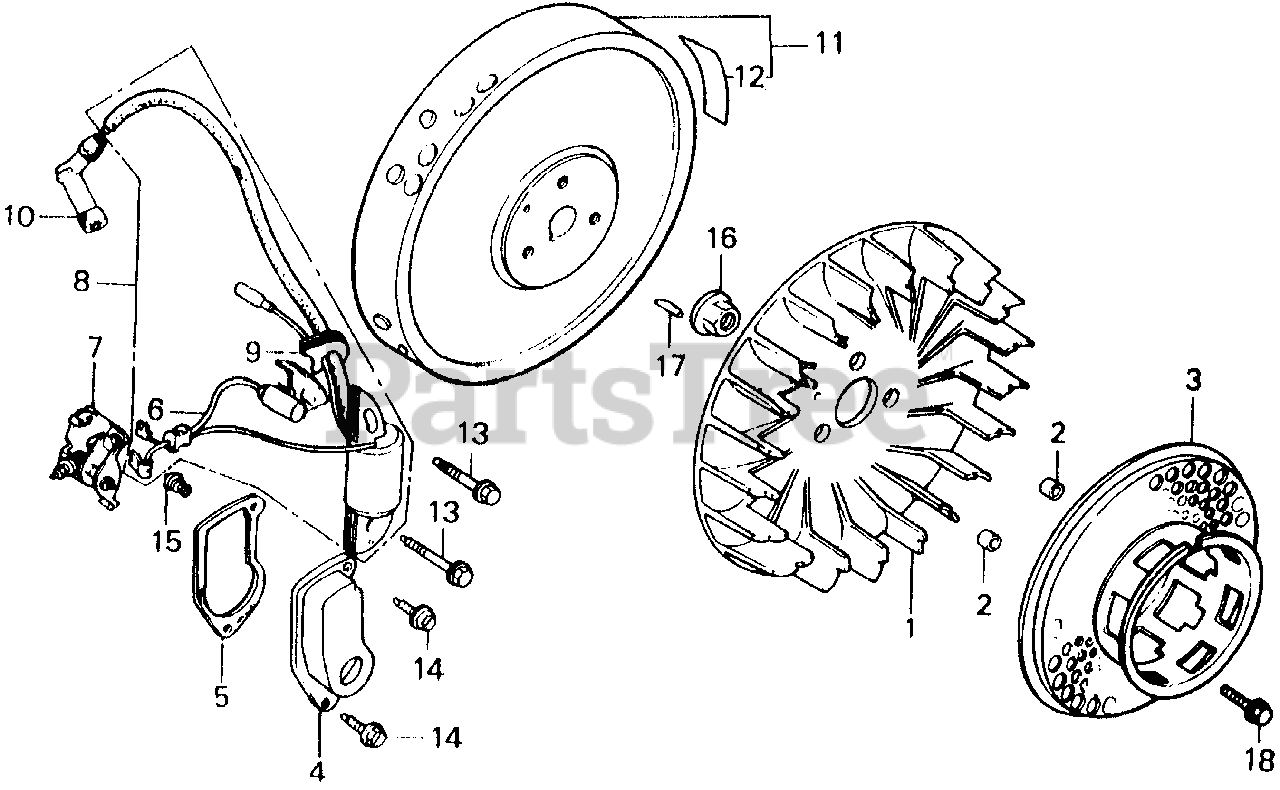

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-887-020

SEE PART DETAILS - SUP; FAN, COOLING

$

$

Not available

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-887-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$30.99

$

Usually ships in 3-6 days

0

4

Honda 30211-883-000

COVER, POINTS

$

$

Not available

5

Honda 30215-883-306

SEE PART DETAILS - PRI; GASKET, POINT COVER

$

$

Not available

6

Honda 30251-883-003

CONDENSER

Note: Use from Engine SN 1373781.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY.

$33.99

$

Usually ships in 3-6 days

0

8

Honda 30560-887-015

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

$

$

Currently unavailable

8

Honda 30560-887-791

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$

$

Not available

9

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

9

Honda 30563-883-790

SEE PART DETAILS - PRI; GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30700-865-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

11

Honda 31100-887-010

SEE PART DETAILS - SUP; FLYWHEEL

$

$

Currently unavailable

12

Honda 87541-896-000

MARK, FLYWHEEL CAUTION

Note: Use from Engine SN 1436960.

$

$

Not available

13

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

14

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0

18

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
