EG1000 A (G150) - Honda Generator, Made in Japan (SN: G150-1005695 - G150-9999999) CRANKCASE COVER Parts Diagram
Generator, Made in Japan

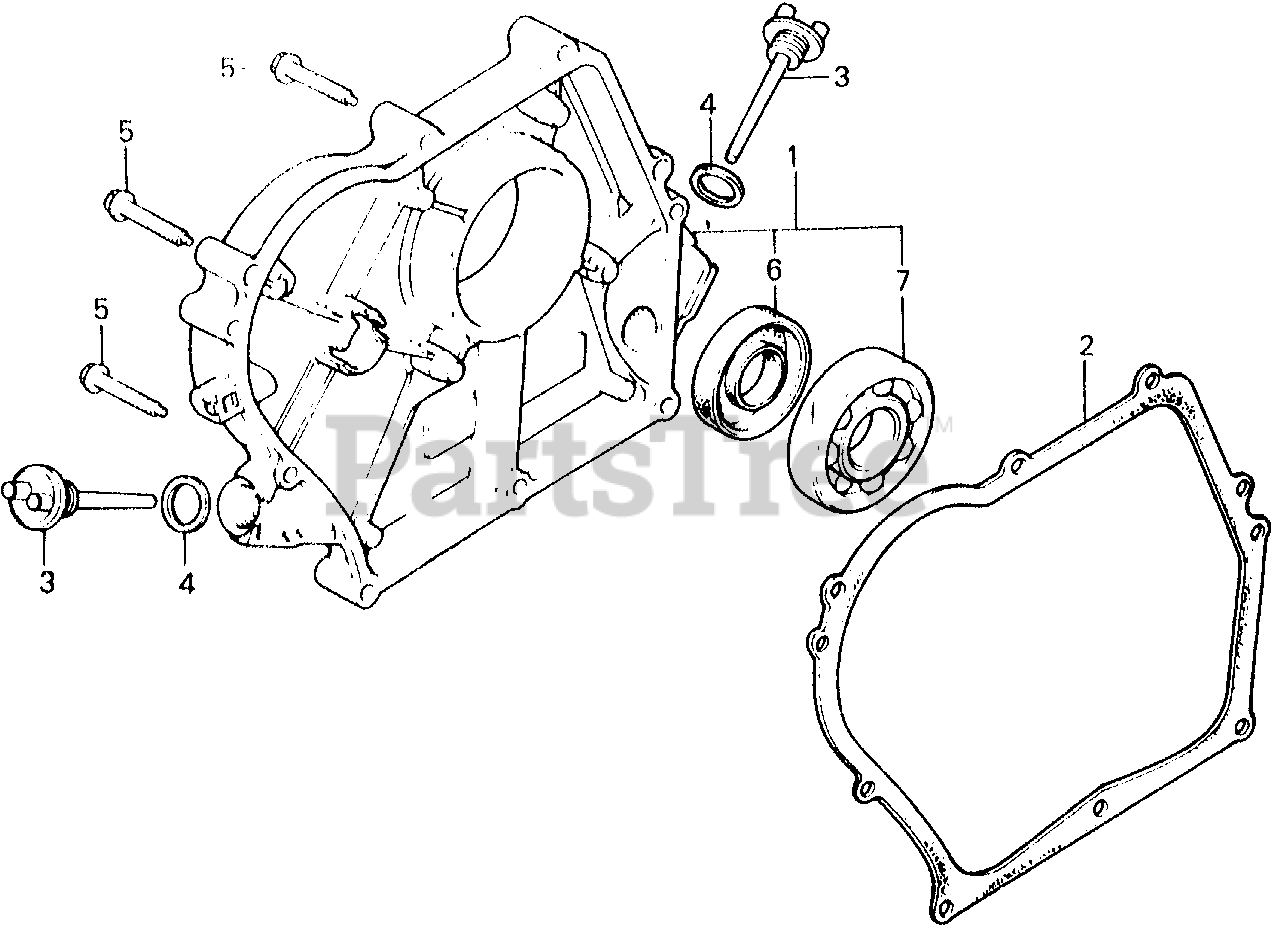

CRANKCASE COVER Parts Diagram
Honda 11300-883-020
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE (S-TYPE)
Note: Use up to Engine SN 1070432.
$
$
Not available
Honda 11300-883-742
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE (HQ-TYPE)
Note: Use from Engine SN 1070433.
$
$
Not available
Honda 11381-883-800
SEE PART DETAILS - PRI; GASKET, COVER
$12.99
$
Usually ships in 3-6 days
Honda 15620-883-010
CAP, OIL
$
$
Not available
Honda 15621-896-010
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP
Note: Use from Engine SN 1391010.
$5.49
$
In Stock, Qty 5
Honda 90017-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)
$3.49
$
In Stock, only 1 left!
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6)
$8.99
$
Usually ships in 3-6 days
$8.99
$
Usually ships in 3-6 days
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)
$24.99
$
In Stock, only 3 left!
