EG1000 A (G150) - Honda Generator, Made in Japan (SN: G150-1005695 - G150-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

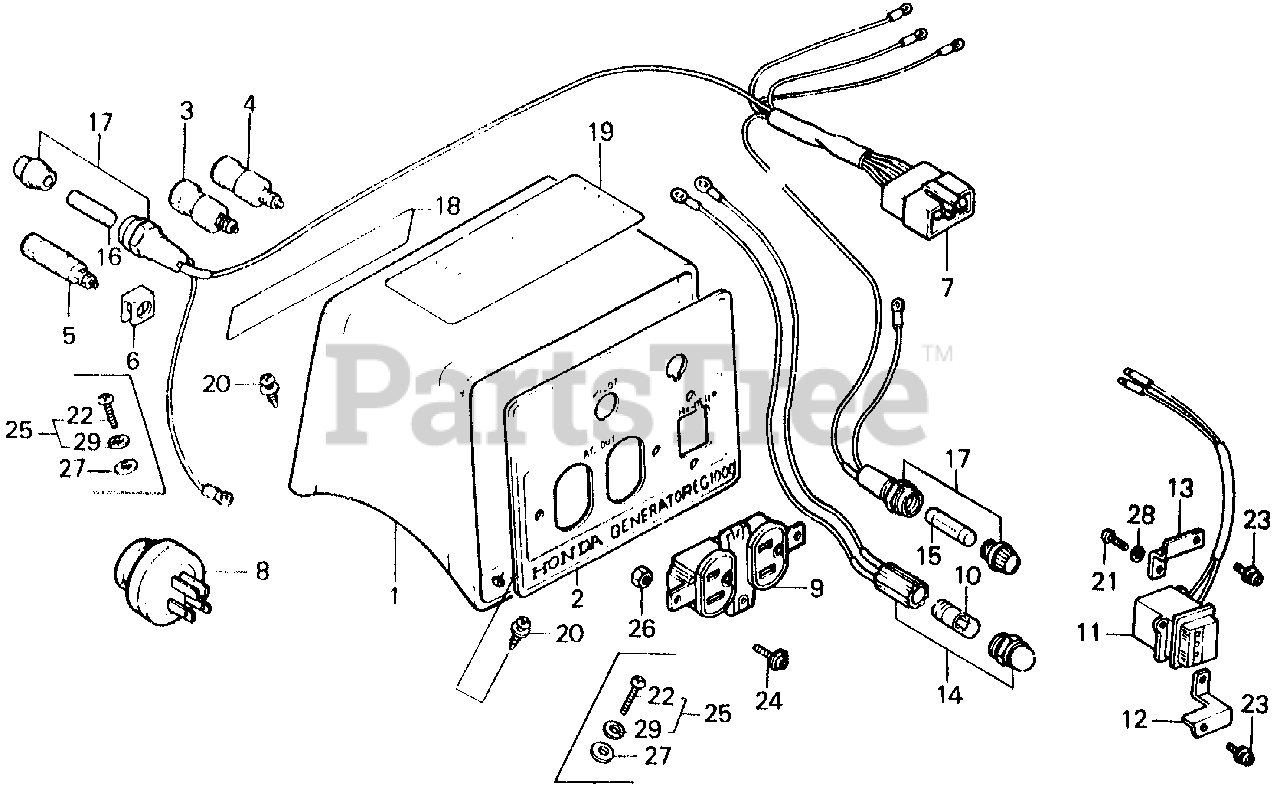

CONTROL BOX Parts Diagram

  • Title

1

Honda 31402-875-013H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 31405-875-671

PANEL, FR.

$

$

Not available

3

Honda 31408-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (+)

$48.99

$

Usually ships in 3-6 days

0

4

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$48.99

$

Usually ships in 3-6 days

0

5

Honda 31428-815-158

SEE PART DETAILS - SUP; TERMINAL ASSY., GROUND

Note: Use up to Frame SN 1239616.

$

$

Currently unavailable

5

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

Note: Use from Frame SN 1239617.

$

$

Currently unavailable

6

Honda 31429-893-003

SEE PART DETAILS - PRI; PLATE, GROUND

$

$

Not available

7

Honda 32134-611-000

CONNECTOR, MALE (6 POLE)

$10.99

$

Usually ships in 3-6 days

0

8

Honda 32310-812-640

PLUG ASSY., RECEPTACLE

$8.99

$

Usually ships in 3-6 days

0

9

Honda 32330-839-158

SEE PART DETAILS - SUP; RECEPTACLE (15A 125V)

Note: Use up to Frame SN 1347484.

$

$

Currently unavailable

9

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$84.99

$

Usually ships in 3-6 days

0

10

Honda 34909-815-158

SEE PART DETAILS - SUP; BULB, DASH (24V3W)

Note: Use up to Frame SN 1239616.

$

$

Currently unavailable

10

Honda 34909-880-000

SEE PART DETAILS - PRI; BULB (24V2W)

$9.49

$

Usually ships in 3-6 days

0

11

Honda 37500-871-153

METER, FREQUENCY

$

$

Not available

12

Honda 37501-880-000

HOLDER A, FREQUENCY METER

$

$

Not available

13

Honda 37502-880-000

HOLDER B, FREQUENCY METER

$

$

Not available

14

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 38201-815-605

SEE PART DETAILS - PRI; FUSE (8A)

Note: Use from Frame SN 1257248.

$5.49

$

Usually ships in 3-6 days

0

15

Honda 38201-846-159

SEE PART DETAILS - PRI; FUSE (10A)

Note: Use up to Frame SN 1157960.

$

$

Currently unavailable

15

Honda 38201-846-159

SEE PART DETAILS - PRI; FUSE (10A)

Note: Use from Frame SN 1157961 to 1257247.

$

$

Currently unavailable

16

Honda 38201-880-000

SEE PART DETAILS - PRI; FUSE (15A)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 38211-868-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

18

Honda 87535-875-670

MARK, D.C. OUTPUT

$

$

Currently unavailable

19

Honda 87551-875-670

PLATE A, DESCRIPTION

$

$

Currently unavailable

20

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 1262007.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

22

Honda 93500-05016-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

Note: Use up to Frame SN 1128422.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93892-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 93892-05016-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X16)

Note: Use from Frame SN 1128423 to 1262006.

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94101-05800

WASHER, PLAIN (5MM)

Note: Use up to Frame SN 1262006.

$1.49

$

In Stock, only 2 left!

0

28

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM)

Note: Use up to Frame SN 1128422.

$1.49

$

Usually ships in 3-6 days

0
