EG1000 A (G150) - Honda Generator, Made in Japan (SN: G150-1005695 - G150-9999999) ALTERNATOR Parts Diagram

Generator, Made in Japan

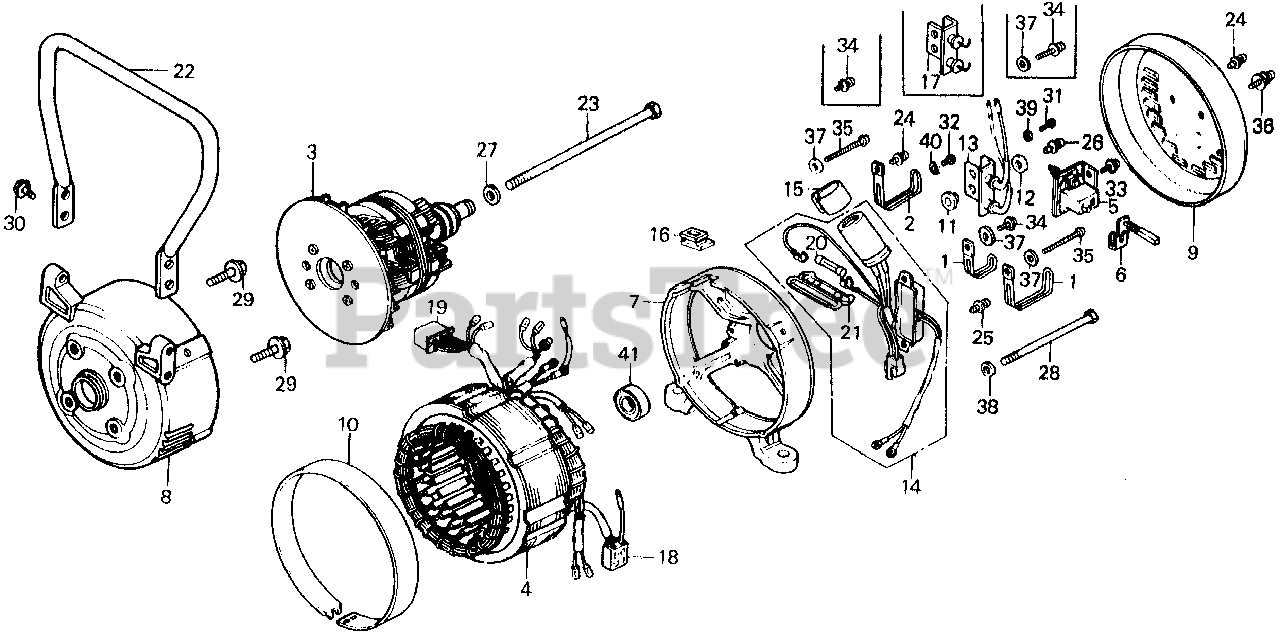

ALTERNATOR Parts Diagram

  • Title

1

Honda 30564-871-003

CLAMP A, WIRE

$11.99

$

Usually ships in 3-6 days

0

2

Honda 30564-871-601

CLAMP B, WIRE

Note: Use from Frame SN 1128423.

$8.49

$

Usually ships in 3-6 days

0

3

Honda 31104-875-033

SEE PART DETAILS - PRI; ROTOR

$

$

Not available

4

Honda 31105-875-168

SEE PART DETAILS - PRI; STATOR ASSY.

$

$

Not available

5

Honda 31106-868-158

HOLDER, BRUSH

$64.99

$

Usually ships in 3-6 days

0

6

Honda 31107-868-158

BRUSH

$23.99

$

Usually ships in 3-6 days

0

7

Honda 31108-875-013H

SEE PART DETAILS - SUP; HOUSING, RR. *R8* (BRIGHT RED)

Note: Use up to Frame SN 1262006.

$

$

Currently unavailable

7

Honda 31108-875-325H

SEE PART DETAILS - PRI; HOUSING, RR. *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Frame SN 1262007.

$

$

Currently unavailable

8

Honda 31109-871-003H

HOUSING, FR. *R8* (BRIGHT RED)

Note: Use up to Frame SN 1072637.

$

$

Not available

8

Honda 31109-871-013H

HOUSING, FR. *R8* (BRIGHT RED)

Note: Use from Frame SN 1072638 to 1262006.

$

$

Not available

8

Honda 31109-871-315H

HOUSING, FR. *R8* (BRIGHT RED)

Note: Use from Frame SN 1262007.

$

$

Not available

9

Honda 31113-871-158H

COVER, GENERATOR END *R8* (BRIGHT RED)

$

$

Not available

10

Honda 31127-875-158H

COVER, STATOR *R8* (BRIGHT RED)

$

$

Not available

11

Honda 31133-815-158

BUSH, INSULATING

Note: Use up to Frame SN 1239616.

$

$

Not available

11

Honda 31706-880-000

BUSH, INSULATING

Note: Use from Frame SN 1239617.

$8.49

$

Usually ships in 3-6 days

0

12

Honda 31134-815-158

WASHER, INSULATING

Note: Use up to Frame SN 1239616.

$

$

Not available

12

Honda 31707-880-000

WASHER, INSULATING

Note: Use from Frame SN 1239617.

$

$

Not available

13

Honda 31135-846-178

DIODE ASSY.

Note: Use up to Frame SN 1239616.

$

$

Not available

14

Honda 31410-871-003

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use from Frame SN 1048913 to 1128422.

$

$

Currently unavailable

14

Honda 31410-871-013

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use from Frame SN 1128423.

$

$

Currently unavailable

14

Honda 31410-871-158

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use up to Frame SN 1048912.

$

$

Currently unavailable

14

Honda 31410-871-305

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use up to Frame SN 1048912.

$

$

Currently unavailable

14

Honda 31410-871-315

SEE PART DETAILS - PRI; REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

Note: Use up to Frame SN 1048912.

$

$

Not available

15

Honda 31430-842-158

SEE PART DETAILS - PRI; HOLDER B

$

$

Not available

16

Honda 31472-871-158

GROMMET

$

$

Not available

17

Honda 31705-875-003

DIODE, D.C. (NOT AVAILABLE)

Note: Use from Frame SN 1239617.

$

$

Currently unavailable

18

Honda 32111-086-010

CONNECTOR, FEMALE (4 POLE)

$

$

Currently unavailable

19

Honda 32135-611-000

CONNECTOR, FEMALE (6 POLE)

$14.99

$

Usually ships in 3-6 days

0

20

Honda 32342-871-000

FUSE (2.5A)

Note: Use from Frame SN 1128423.

$

$

Currently unavailable

21

Honda 38211-842-159

HOLDER, FUSE

Note: Use from Frame SN 1128423.

$

$

Not available

22

Honda 68110-871-000

HANDLE, CARRY (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 90021-875-000

BOLT, HEX. (5/16X136)

$

$

Not available

24

Honda 90031-875-003

SCREW, TAPPING (5X12)

Note: Use from Frame SN 1262007.

$2.99

$

In Stock, only 4 left!

0

25

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 1262007.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90033-875-003

SCREW, TAPPING (5X16)

Note: Use from Frame SN 1262007.

$3.49

$

Usually ships in 3-6 days

0

27

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

28

Honda 31103-875-003

BOLT, HEX. (6X115)

Note: Use from Frame SN 1042788.

$

$

Not available

28

Honda 92000-06115-0H

BOLT, HEX. (6X115) (NOT AVAILABLE)

Note: Use up to Frame SN 1042787.

$

$

Currently unavailable

29

Honda 93481-08025-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X25)

Note: Use up to Frame SN 1072637.

$

$

Currently unavailable

29

Honda 93481-08032-08

BOLT-WASHER (8X35) (NOT AVAILABLE)

Note: Use from Frame SN 1072638.

$

$

Currently unavailable

30

Honda 93482-08025-08

BOLT-WASHER (8X25) (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93500-05010-3J

SCREW, PAN (5X10) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 93892-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

Note: Use up to Frame SN 1048912.

$1.49

$

Usually ships in 3-6 days

0

33

Honda 93892-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

Note: Use from Frame SN 1048913 to 1262006.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93892-05016-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X16)

Note: Use up to Frame SN 1048912.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93892-05016-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X16)

Note: Use from Frame SN 1048913 to 1262006.

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93500-05060-0H

SCREW, PAN (5X60) (NOT AVAILABLE)

$

$

Currently unavailable

36

Honda 93893-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

Note: Use up to Frame SN 1262006.

$1.99

$

Usually ships in 3-6 days

0

37

Honda 94101-05800

WASHER, PLAIN (5MM)

Note: Use up to Frame SN 1262006.

$1.49

$

In Stock, only 2 left!

0

37

Honda 94101-05800

WASHER, PLAIN (5MM)

Note: Use from Frame SN 1262007.

$1.49

$

In Stock, only 2 left!

0

38

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

39

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0
