EG-7601 E - Echo Generator Generator, Idle Ctrl Parts Diagram

Generator

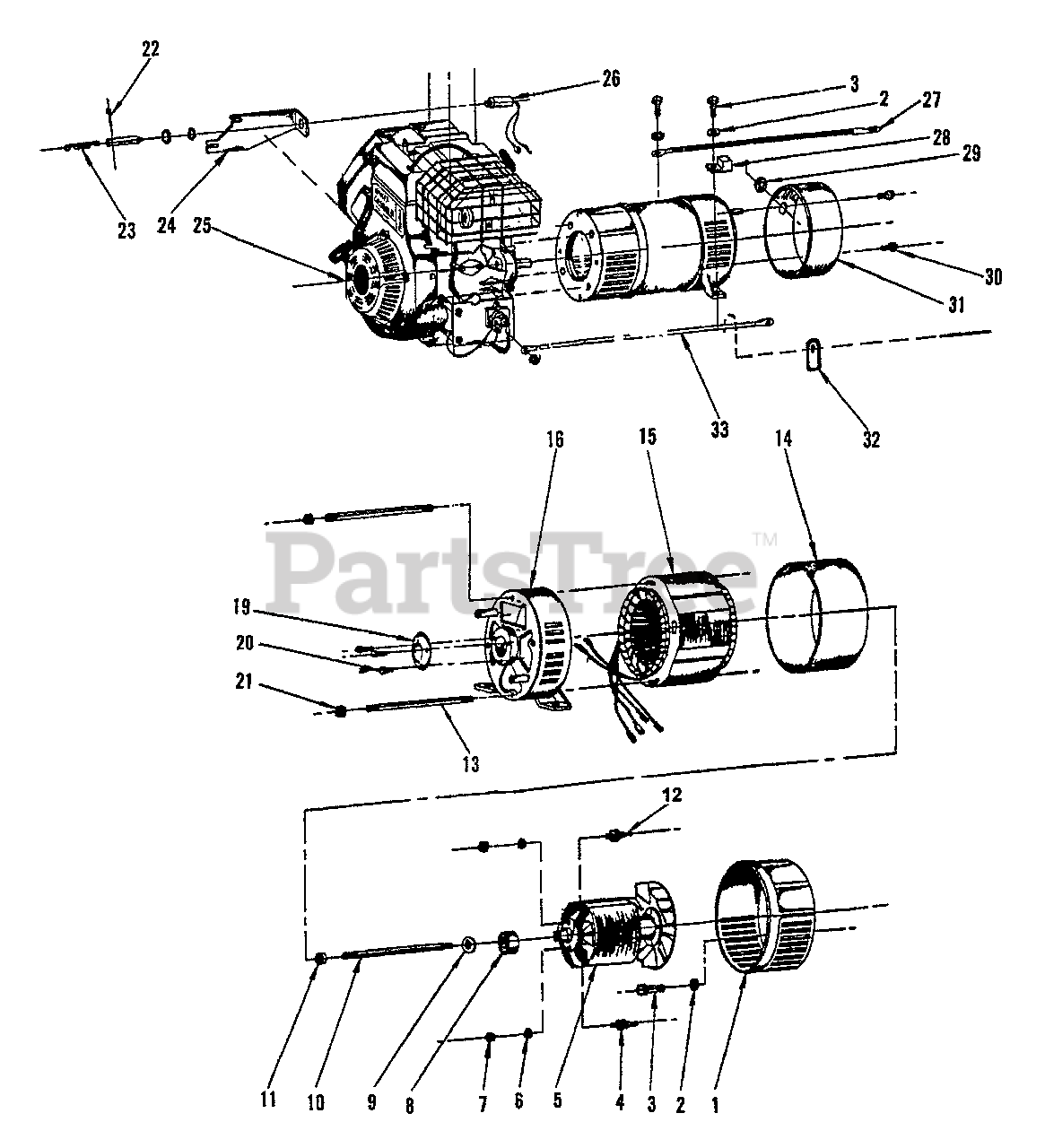

Generator, Idle Ctrl Parts Diagram

  • Title

1

Echo 240411008

DRIVE END ADAPTER CASTING
(Superseded to Discontinued)

$

$

Not available

2

Echo 240015006

LOCKWASHER - 3/8"
(Superseded to Discontinued)

$

$

Not available

3

Echo 240017030

SCREW - 3/8-16 X 1"
(Superseded to Discontinued)

$

$

Not available

4

------------------

DIODE

$

$

Not available

5

Echo 240440105

ROTOR ASSY
(Superseded to Discontinued)

$

$

Not available

6

------------------

LOCKWASHER, DIODE

$

$

Not available

7

------------------

NUT, DIODE

$

$

Not available

8

------------------

BEARING

$

$

Not available

9

Echo 240015002

LOCKWASHER - 5/16"
(Superseded to Discontinued)

$

$

Not available

10

Echo 240411045

ROTOR THRU BOLT
(Superseded to Discontinued)

$

$

Not available

11

Echo 240461100

NUT - 5/16-24 -- KEPS
(Superseded to Discontinued)

$

$

Not available

12

------------------

DIODE

$

$

Not available

13

Echo 240411046

BOLT, STATOR
(Superseded to Discontinued)

$

$

Not available

14

Echo 240410028

BAND, COVER
(Superseded to Discontinued)

$

$

Not available

15

Echo 240440205

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo 240411001

CASTING, BEARING
(Superseded to Discontinued)

$

$

Not available

19

Echo 240410005

COVER, BEARING
(Superseded to Discontinued)

$

$

Not available

20

Echo 240410001

SCREW - 10-24 X 1/2"
(Superseded to Discontinued)

$

$

Not available

21

Echo 240016005

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

22

Echo 240017064

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

23

Echo 240034119

SPRING, ECHO-MIZER
(Superseded to Discontinued)

$

$

Not available

24

Echo 240034117

BRACKET, SOLENOID
(Superseded to Discontinued)

$

$

Not available

25

------------------

COMMAND, KOHLER 14HP

$

$

Not available

26

Echo 248034103

SOLENOID ASSY

$203.99

$

Usually ships in 2-4 days

0

27

Echo 240020080

CABLE, BATTERY - ( - )
(Superseded to Discontinued)

$

$

Not available

28

Echo 240010001

LUG, GROUND - 1/0-14 CU/AL
(Superseded to Discontinued)

$

$

Not available

29

Echo 240020094

GROMMET
(Superseded to Discontinued)

$

$

Not available

30

Echo 240410022

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

31

Echo 240410006

COVER, END
(Superseded to Discontinued)

$

$

Not available

32

Echo 240021018

LABEL - BATTERY (+)
(Superseded to Discontinued)

$

$

Not available

33

Echo 240020117

CABLE, BATTERY - ( + )
(Superseded to Discontinued)

$

$

Not available
