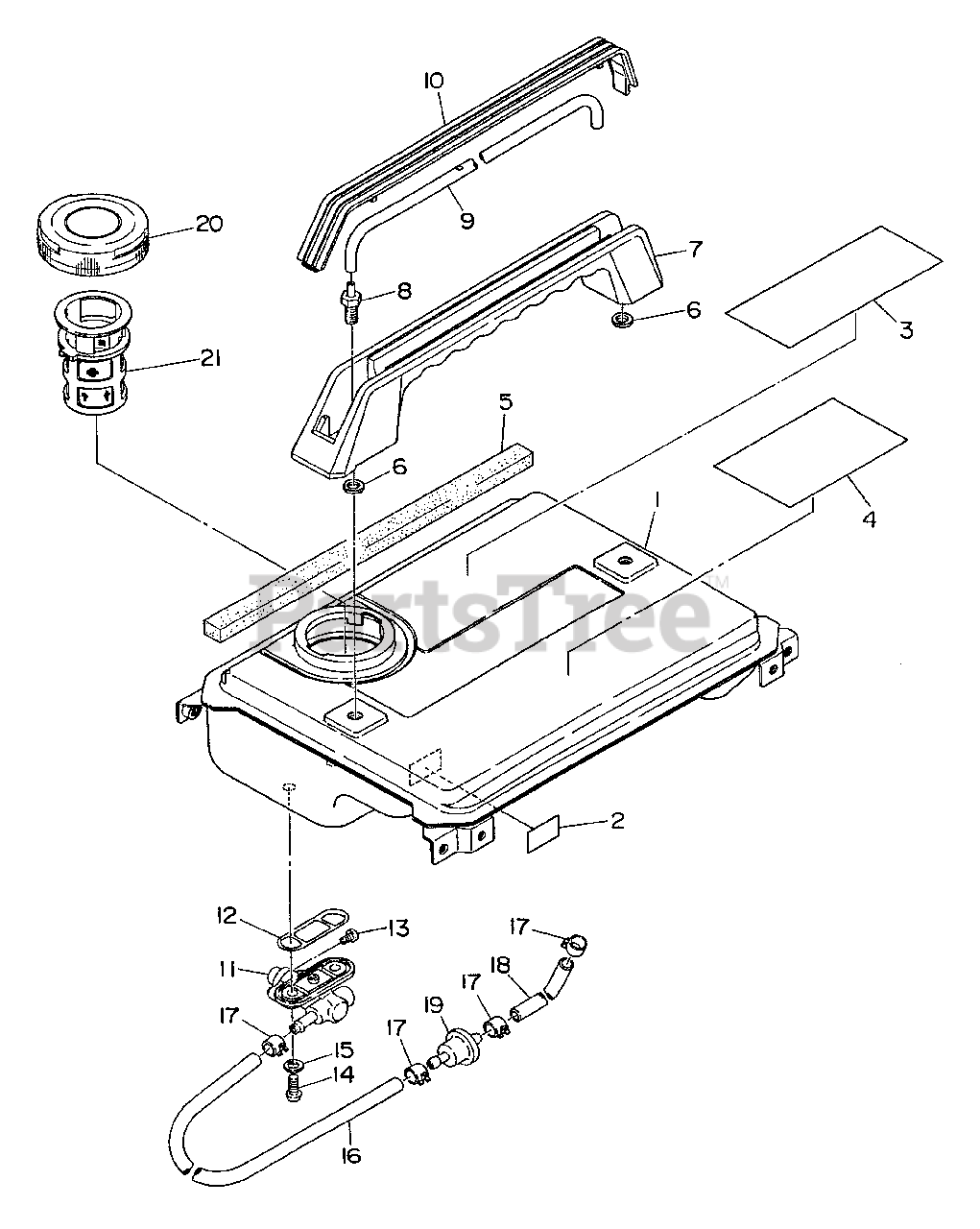

EG-650 - Echo Generator Fuel System, Handle Parts Diagram

Generator

Fuel System, Handle Parts Diagram

  • Title

1

Echo 103586120101

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103586540113

FELT, tank
(Superseded to Discontinued)

$

$

Not available

3

Echo 100732003221

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

4

Echo 103909900103

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available

5

Echo 103586540203

SEAL, TANK
(Superseded to Discontinued)

$

$

Not available

6

Echo 103586550103

O-RING
(Superseded to Discontinued)

$

$

Not available

7

Echo 103586510121

HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 103586530211

BOLT, TANK
(Superseded to Discontinued)

$

$

Not available

9

Echo 103586570103

PIPE - BREATHER
(Superseded to Discontinued)

$

$

Not available

10

Echo 103586520113

COVER, HANDLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 100642004702

FILTER, FUEL
(Superseded to Discontinued)

Note: Includes ITEM 12

$

$

Not available

12

Echo 100642004630

GASKET
(Superseded to Discontinued)

$

$

Not available

13

Echo 100115040010

BOLT
(Superseded to Discontinued)

$

$

Not available

14

Echo 100043106140

SCREW
(Superseded to Discontinued)

$

$

Not available

15

Echo 100037106000

GASKET - FELT
(Superseded to Discontinued)

$

$

Not available

16

Echo 100851040000

RUBBER PIPE (4.5 dia. X 11 dia. X 160mm)
(Superseded to Discontinued)

$

$

Not available

17

Echo 100561080020

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

18

Echo 100851040000

RUBBER PIPE (4.5 dia. X 11 dia. X 160mm)
(Superseded to Discontinued)

$

$

Not available

19

Echo 103586280101

FILTER, FUEL

$5.99

$

Usually ships in 2-4 days

0

20

Echo 100430430041

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo 100641360020

FILTER, FUEL

$4.99

$

Usually ships in 2-4 days

0
