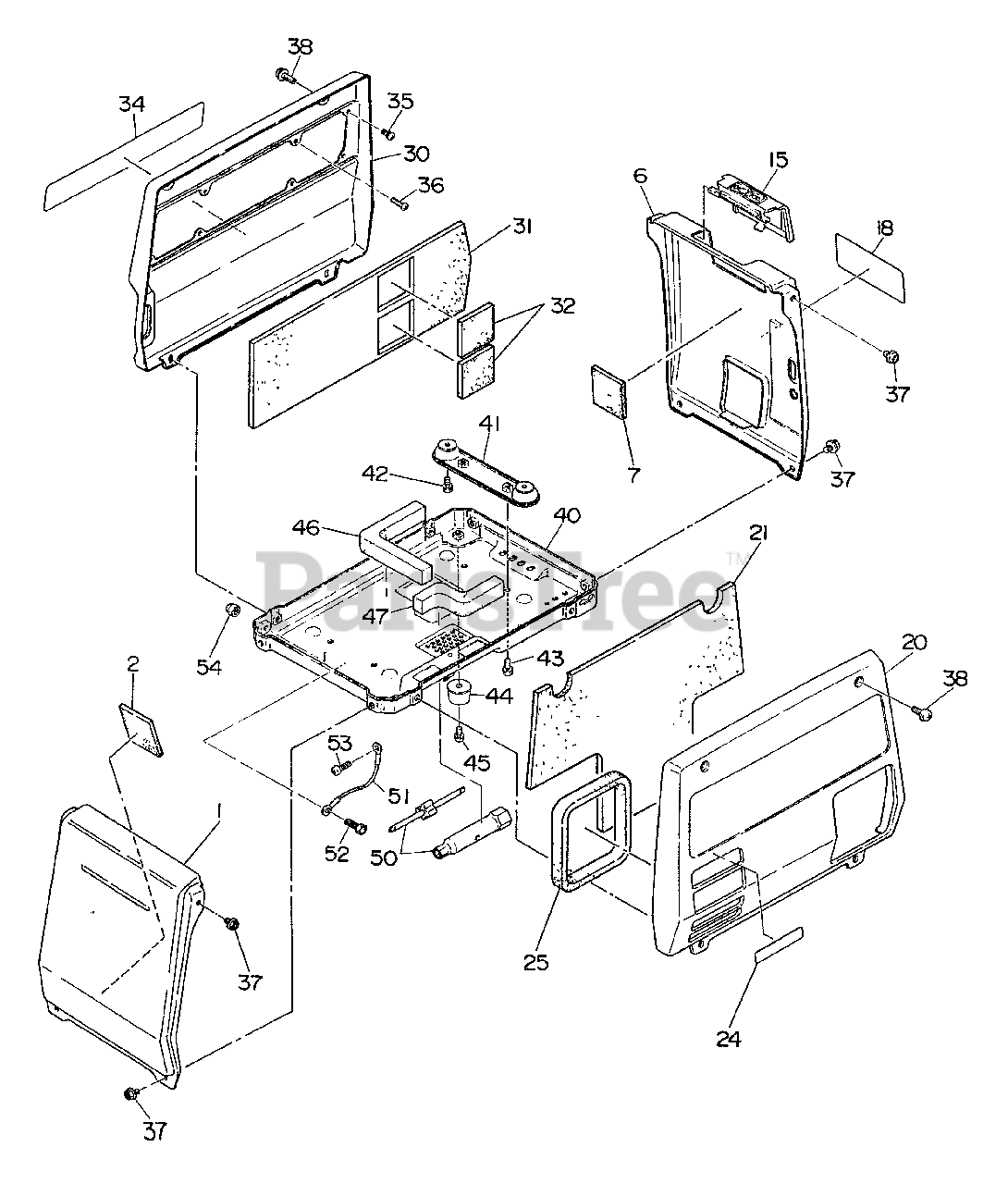

EG-650 - Echo Generator External Covers Parts Diagram

Generator

External Covers Parts Diagram

  • Title

1

Echo 103585022111

FRONT COVER ASSY
(Superseded to Discontinued)

Note: Includes ITEM 2

$

$

Not available

2

Echo 103585540103

RUBBER PLATE 1
(Superseded to Discontinued)

$

$

Not available

6

Echo 103835070101

COVER ASSY - REAR
(Superseded to Discontinued)

Note: Includes ITEM 7

$

$

Not available

7

Echo 103585540103

RUBBER PLATE 1
(Superseded to Discontinued)

$

$

Not available

15

Echo 103835510103

COVER
(Superseded to Discontinued)

$

$

Not available

18

Echo 103839311303

LABEL - SPEC. for 60Hz-120V
(Superseded to Discontinued)

$

$

Not available

20

Echo 103835111001

SIDE COVER ASSY - RIGHT
(Superseded to Discontinued)

Note: Includes ITEM 21

$

$

Not available

21

Echo 103835530113

SPONGE (R)
(Superseded to Discontinued)

$

$

Not available

24

Echo 103589530403

LABEL - SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 103835550103

SEAL, EXHAUST
(Superseded to Discontinued)

$

$

Not available

30

Echo 103585350701

SIDE COVER ASSY - LEFT
(Superseded to Discontinued)

Note: Includes item 31 and 32

$

$

Not available

31

Echo 103835530413

SPONGE (L)
(Superseded to Discontinued)

$

$

Not available

32

Echo 103585540103

RUBBER PLATE 1
(Superseded to Discontinued)

$

$

Not available

34

Echo 103839311203

LABEL - TRADE MARK
(Superseded to Discontinued)

$

$

Not available

35

Echo 100043404100

SCREW
(Superseded to Discontinued)

$

$

Not available

36

Echo 100150040031

SCREW -- TAPPING
(Superseded to Discontinued)

$

$

Not available

37

Echo 100110060060

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

38

Echo 103585520103

FLANGE SCREW
(Superseded to Discontinued)

$

$

Not available

40

Echo 103583060151

BASE PLATE ASSY
(Superseded to Discontinued)

$

$

Not available

41

Echo 103583010111

MOUNT ASSY - A
(Superseded to Discontinued)

$

$

Not available

42

Echo 100011406120

BOLT
(Superseded to Discontinued)

$

$

Not available

43

Echo 100011605100

BOLT
(Superseded to Discontinued)

$

$

Not available

44

Echo 103583020101

MOUNT ASSY - B
(Superseded to Discontinued)

$

$

Not available

45

Echo 100043505100

SCREW
(Superseded to Discontinued)

$

$

Not available

46

Echo 103833610103

SEAL 1(BASE)
(Superseded to Discontinued)

$

$

Not available

47

N/A

LABEL - GENERATOR

$

$

Not available

50

Echo 103589030110

TOOL KIT
(Superseded to Discontinued)

$

$

Not available

51

Echo 103583510201

GROUND LEAD KIT
(Superseded to Discontinued)

$

$

Not available

52

Echo 100016506120

BOLT
(Superseded to Discontinued)

$

$

Not available

53

Echo 100043106080

SCREW
(Superseded to Discontinued)

$

$

Not available

54

Echo 100024306001

NUT - CROWN
(Superseded to Discontinued)

$

$

Not available
