EG-5600 E - Echo Generator Electrical Panel Parts Diagram

Generator

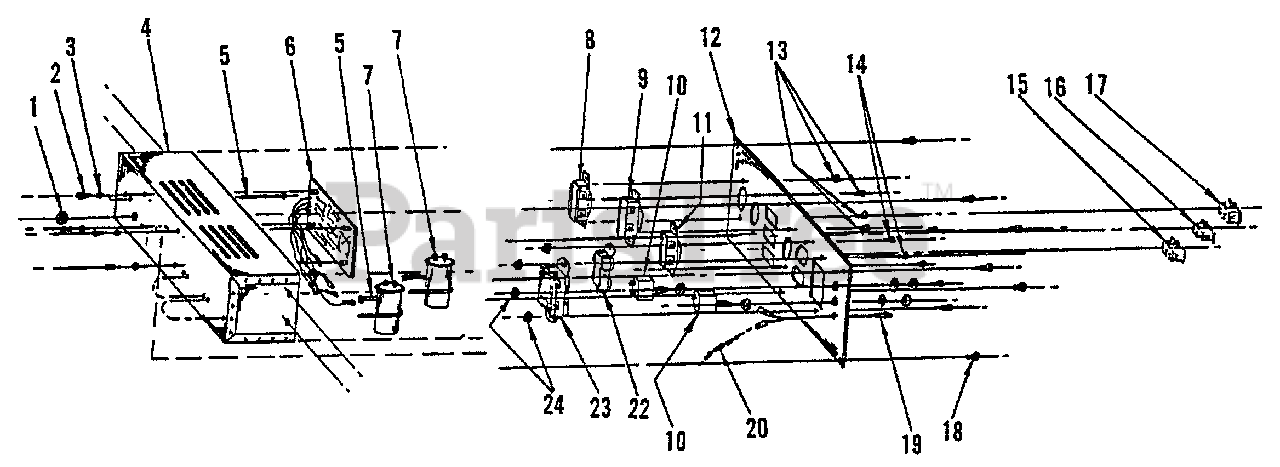

Electrical Panel Parts Diagram

  • Title

1

Echo 240020090

GROMMET
(Superseded to Discontinued)

$

$

Not available

2

Echo 240017060

6-32X 1/4 RHS
(Superseded to Discontinued)

$

$

Not available

3

Echo 240015011

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

4

Echo 240028070

BOX, CONTROL
(Superseded to Discontinued)

$

$

Not available

5

Echo 240020070

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

6

Echo 248034010

CIRCUIT, ECHO-MIZER
(Superseded to Discontinued)

$

$

Not available

7

Echo 240420000

CAPACITOR - 50UF 370V

$72.99

$

Usually ships in 2-4 days

0

8

Echo 240008203

LOCK, TWIST 20A/125V/250V
(Superseded to Discontinued)

$

$

Not available

9

Echo 240008201

LOCK, TWIST 20A/240V
(Superseded to Discontinued)

$

$

Not available

10

Echo 240013250

BREAKER, CIRCUIT - 30A/250V
(Superseded to Discontinued)

$

$

Not available

11

Echo 240007301

LOCK, TWIST - 30A/125V
(Superseded to Discontinued)

$

$

Not available

12

Echo 246026009

PANEL SILKSCREEN
(Superseded to Discontinued)

$

$

Not available

13

Echo 240017015

6-32X3/8 RHS
(Superseded to Discontinued)

$

$

Not available

14

Echo 240017005

8-32X3/8 RHS
(Superseded to Discontinued)

$

$

Not available

15

Echo 240027032

SWITCH, ECHO-MISER
(Superseded to Discontinued)

$

$

Not available

16

Echo 240027202

SWITCH, FULL POWER
(Superseded to Discontinued)

$

$

Not available

17

Echo 240027063

SWITCH, IGNITION

$27.99

$

Usually ships in 2-4 days

0

18

Echo 240017001

SCREW - 10-24
(Superseded to Discontinued)

$

$

Not available

19

Echo 240020111

INDICATOR - LOW OIL
(Superseded to Discontinued)

$

$

Not available

20

Echo 248187030

RESISTOR ASSY
(Superseded to Discontinued)

$

$

Not available

22

Echo 240007150

DUPLEX, 15A/125V
(Superseded to Discontinued)

$

$

Not available

23

Echo 240007401

GFCI - 15A/125V
(Superseded to Discontinued)

$

$

Not available

24

Echo 240016003

NUT - 8-32 -- KEPS
(Superseded to Discontinued)

$

$

Not available
