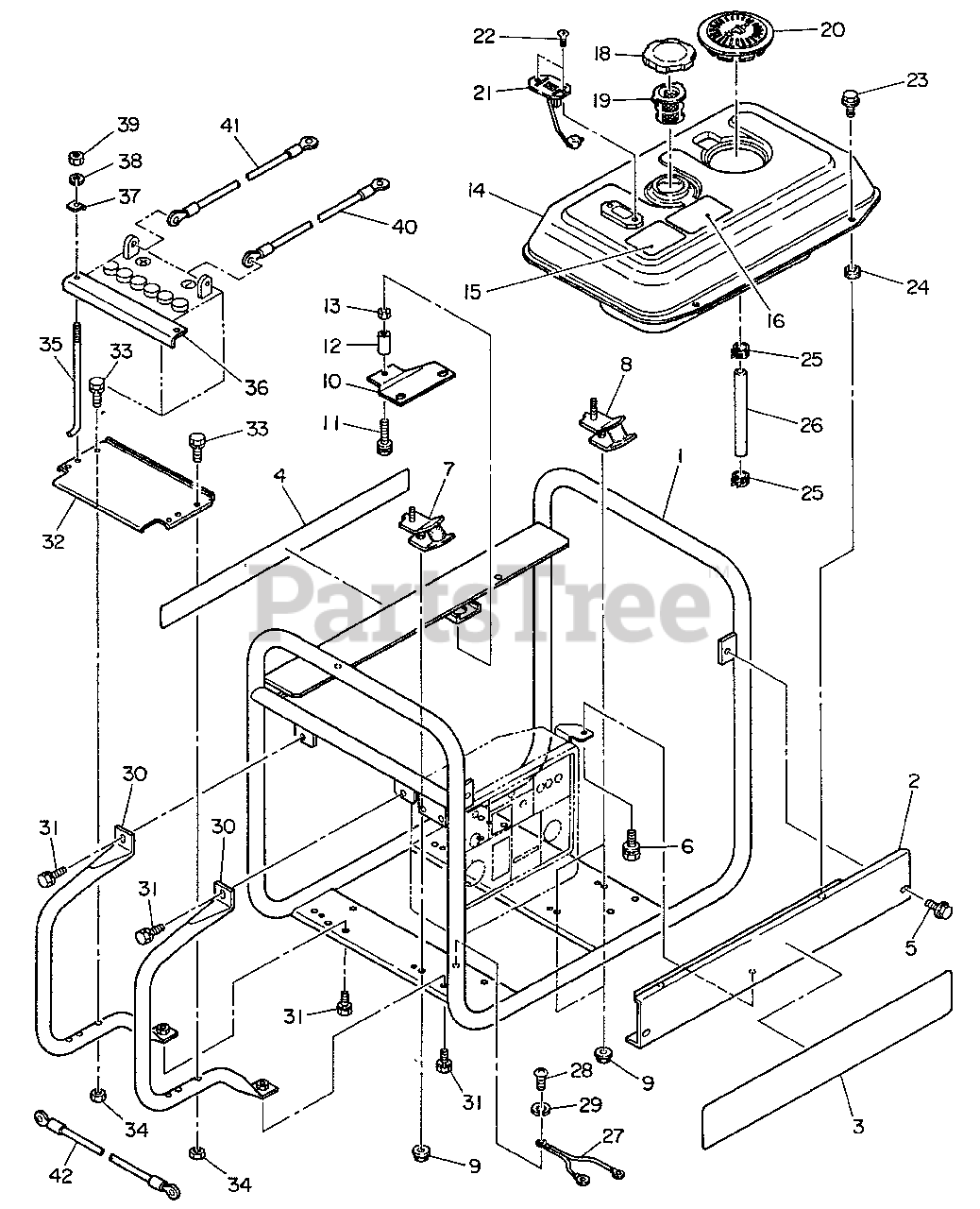

EG-5500 E - Echo Generator Battery, Fuel System, Frame Parts Diagram

Generator

Battery, Fuel System, Frame Parts Diagram

  • Title

1

Echo 103903100101

PIPE FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103903110101

SIDE PLATE ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 103909100103

LABEL - MODEL EG-5500E
(Superseded to Discontinued)

$

$

Not available

4

Echo 103909100203

LABEL - MODEL EG-5500E
(Superseded to Discontinued)

$

$

Not available

5

Echo 100110060080

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

6

Echo 100011406160

BOLT
(Superseded to Discontinued)

$

$

Not available

7

Echo 103525704118

MOUNT, RUBBER
(Superseded to Discontinued)

$

$

Not available

8

Echo 103525704218

MOUNT, RUBBER
(Superseded to Discontinued)

$

$

Not available

9

Echo 100023808000

NUT - 8 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 103905441208

STOPPER PLATE
(Superseded to Discontinued)

$

$

Not available

11

Echo 100011306400

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo 103895439808

SPACER
(Superseded to Discontinued)

$

$

Not available

13

Echo 100021706000

NUT
(Superseded to Discontinued)

$

$

Not available

14

Echo 102246900401

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 103895915808

LABEL - CAUTION -- OPERATION
(Superseded to Discontinued)

$

$

Not available

16

Echo 103909900103

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available

18

Echo 100430430015

CAP ASSY

$17.99

$

Usually ships in 2-4 days

0

19

Echo 100641360010

FILTER, FUEL

$4.99

$

Usually ships in 2-4 days

0

20

Echo 102276600103

COVER
(Superseded to Discontinued)

$

$

Not available

21

Echo 100648000300

FUEL GAUGE ASSY
(Superseded to Discontinued)

$

$

Not available

22

Echo 100145050040

SCREW
(Superseded to Discontinued)

$

$

Not available

23

Echo 103595998808

BOLT - FLANGE
(Superseded to Discontinued)

$

$

Not available

24

Echo 103525432708

WASHER - RUBBER

$4.99

$

Usually ships in 2-4 days

0

25

Echo 100561170010

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

26

Echo 100851110000

RUBBER PIPE (11.5 X 17.5 X 230mm)

$7.49

$

In Stock, only 1 left!

0

27

Echo 103905441508

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 103410050800

SCREW
(Superseded to Discontinued)

$

$

Not available

29

Echo 103320005008

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

30

Echo 103903300101

BATTERY FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

31

Echo 100011408200

BOLT
(Superseded to Discontinued)

$

$

Not available

32

Echo 103893300511

BASE, BATTERY
(Superseded to Discontinued)

$

$

Not available

33

Echo 100011106350

BOLT
(Superseded to Discontinued)

$

$

Not available

34

Echo 100021706000

NUT
(Superseded to Discontinued)

$

$

Not available

35

Echo 103535992108

BOLT
(Superseded to Discontinued)

$

$

Not available

36

Echo 103855438208

BATTERY RETAINER
(Superseded to Discontinued)

$

$

Not available

37

Echo 103855441608

BATTERY SUPPORT
(Superseded to Discontinued)

$

$

Not available

38

Echo 100032006000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

39

Echo 100021706000

NUT
(Superseded to Discontinued)

$

$

Not available

40

Echo 103895445308

BATTERY CORD (-)
(Superseded to Discontinued)

$

$

Not available

41

Echo 103905445408

BATTERY CORD (+)
(Superseded to Discontinued)

$

$

Not available

42

Echo 103905445408

BATTERY CORD (+)
(Superseded to Discontinued)

$

$

Not available
