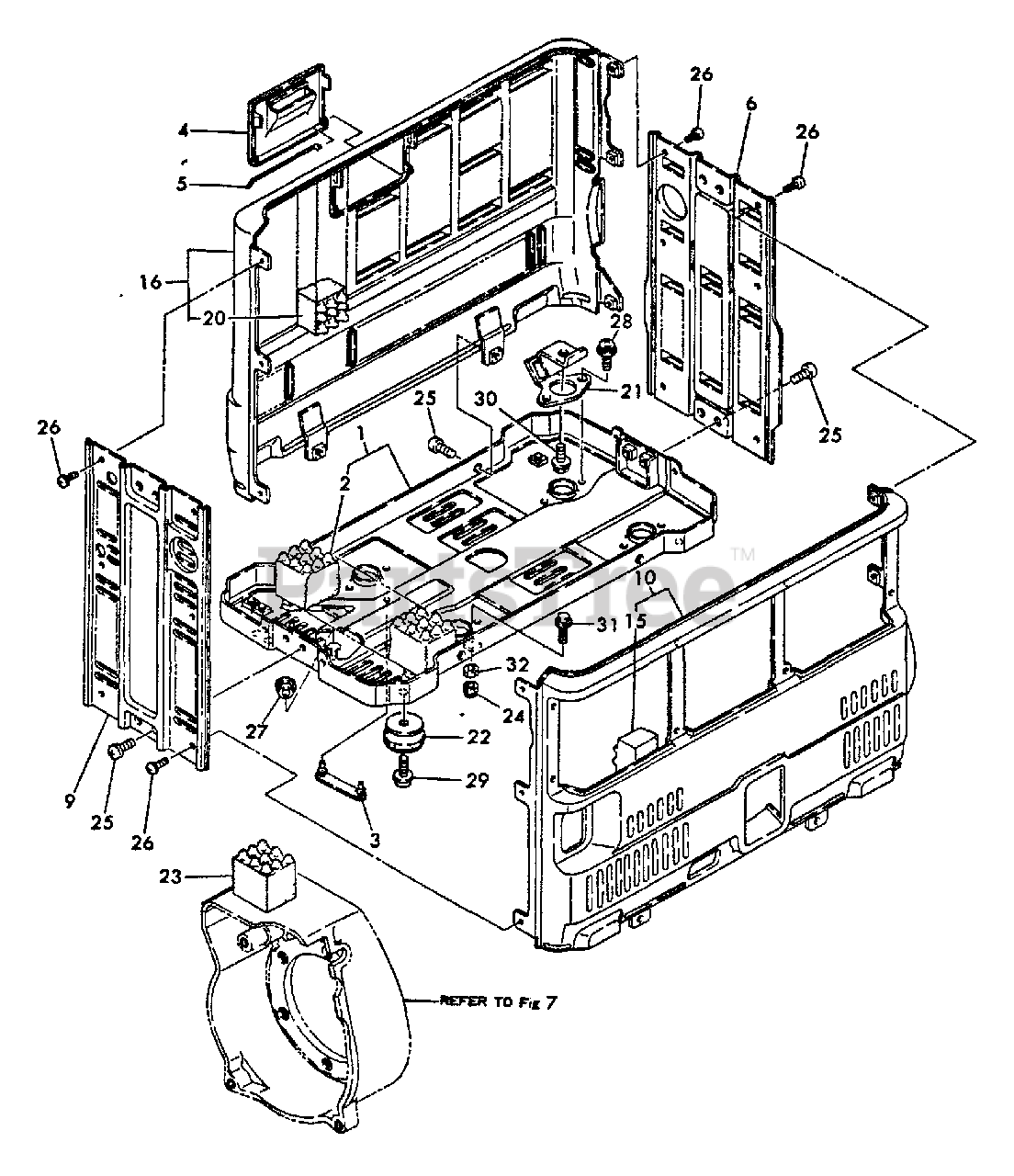

EG-550 - Echo Generator CASE Parts Diagram

Generator

CASE Parts Diagram

  • Title

1

Echo Y18321008040

CASE - BOTTOM
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18321008290

URETHANE FOAM (E)
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18321008050

HOLDER, TOOL
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18321008060

PLUG, BLIND
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18321008070

SPRING, HINGE
(Superseded to Discontinued)

$

$

Not available

6

Echo Y78311008820

SIDE CASE ASSY - RIGHT
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18311008090

CASE - LEFT
(Superseded to Discontinued)

$

$

Not available

10

Echo Y78311008880

FRONT CASE ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo Y18311008270

URETHANE FOAM (C)
(Superseded to Discontinued)

$

$

Not available

16

Echo Y78311008940

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo Y18311008280

URETHANE FOAM (D)
(Superseded to Discontinued)

$

$

Not available

21

Echo Y18321008220

DAMPER (A)
(Superseded to Discontinued)

$

$

Not available

22

Echo Y18321008230

DAMPER (B)
(Superseded to Discontinued)

$

$

Not available

23

Echo Y18321008260

URETHANE FOAM (B)
(Superseded to Discontinued)

$

$

Not available

24

Echo Y18321008810

NUT
(Superseded to Discontinued)

$

$

Not available

25

Echo Y18321008850

SCREW - 6X10

$0.99

$

Usually ships in 2-4 days

0

26

Echo Y18321008860

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

27

Echo Y18372055210

GROMMET
(Superseded to Discontinued)

$

$

Not available

28

Echo Y26022060122

SCREW - 6X12
(Superseded to Discontinued)

$

$

Not available

29

Echo Y26022060122

SCREW - 6X12
(Superseded to Discontinued)

$

$

Not available

30

Echo Y26106080142

BOLT - 8X14 -- PLATED
(Superseded to Discontinued)

$

$

Not available

31

Echo Y26113060162

BOLT - 6X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

32

Echo Y26753060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
