EG-4300 - Echo Generator (SN: 00846 - 99999) Connecting Rod, Piston Parts Diagram

Generator

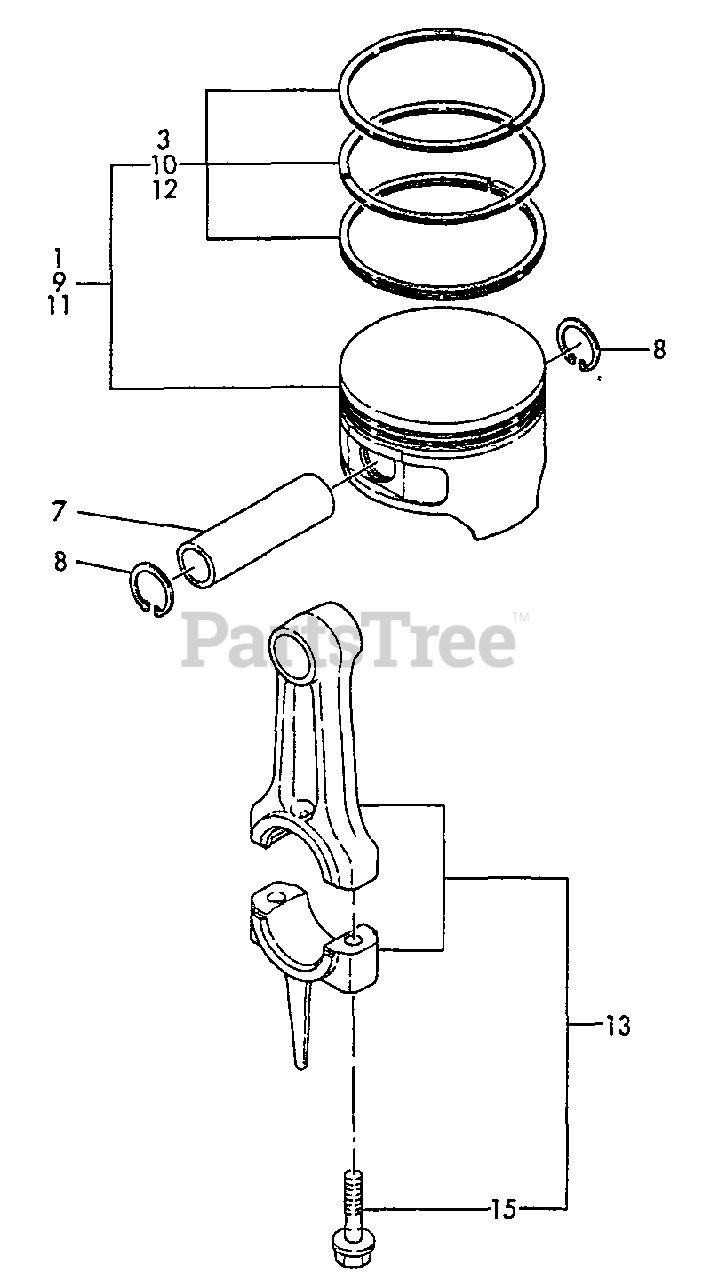

Connecting Rod, Piston Parts Diagram

  • Title

1

Echo Y16091022011

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76091022500

PISTON RING ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16091022300

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

8

Echo Y22252000190

RING, RETAINING - 19
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16091022470

PISTON ASSY O.S.= 0.25
(Superseded to Discontinued)

$

$

Not available

10

Echo Y76091022540

RING ASSY O.S.= 0.25
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16091022480

PISTON ASSY O.S.= 0.5
(Superseded to Discontinued)

$

$

Not available

12

Echo Y76091022550

RING ASSY O.S.= 0.5
(Superseded to Discontinued)

$

$

Not available

13

Echo Y76091023101

CONNECTING ROD ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16081023201

BOLT, ROD
(Superseded to Discontinued)

$

$

Not available
