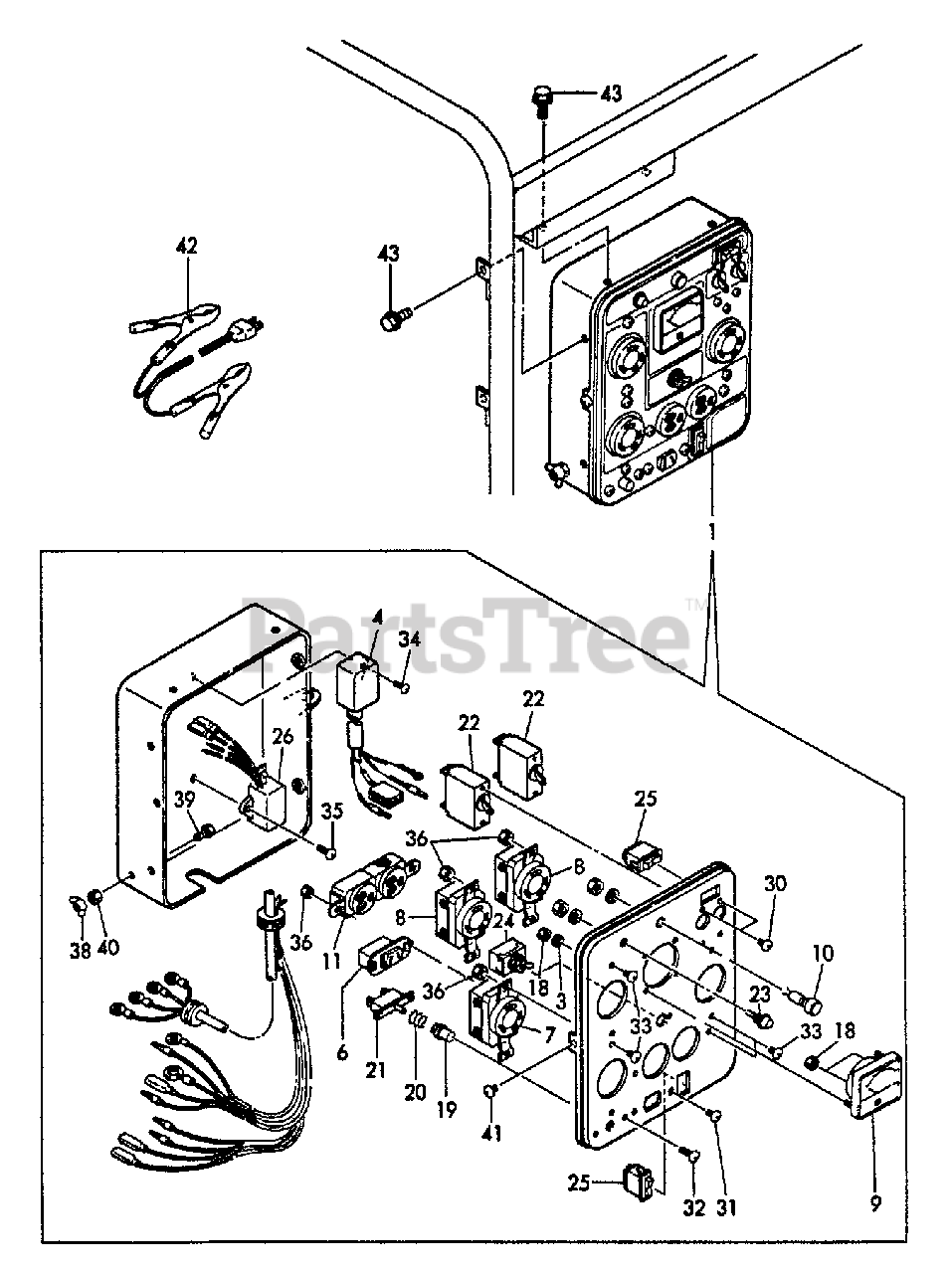

EG-4300 E - Echo Generator Panel Parts Diagram

Generator

Panel Parts Diagram

  • Title

1

Echo Y18392591050

PANEL BOX ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066414570

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16087078810

SENSOR, OIL
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18382591250

DC CONNECT
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18366091260

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18366091270

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18382091270

METER, VOLTAGE - 300V
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18382091310

LAMP, PILOT
(Superseded to Discontinued)

$

$

Not available

11

Echo Y18392091320

AC CONNECT
(Superseded to Discontinued)

$

$

Not available

18

Echo Y18392591990

NUT - 3
(Superseded to Discontinued)

$

$

Not available

19

Echo Y18300096310

CAP, BREAKER
(Superseded to Discontinued)

$

$

Not available

20

Echo Y18300096320

SPRING, BREAKER
(Superseded to Discontinued)

$

$

Not available

21

Echo Y18300096330

BREAKER
(Superseded to Discontinued)

$

$

Not available

22

Echo Y18300096400

AC BREAKER

$66.99

$

Usually ships in 2-4 days

0

23

Echo Y18300097130

LAMP, OIL ALERT
(Superseded to Discontinued)

$

$

Not available

24

Echo Y18300097420

SWITCH
(Superseded to Discontinued)

$

$

Not available

25

Echo Y18300097440

SWITCH
(Superseded to Discontinued)

$

$

Not available

26

Echo Y18300097900

UNIT, SLOW-DOWN
(Superseded to Discontinued)

$

$

Not available

30

Echo Y26557030062

SCREW - 3X6
(Superseded to Discontinued)

$

$

Not available

31

Echo Y26557030062

SCREW - 3X6
(Superseded to Discontinued)

$

$

Not available

32

Echo Y26557030122

SCREW - 3X14
(Superseded to Discontinued)

$

$

Not available

33

Echo Y26557040062

SCREW - 4X6
(Superseded to Discontinued)

$

$

Not available

34

Echo Y26557050102

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

35

Echo Y26557050102

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

36

Echo Y26757040002

NUT - 4
(Superseded to Discontinued)

$

$

Not available

38

Echo Y18362108810

WINGNUT - 6
(Superseded to Discontinued)

$

$

Not available

39

Echo Y26113060162

BOLT - 6X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

40

Echo Y26753060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available

41

Echo Y26557040062

SCREW - 4X6
(Superseded to Discontinued)

$

$

Not available

42

Echo Y18321091880

CABLE

$23.99

$

In Stock, only 1 left!

0

43

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0
