EG-4300 E - Echo Generator Intake, Exhaust, Air Cleaner Parts Diagram

Generator

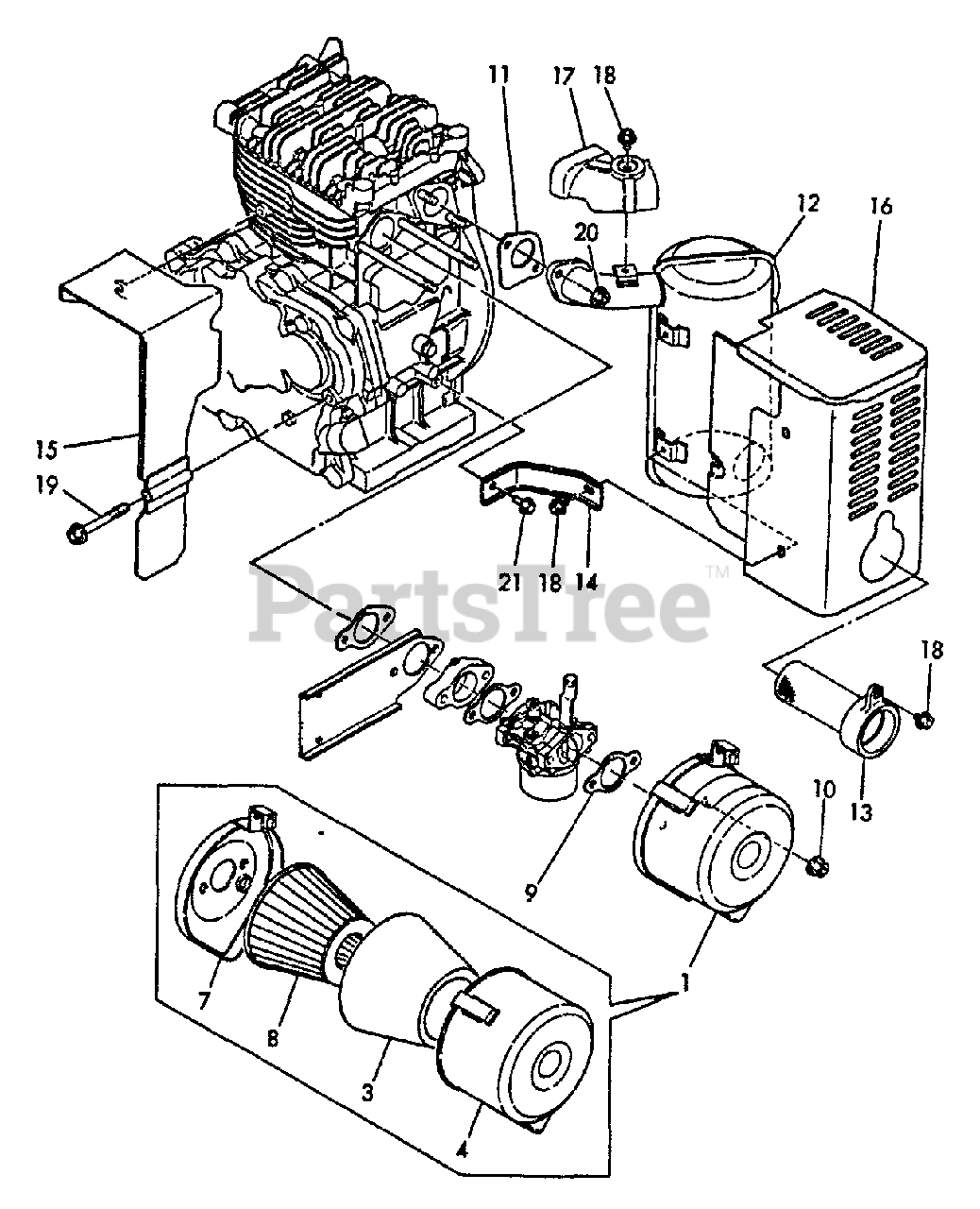

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo Y76091012570

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16028012570

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y76091012540

BODY ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16091012720

PLATE
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16082012740

ELEMENT (2ND)
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16091056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16091013200

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16097013570

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16087013650

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16091013730

STAY, MUFFLER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16097013730

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16079013820

COVER, MUFFLER

$

$

Currently unavailable

17

Echo Y16091013820

COVER-C, MUFFLER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

19

Echo Y26116080602

BOLT - 8X60 -- PLATED
(Superseded to Discontinued)

$

$

Not available

20

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

21

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
