EG-3500 - Echo Generator (SN: 02738 - 99999) Fuel Tank Parts Diagram

Generator

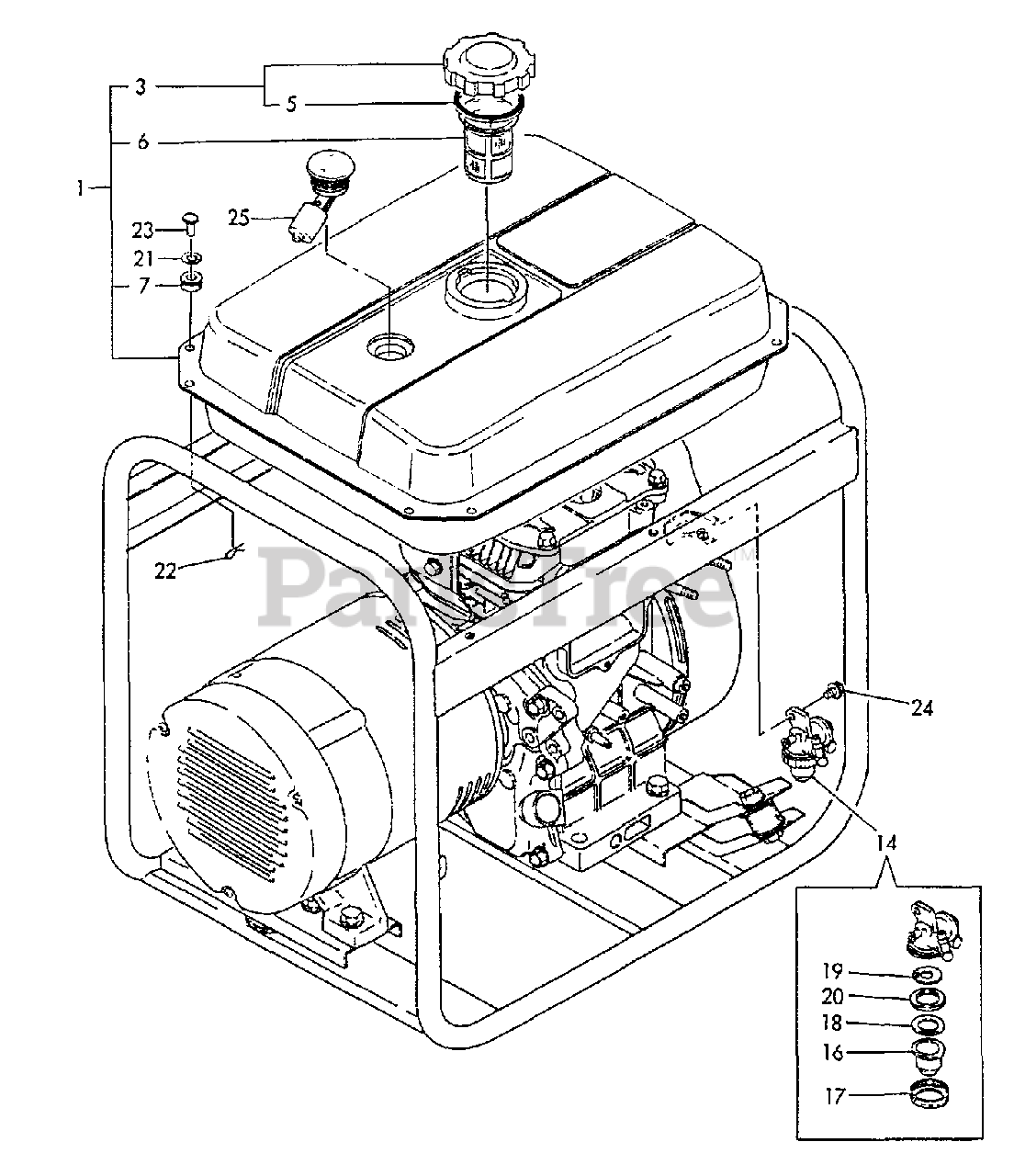

Fuel Tank Parts Diagram

  • Title

1

Echo Y78382055731

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16064255060

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16039355050

GASKET
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071055100

STRAINER, FUEL
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18372055210

GROMMET
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16071055301

FUEL COCK ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16071055390

BOWL, STRAINER
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16071055360

RETAINER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16071055370

GASKET
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16071055381

FILTER, FUEL
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16069255421

PLATE
(Superseded to Discontinued)

$

$

Not available

21

Echo Y18335055130

WASHER
(Superseded to Discontinued)

$

$

Not available

22

Echo Y22360060000

PIN - 6 -- SNAP

$0.99

$

In Stock, only 1 left!

0

23

Echo Y18335055120

PIN - 6X14
(Superseded to Discontinued)

$

$

Not available

24

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

25

Echo Y18392555150

GAUGE, FUEL

$2.49

$

Usually ships in 2-4 days

0
