EG-3500 - Echo Generator (SN: 02738 - 99999) Frame Parts Diagram

Generator

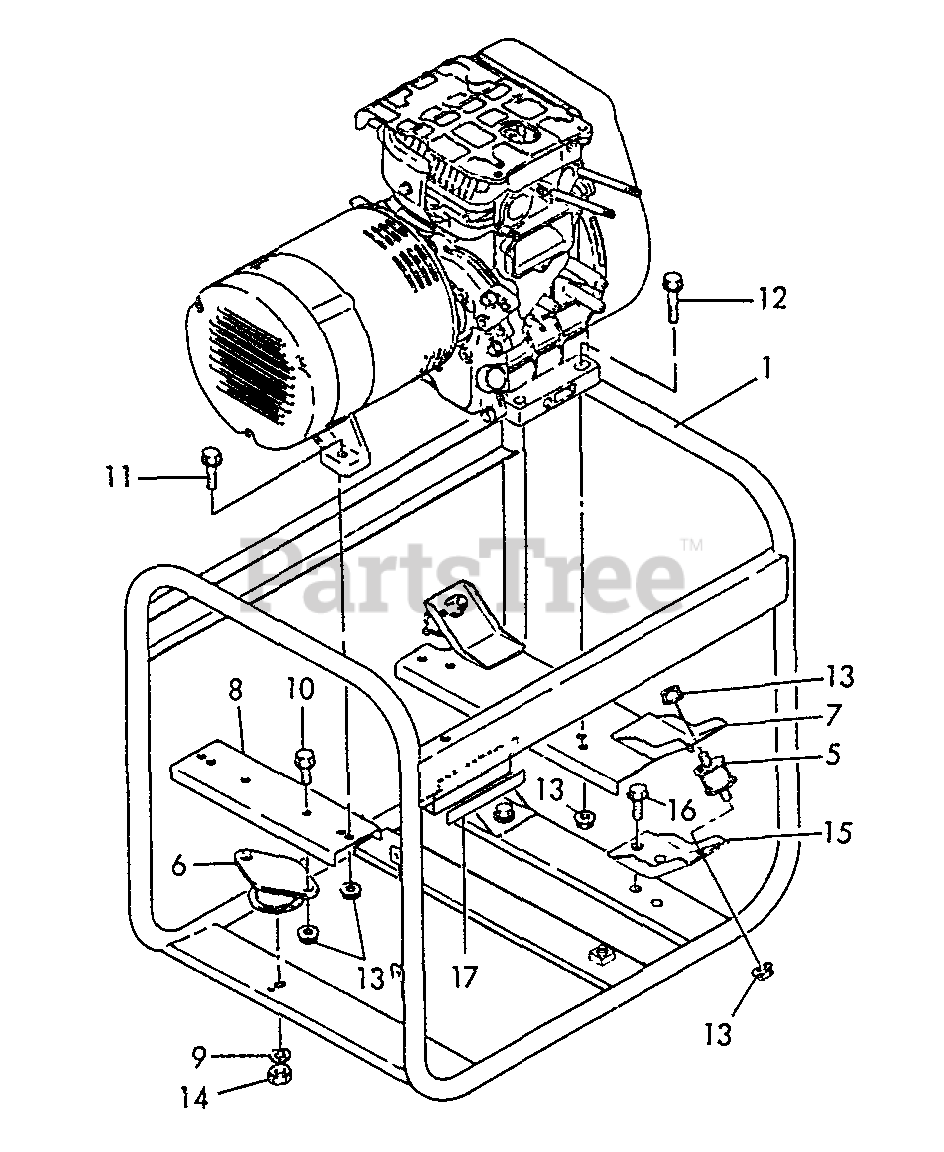

Frame Parts Diagram

  • Title

1

Echo Y78382008721

FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18392008210

DAMPER, FRONT
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18372008220

DAMPER, REAR
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18392008230

STAY, DAMPER
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18372008250

STAY, REAR DAMPER
(Superseded to Discontinued)

$

$

Not available

9

Echo Y22217100000

LOCKWASHER - 10
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26106080202

BOLT - 8X20 -- PLATED
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26106080302

BOLT - 8X30 -- PLATED
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26106080382

BOLT - 8X38 -- PLATED
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

14

Echo Y26716100002

NUT - 10
(Superseded to Discontinued)

$

$

Not available

15

Echo Y18362108260

DAMPER STAY, LOWER
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26106080162

BOLT - 8X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

17

Echo Y18382507910

SHEET, FRAME
(Superseded to Discontinued)

$

$

Not available
