EG-3500 - Echo Generator (SN: 00000 - 02737) Intake, Exhaust, Air Cleaner Parts Diagram

Generator

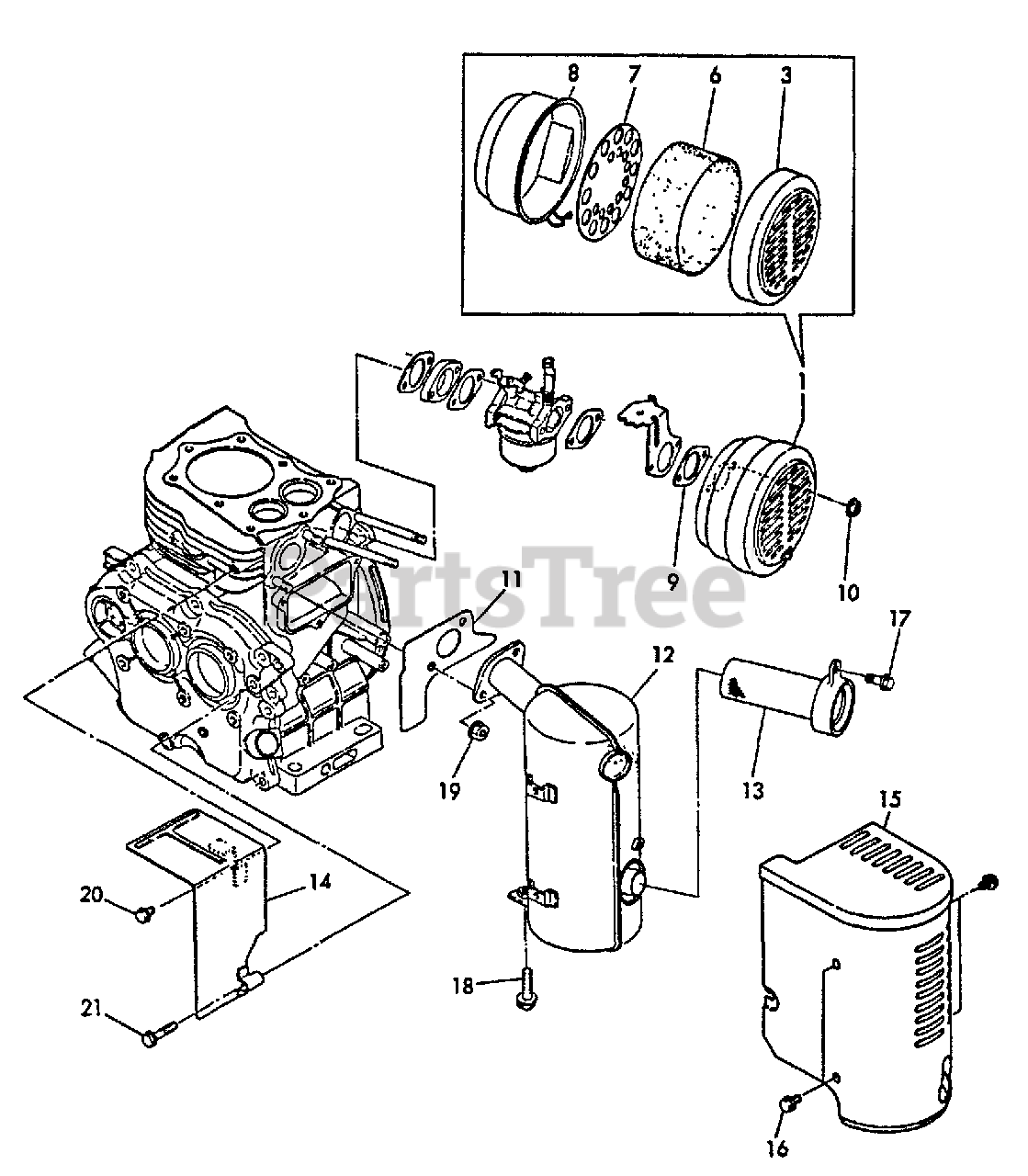

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo Y76081012560

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76081012540

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16081012540

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16081012550

HOLDER, ELEMENT
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16081012730

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16081056150

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

10

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16081013200

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16087013560

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16087013650

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16087013730

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16087013810

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

17

Echo Y26106060102

BOLT - 6X10 -- PLATED
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26106080302

BOLT - 8X30 -- PLATED
(Superseded to Discontinued)

$

$

Not available

19

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

20

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

21

Echo Y26476060302

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available
