EG-3500 - Echo Generator (SN: 00000 - 02737) Fuel Tank Parts Diagram

Generator

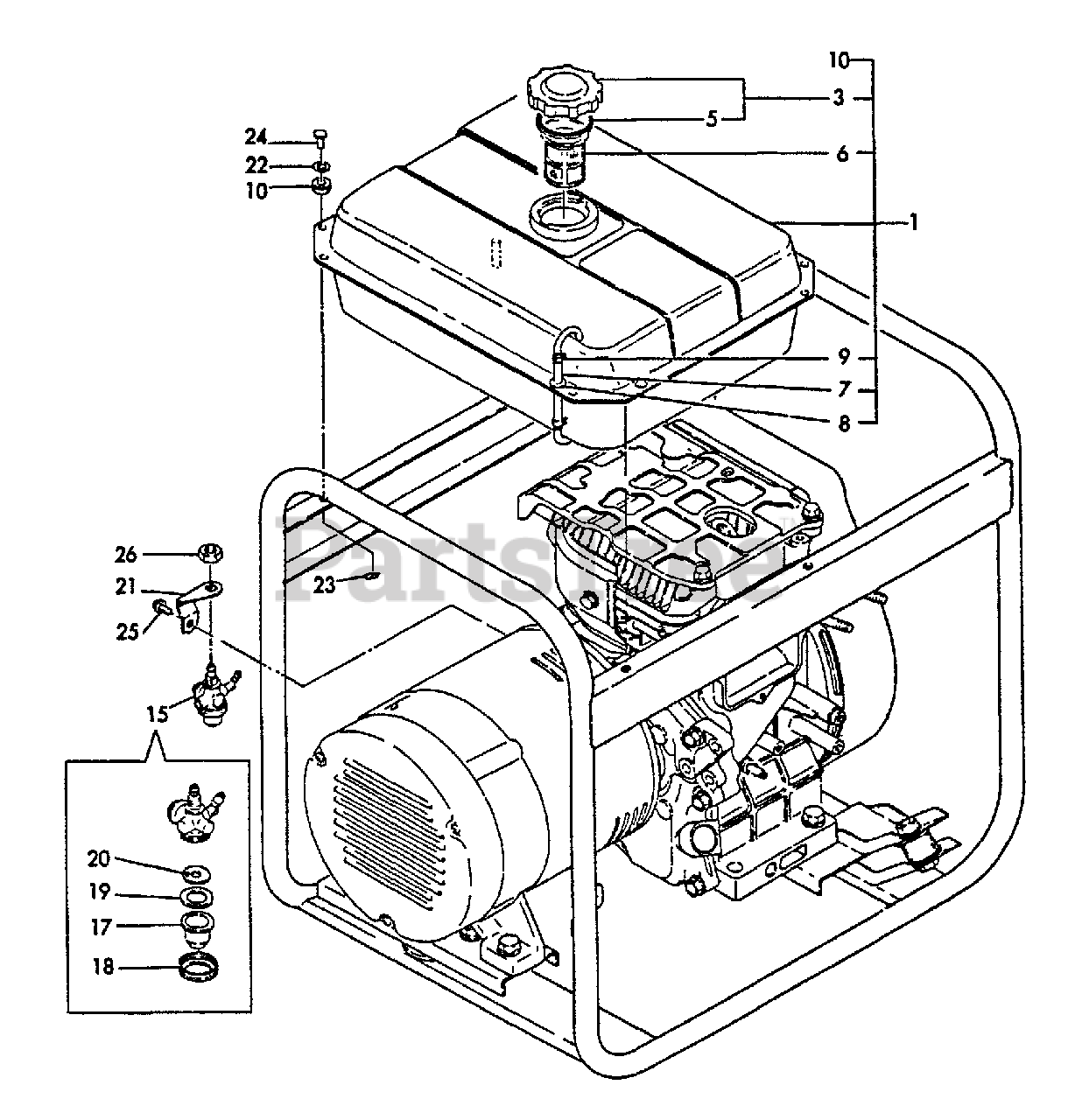

Fuel Tank Parts Diagram

  • Title

1

Echo Y78382055730

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16071055060

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16039355050

GASKET
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071055100

STRAINER, FUEL
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071055150

PIPE, GAUGE
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18372055190

GROMMET
(Superseded to Discontinued)

$

$

Not available

9

Echo Y12472259050

CLAMP, HOSE - 9
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18372055210

GROMMET
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16087055301

FUEL COCK ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16071055390

BOWL, STRAINER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16071055360

RETAINER
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16071055370

GASKET
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16021055380

FILTER, FUEL

$7.99

$

Usually ships in 2-4 days

0

21

Echo Y16087055350

STAY, COCK
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16012076940

WASHER
(Superseded to Discontinued)

$

$

Not available

23

Echo Y22360060000

PIN - 6 -- SNAP

$0.99

$

In Stock, only 1 left!

0

24

Echo Y22487060140

PIN - 6X14
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26106080142

BOLT - 8X14 -- PLATED
(Superseded to Discontinued)

$

$

Not available

26

Echo Y26777120002

LOCKNUT - 12
(Superseded to Discontinued)

$

$

Not available
