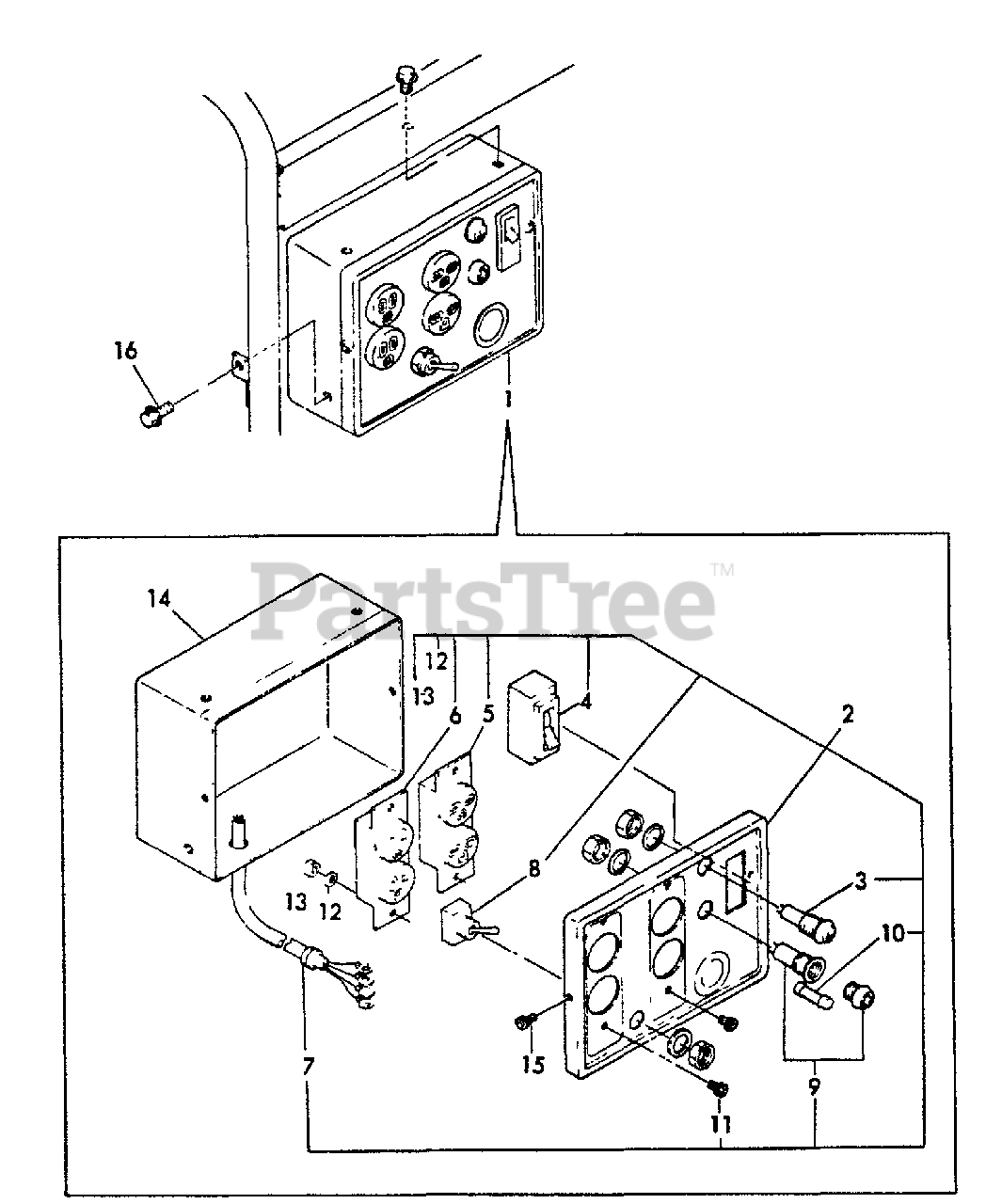

EG-3500 - Echo Generator (SN: 00000 - 02737) Electrical Panel Parts Diagram

Generator

Electrical Panel Parts Diagram

  • Title

1

Echo Y18382091080

PANEL BOX ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18382091170

PANEL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18382091320

LAMP, PILOT - 100V
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18382091700

BREAKER - 15A
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18392091320

AC CONNECT
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18392091310

PLUG SOCKET 240V
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18382091390

WIRE HARNESS
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18352091750

SWITCH
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18392091240

HOLDER, FUSE
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18382091570

FUSE - 15A
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26022040082

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

12

Echo Y22117040000

WASHER - 4
(Superseded to Discontinued)

$

$

Not available

13

Echo Y21727040002

NUT - 4
(Superseded to Discontinued)

$

$

Not available

14

Echo Y18382091350

BOX, PANEL
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26022040082

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days
