EG-3500 - Echo Generator (SN: 00000 - 02737) Cylinder Body Parts Diagram

Generator

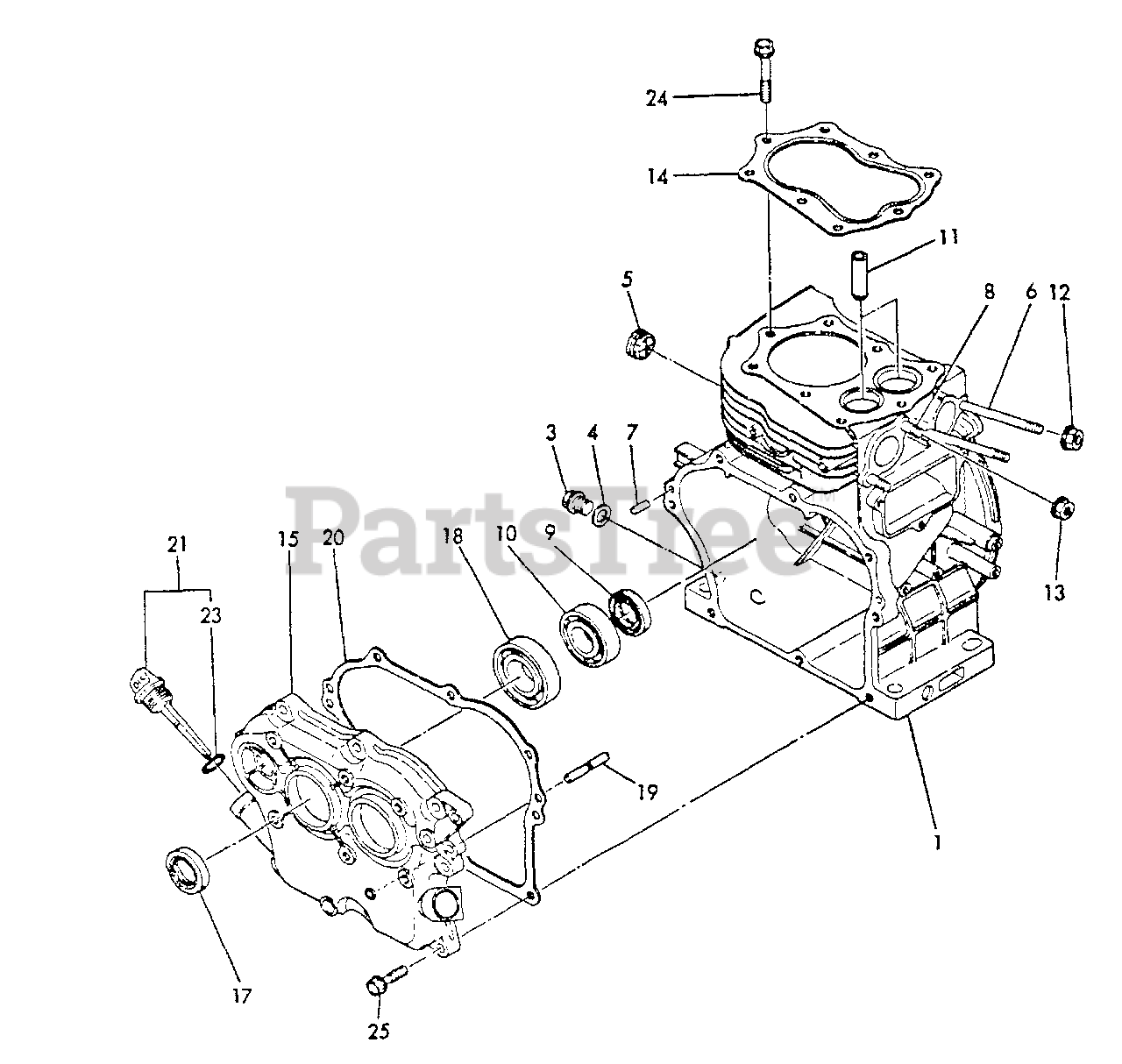

Cylinder Body Parts Diagram

  • Title

1

Echo Y76087001560

CYLINDER BLOCK SET
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

4

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16082001950

PLUG
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061004590

BOLT - 6X90
(Superseded to Discontinued)

$

$

Not available

7

Echo Y22312060160

PIN - 6X16
(Superseded to Discontinued)

$

$

Not available

8

Echo Y26216080182

STUD - 8X18 -- PLATED
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16021002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

10

Echo Y24101062050

BEARING, BALL - 6205C3
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16081011160

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16081001330

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y76084001500

SIDE COVER ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16021002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

18

Echo Y24101062060

BEARING, BALL - 6206C4
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16061061100

SHAFT, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16081001410

GASKET, SIDE COVER
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16081001740

OIL FILLER CAP ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo Y24311000180

O-RING - 18
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061004180

BOLT - 8X50
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26106080302

BOLT - 8X30 -- PLATED
(Superseded to Discontinued)

$

$

Not available
