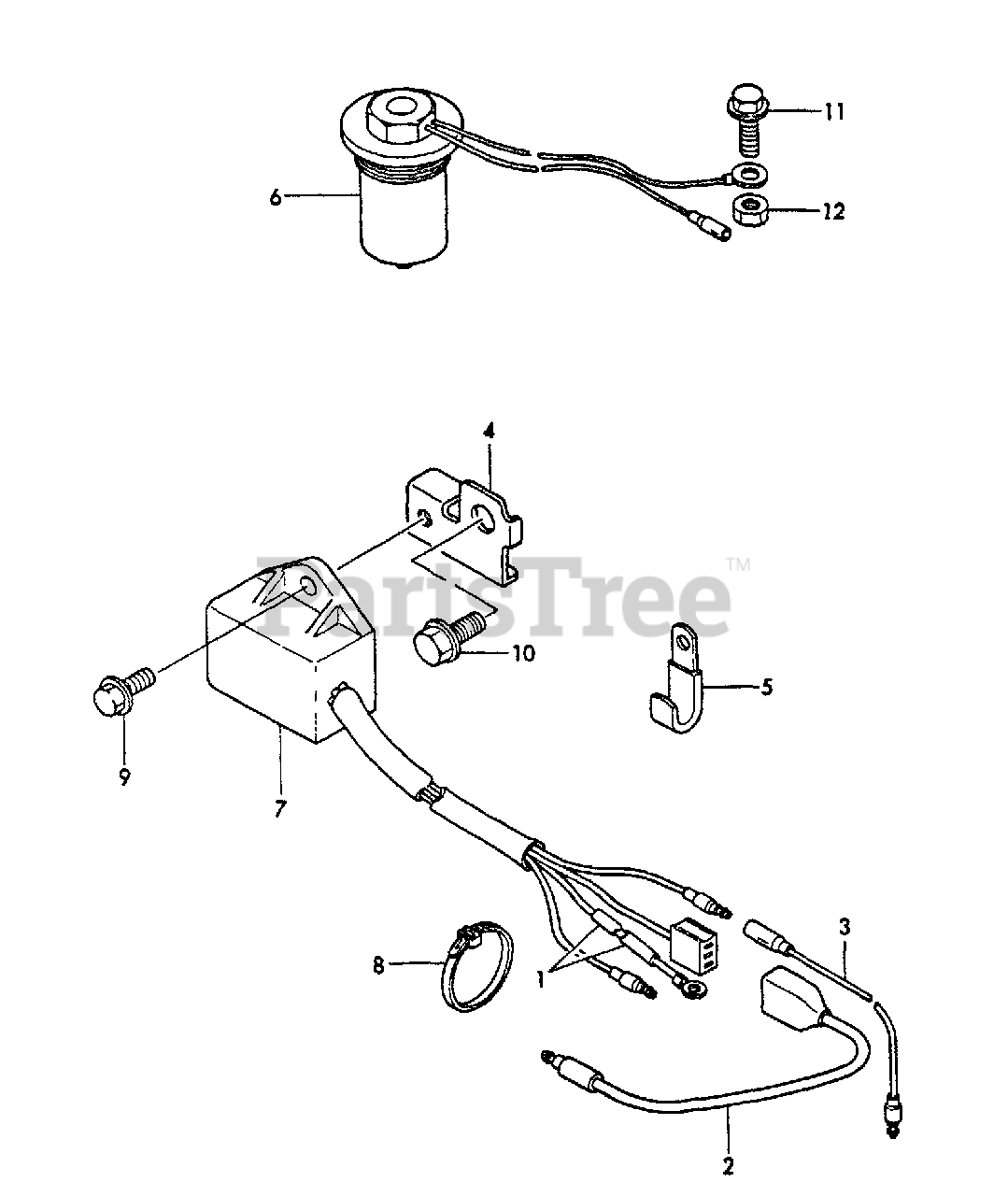

EG-2300 - Echo Generator (SN: 01001 - 03371) Oil Sensor Parts Diagram

Generator

Oil Sensor Parts Diagram

  • Title

1

Echo Y16081003400

TUBE, INSULATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16067178200

WIRE
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16067178230

WIRE, SENSOR UNIT
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16067178350

STAY, SENSOR UNIT
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16026078700

CLAMP
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16077078810

SENSOR, OIL LEVEL
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16067178810

SENSOR, OIL
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16037078950

CLAMP
(Superseded to Discontinued)

$

$

Not available

9

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26106080142

BOLT - 8X14 -- PLATED
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26113060162

BOLT - 6X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26753060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
