EG-2300 - Echo Generator (SN: 01001 - 03371) Generator Parts Diagram

Generator

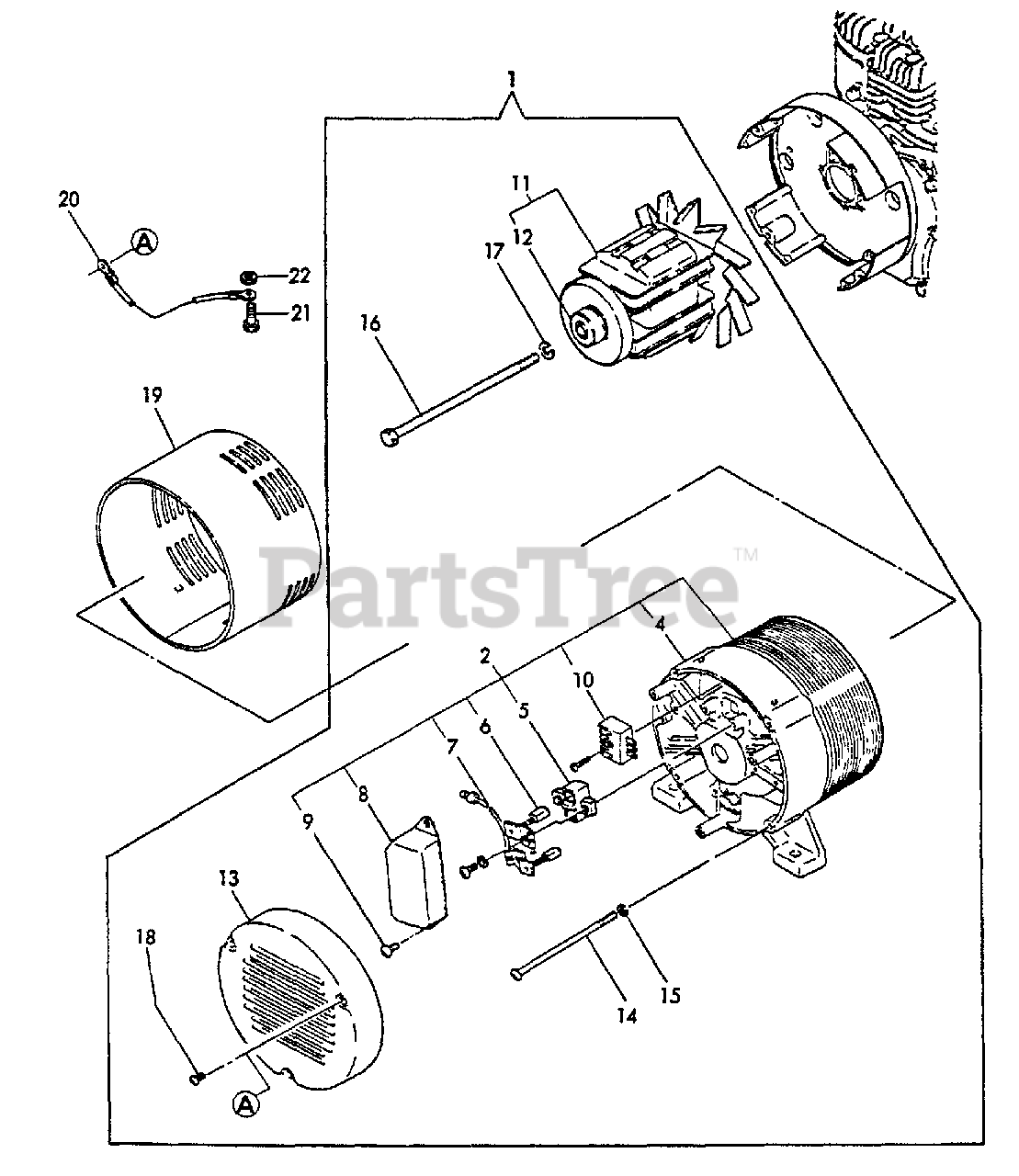

Generator Parts Diagram

  • Title

1

Echo Y18372074130

GENERATOR 2.0 KVA
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18372074230

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18372074260

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18362074240

HOLDER, BRUSH
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18362074220

BRUSH - ( + )
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18362074230

BRUSH - ( - )
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18362174170

A.V.R.
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18382074300

SCREW - 5X14
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18372074460

RECTIFIER
(Superseded to Discontinued)

$

$

Not available

11

Echo Y18372074350

ROTOR ASSY
(Superseded to Discontinued)

$

$

Not available

12

Echo Y18362074360

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18362174400

COVER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y18372074410

BOLT, THROUGH
(Superseded to Discontinued)

$

$

Not available

15

Echo Y22217060000

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

16

Echo Y18372074430

BOLT
(Superseded to Discontinued)

$

$

Not available

17

Echo Y22217080000

LOCKWASHER - 8
(Superseded to Discontinued)

$

$

Not available

18

Echo Y18352091290

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

19

Echo Y18372074760

BAND
(Superseded to Discontinued)

$

$

Not available

20

Echo Y18362174450

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

21

Echo Y26113060162

BOLT - 6X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

22

Echo Y26753060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
