EG-2300 - Echo Generator (SN: 01001 - 03371) Electrical Panel Accessories Parts Diagram

Generator

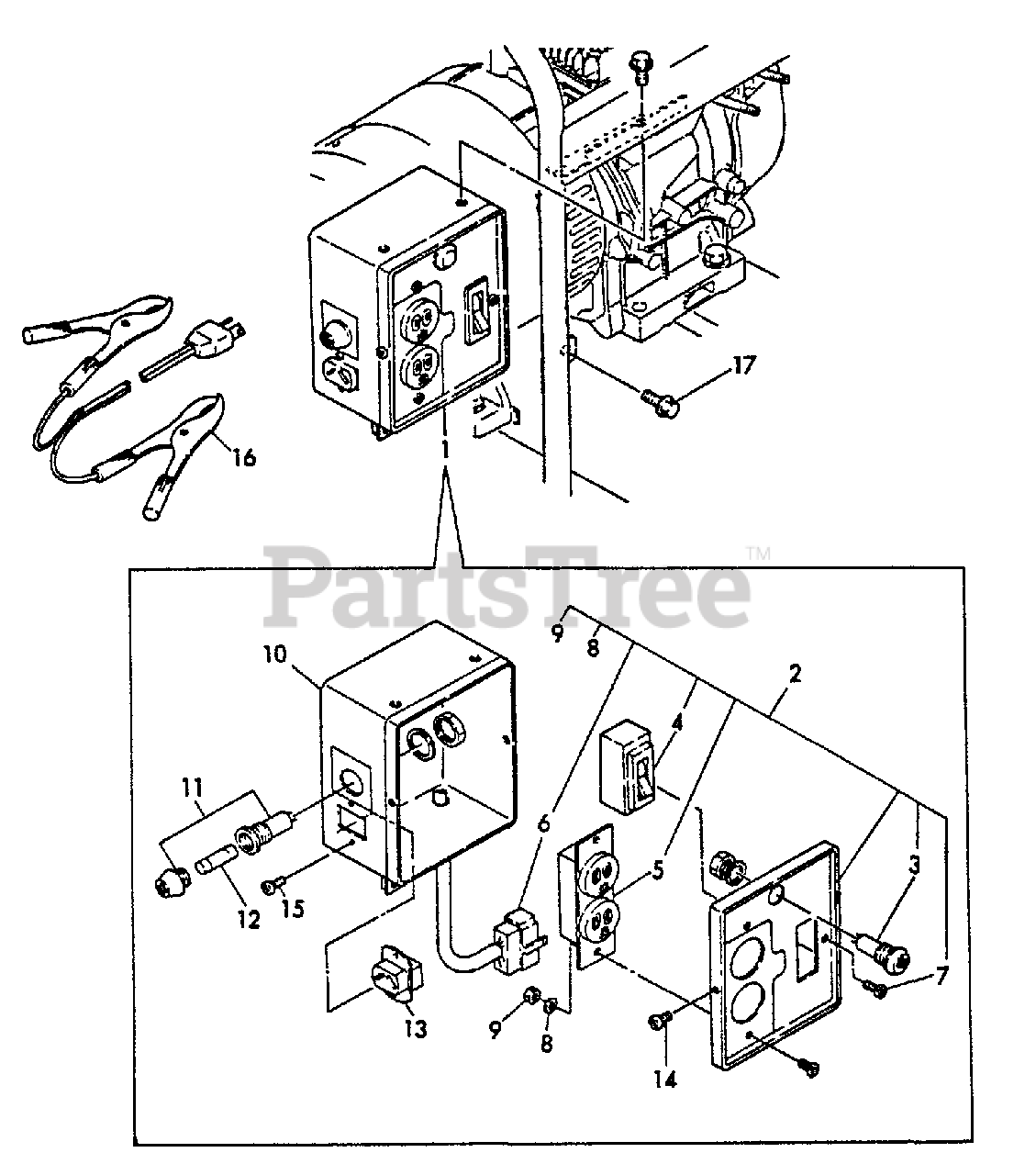

Electrical Panel Accessories Parts Diagram

  • Title

1

Echo Y18372091080

PANEL BOX ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18372091210

PANEL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18382091320

LAMP, PILOT - 100V
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18372091230

BREAKER - 17A
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18392091320

AC CONNECT
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18372091370

WIRE HARNESS
(Superseded to Discontinued)

$

$

Not available

7

Echo Y26022040082

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

8

Echo Y22117040000

WASHER - 4
(Superseded to Discontinued)

$

$

Not available

9

Echo Y21727040002

NUT - 4
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18372091360

BOX, PANEL
(Superseded to Discontinued)

$

$

Not available

11

Echo Y18362091230

HOLDER, FUSE
(Superseded to Discontinued)

$

$

Not available

12

Echo Y18372091240

FUSE - 15A
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18372091250

PLUG SOCKET 15A
(Superseded to Discontinued)

$

$

Not available

14

Echo Y26022040082

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26022030102

SCREW - 3X10
(Superseded to Discontinued)

$

$

Not available

16

Echo Y18321091880

CABLE

$23.99

$

In Stock, only 1 left!

0

17

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0
