EG-1500 - Echo Generator (SN: 03797 - 99999) Starter Parts Diagram

Generator

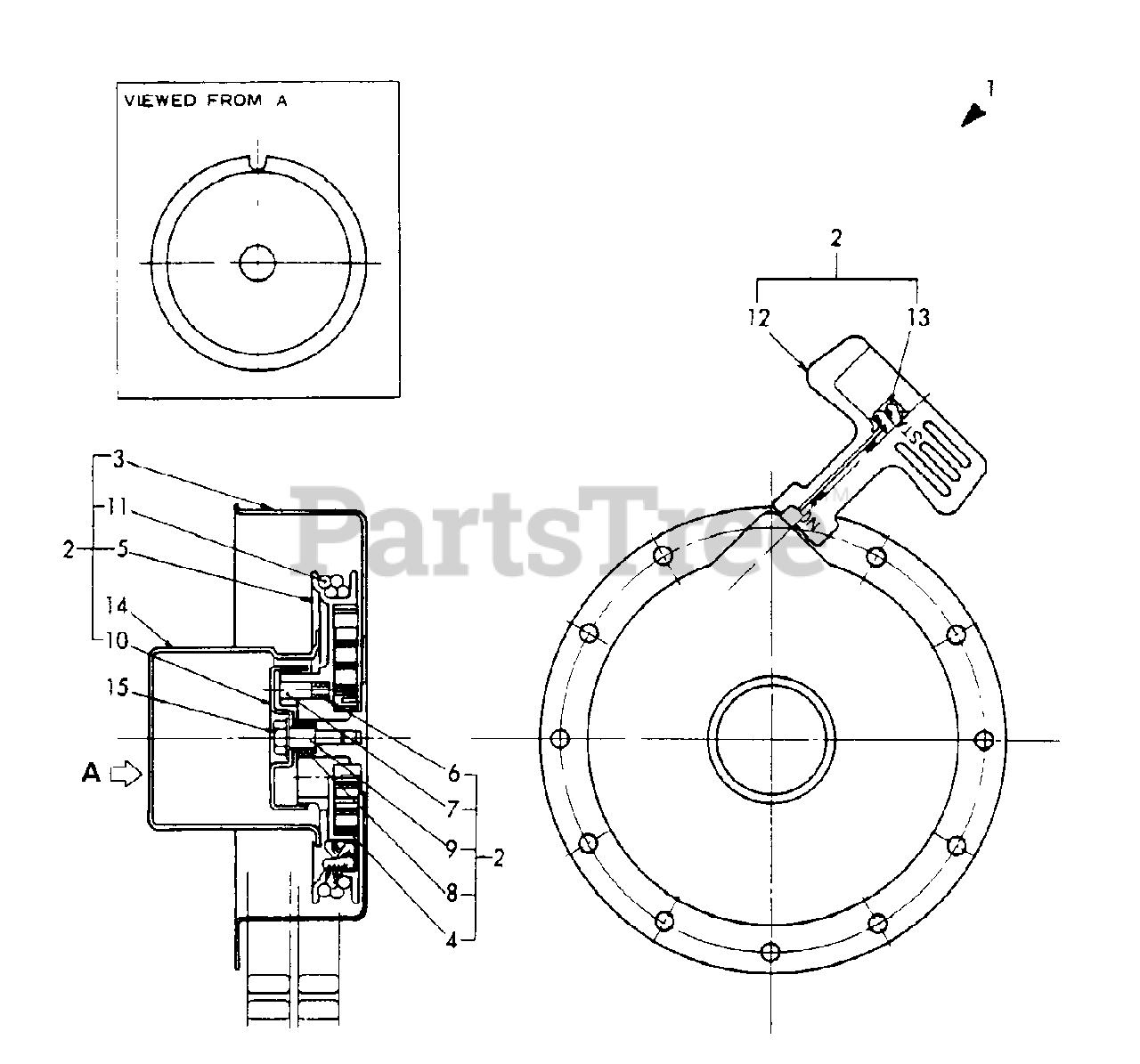

Starter Parts Diagram

  • Title

1

Echo Y16064176050

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16064176250

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16064176510

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16064176540

SPRING
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16064176520

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16064176550

SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16064176530

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16064176560

SPRING
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16064176570

SCREW, CENTER
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16064176580

RETAINER
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16064176630

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16064176620

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16064176640

RETAINER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16064176590

PULLEY, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available
