EG-1500 - Echo Generator (SN: 00000 - 03796) Air Cleaner And Muffler Parts Diagram

Generator

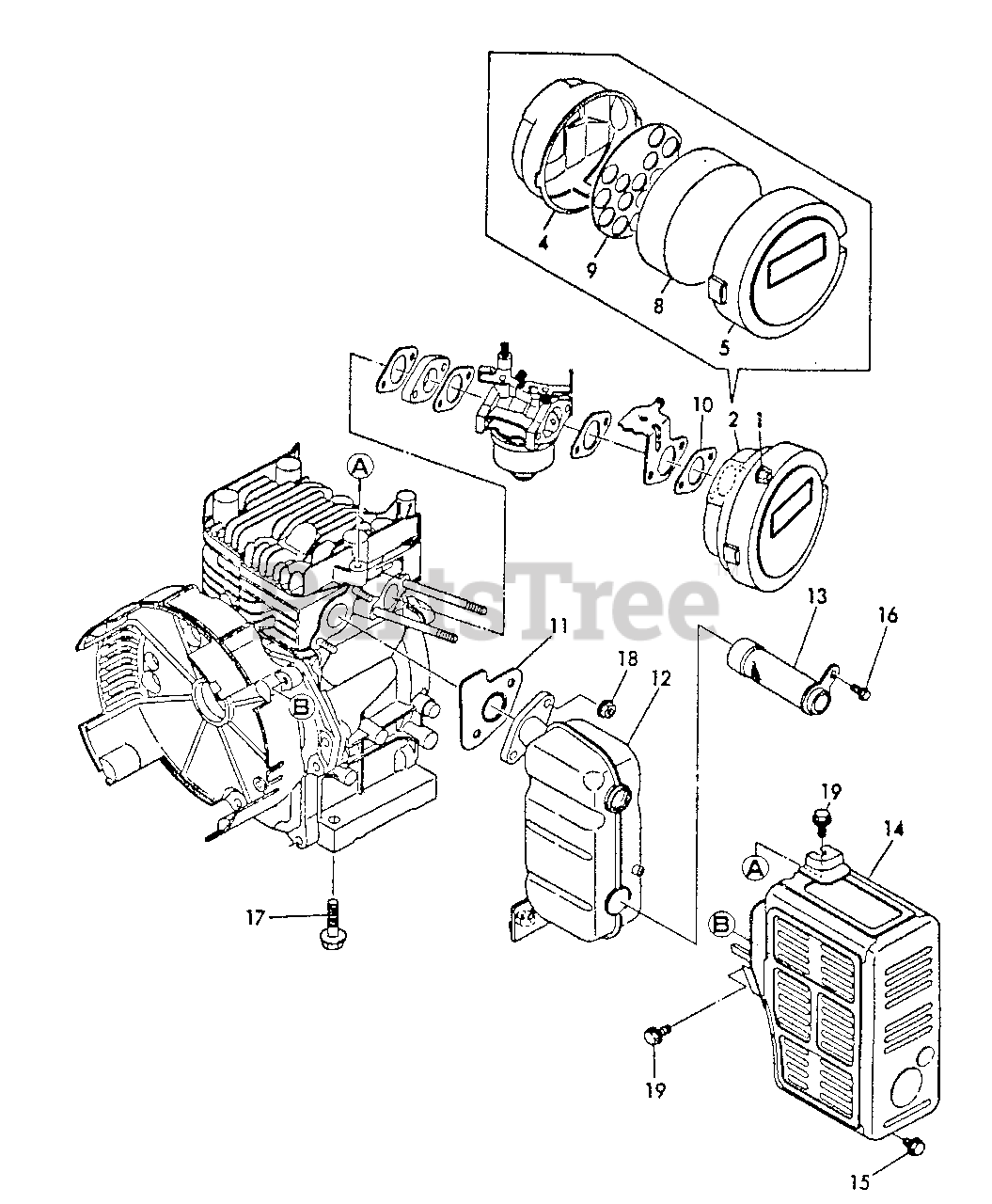

Air Cleaner And Muffler Parts Diagram

  • Title
1

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

2

Echo Y76061012560

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16061012520

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

5

Echo Y76061012540

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061012540

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061012550

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16061056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16061013201

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16067113550

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16067113650

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16067113810

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

16

Echo Y26106060102

BOLT - 6X10 -- PLATED
(Superseded to Discontinued)

$

$

Not available

17

Echo Y26106080302

BOLT - 8X30 -- PLATED
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

19

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
