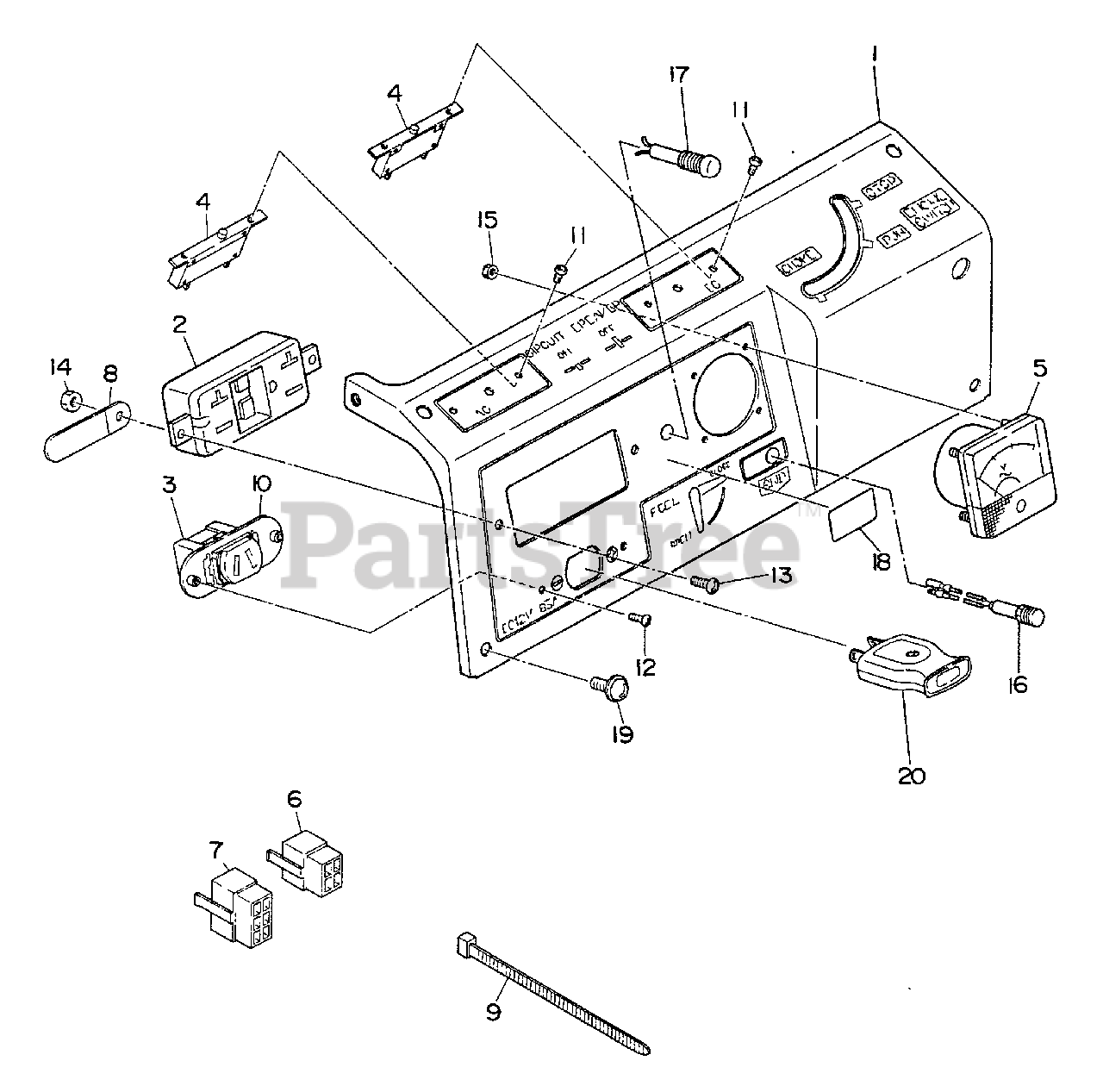

EG-1200 - Echo Generator (Original Version) Electrical Panel Parts Diagram

Generator

Electrical Panel Parts Diagram

  • Title

1

Echo 103504111901

CONTROL PANEL ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 103904575008

AC RECEPTACLE - 125V-20A, GFCI
(Superseded to Discontinued)

$

$

Not available

3

Echo 103504060208

DC RECEPTACLE -- 250V-10A
(Superseded to Discontinued)

$

$

Not available

4

Echo 103524562008

CIRCUIT BREAKER - 10A DC
(Superseded to Discontinued)

$

$

Not available

5

Echo 103914780001

AC VOLT METER

$148.99

$

Usually ships in 2-4 days

0

6

Echo 103535430108

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

7

Echo 103535430008

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

8

Echo 103502105308

CLAMP
(Superseded to Discontinued)

$

$

Not available

9

Echo 100563000020

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 103504060308

DC RECEPTACLE BASE
(Superseded to Discontinued)

$

$

Not available

11

Echo 100043503060

SCREW
(Superseded to Discontinued)

$

$

Not available

12

Echo 100043503080

SCREW
(Superseded to Discontinued)

$

$

Not available

13

Echo 100043504100

SCREW
(Superseded to Discontinued)

$

$

Not available

14

Echo 100021704000

NUT
(Superseded to Discontinued)

$

$

Not available

15

Echo 100021703000

NUT
(Superseded to Discontinued)

$

$

Not available

16

Echo 102277700200

LED LAMP ASS'Y

$17.99

$

Usually ships in 2-4 days

0

17

Echo 103207517308

LAMP, NEON
(Superseded to Discontinued)

$

$

Not available

18

Echo 103509510803

LABEL -- HZ-V
(Superseded to Discontinued)

$

$

Not available

19

Echo 100131050020

SCREW
(Superseded to Discontinued)

$

$

Not available

20

Echo 103589500303

DC PLUG

$14.99

$

In Stock, only 1 left!

0
