EG-1200 - Echo Generator (Brushless Version) Electrical Panel Parts Diagram

Generator

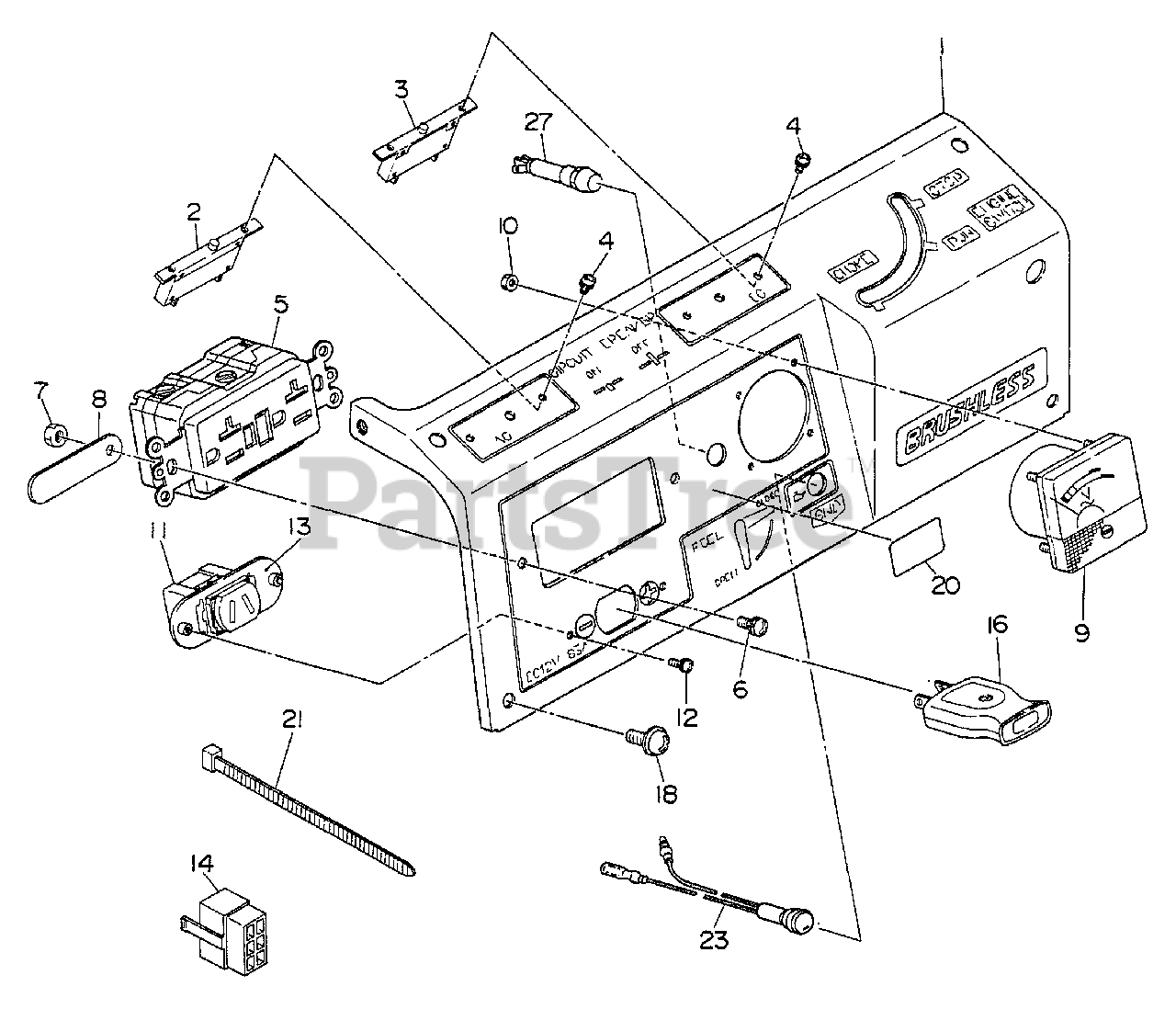

Electrical Panel Parts Diagram

  • Title

1

Echo 103504180301

CONTROL PANEL ASSY
(Superseded to Discontinued)

Note: For 60Hz - 120V

$

$

Not available

2

Echo 103514562408

CIRCUIT BREAKER

Note: For 8A

$52.99

$

Usually ships in 2-4 days

0

3

Echo 103524562008

CIRCUIT BREAKER - 10A DC
(Superseded to Discontinued)

Note: For 10A

$

$

Not available

4

Echo 100043503060

SCREW
(Superseded to Discontinued)

$

$

Not available

5

Echo 103888500101

AC RECEPTACLE
(Superseded to 103904575008)

$

$

Not available

6

Echo 100043504100

SCREW
(Superseded to Discontinued)

$

$

Not available

7

Echo 100021704000

NUT
(Superseded to Discontinued)

$

$

Not available

8

Echo 103502105308

CLAMP
(Superseded to Discontinued)

$

$

Not available

9

Echo 103914780001

AC VOLT METER

$148.99

$

Usually ships in 2-4 days

0

10

Echo 100021703000

NUT
(Superseded to Discontinued)

$

$

Not available

11

Echo 103504060208

DC RECEPTACLE -- 250V-10A
(Superseded to Discontinued)

$

$

Not available

12

Echo 100043503080

SCREW
(Superseded to Discontinued)

$

$

Not available

13

Echo 103504060308

DC RECEPTACLE BASE
(Superseded to Discontinued)

$

$

Not available

14

Echo 103535430008

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

16

Echo 103589500303

DC PLUG

$14.99

$

In Stock, only 1 left!

0

18

Echo 100131050020

SCREW
(Superseded to Discontinued)

$

$

Not available

20

Echo 103509510803

LABEL -- HZ-V
(Superseded to Discontinued)

$

$

Not available

21

Echo 100563000020

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 102277700200

LED LAMP ASSY

Note: For oil sensor

$17.99

$

Usually ships in 2-4 days

0

27

Echo 103207517308

LAMP, NEON
(Superseded to Discontinued)

Note: For pilot lamp

$

$

Not available
