EFRP 216012TV (82407) - Snapper 21" Walk-Behind Mower, 6hp Accessory - Grass Bag Parts Diagram

21" Walk-Behind Mower, 6hp

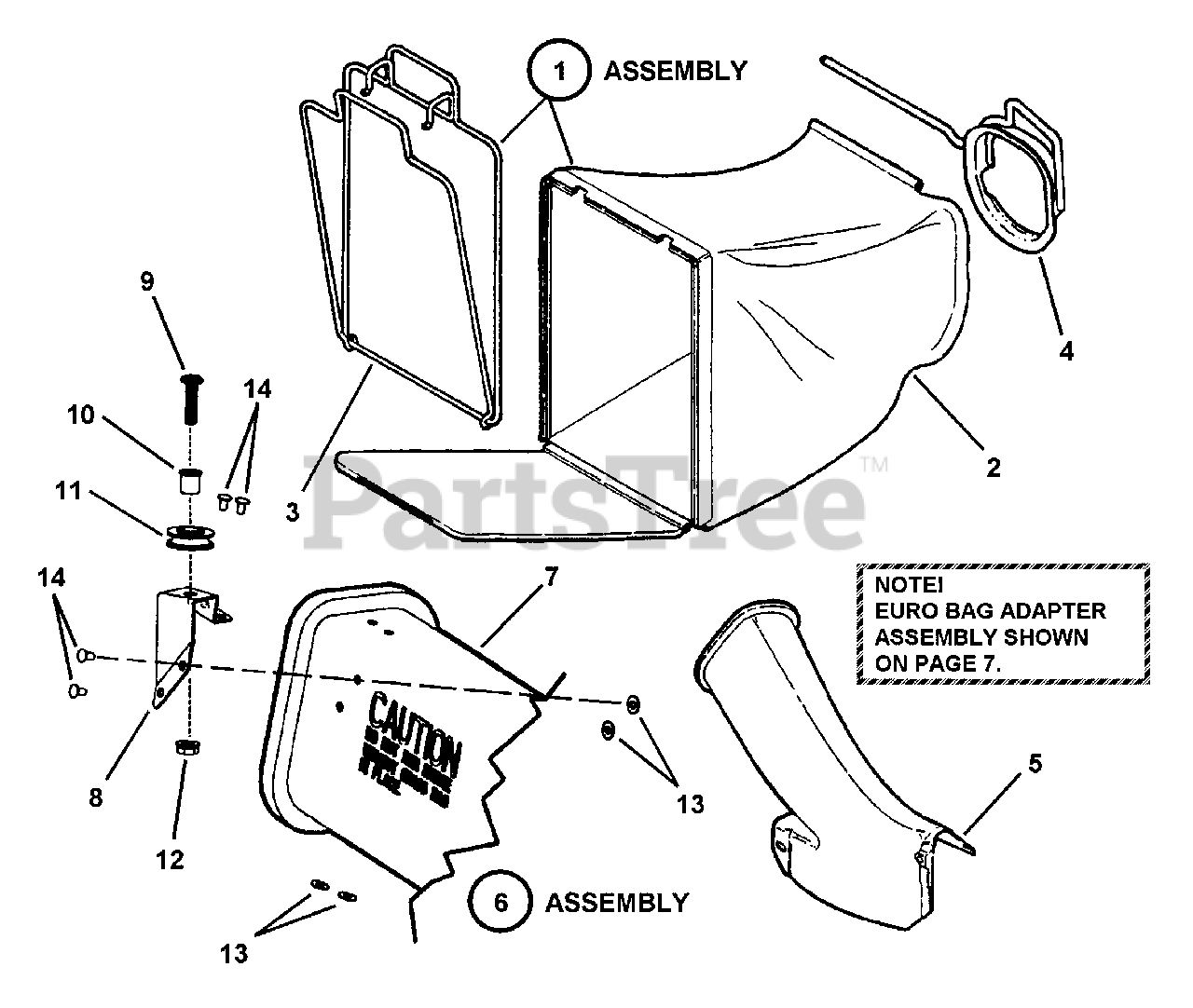

Accessory - Grass Bag Parts Diagram

  • Title

Snapper 7060935

KIT, Grass Bag Catcher
(Superseded to 7060935YP)

Note: Was 61919 (Includes 2 thru 4)

$

$

Not available

1

Snapper 7059322

ASSEMBLY, Grass Bag
(Superseded to 7058571YP)

Note: Was 54058 (Includes 2 thru 4)

$

$

Not available

2

Snapper 7074425

BAG, Door Type (Black) (13" Wide)
(Superseded to 7075765YP)

Note: Was 29963

$137.99

$

Usually ships in 2-12 days

0

3

Snapper 7051906

ASSEMBLY, Bag Wire (13" Wide)
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

4

Snapper 7042489

CONNECTOR, Grass Bag
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

5

Snapper 7016050

ADAPTER, Bag
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

6

Snapper 7058037

ASSEMBLY, Bag Adapter
(Superseded to 7600117YP)

Note: (Includes items 7 thru 14)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper 7047081

ADAPTER, Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

8

Snapper 7047082

BRACKET, Rope Pulley
(Superseded to 7047082AYP)

$9.49

$

Usually ships in 2-12 days

0

9

Snapper 7091984

SCREW, 5/16-18 x 1-1/4" Pan Head Machine
(Superseded to 7091984YP)

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

11

Snapper 7024228

PULLEY, Plastic
(Superseded to 7024228SM)

$4.99

$

In Stock, only 4 left!

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7072107

WASHER, 15/32"
(Superseded to 7072107YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0
