EDR-260 - Echo Reversible Engine Drill (SN: E52412001001 - E52412999999) Starter Parts Diagram

Reversible Engine Drill

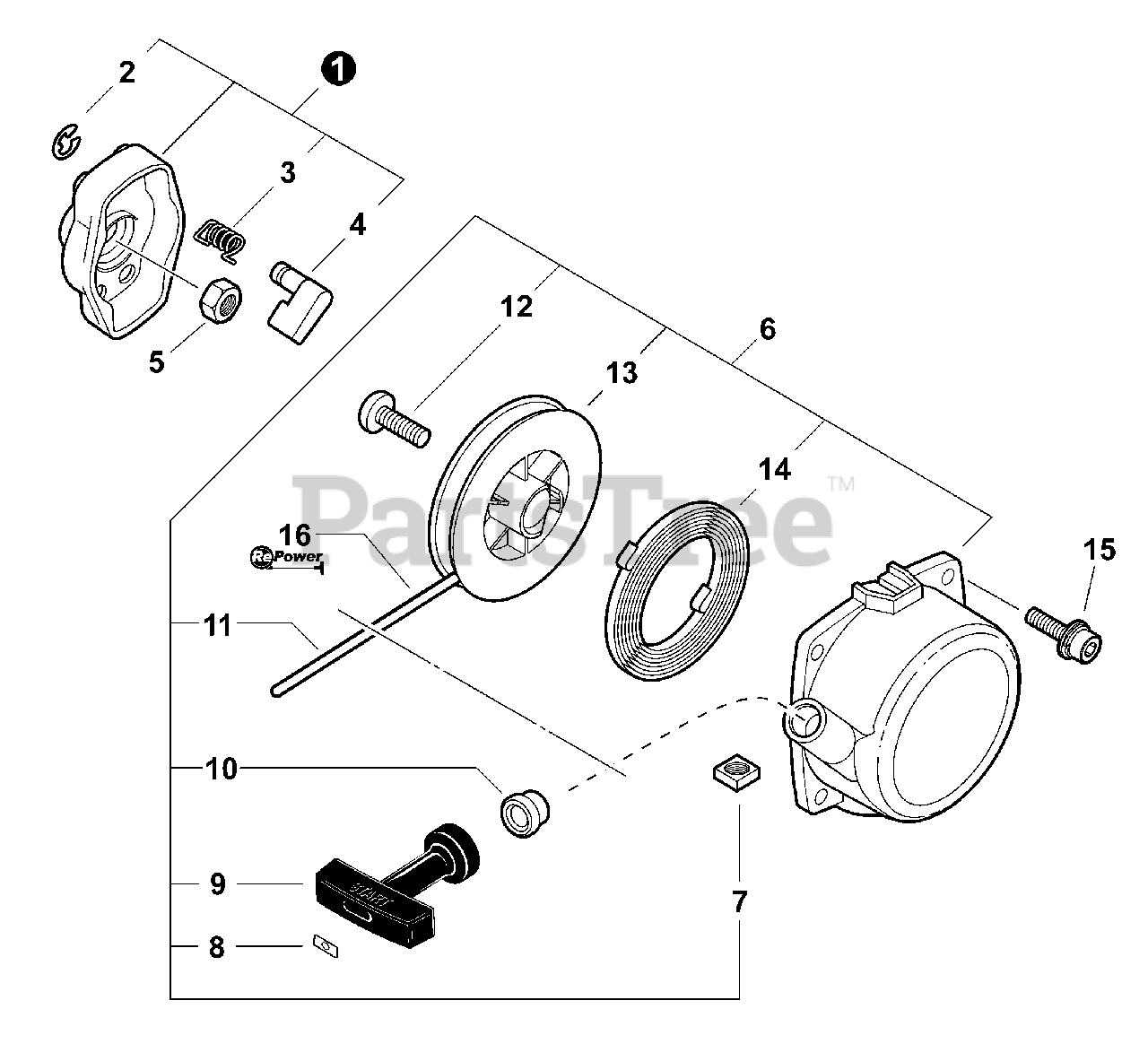

Starter Parts Diagram

  • Title

1

Echo A052000030

STARTER PAWL ASY

Note: Includes Items 2-4

$12.99

$

In Stock, Qty 20+

0

2

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

5

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

6

Echo 17720055931

STARTER ASY

Note: Includes Items 7-14

$40.99

$

In Stock, Qty 6

0

7

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

9

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

11

Echo 17722603930

ROPE, STARTER - 3.5×850

$5.99

$

In Stock, Qty 7

0

12

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

13

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

14

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

15

Echo 90016204014

SCREW - 4×14

$1.49

$

In Stock, Qty 5

0

16

Echo 99944445000

ROPE, STARTER - REPOWER BULK

$32.99

$

In Stock, only 1 left!

0
