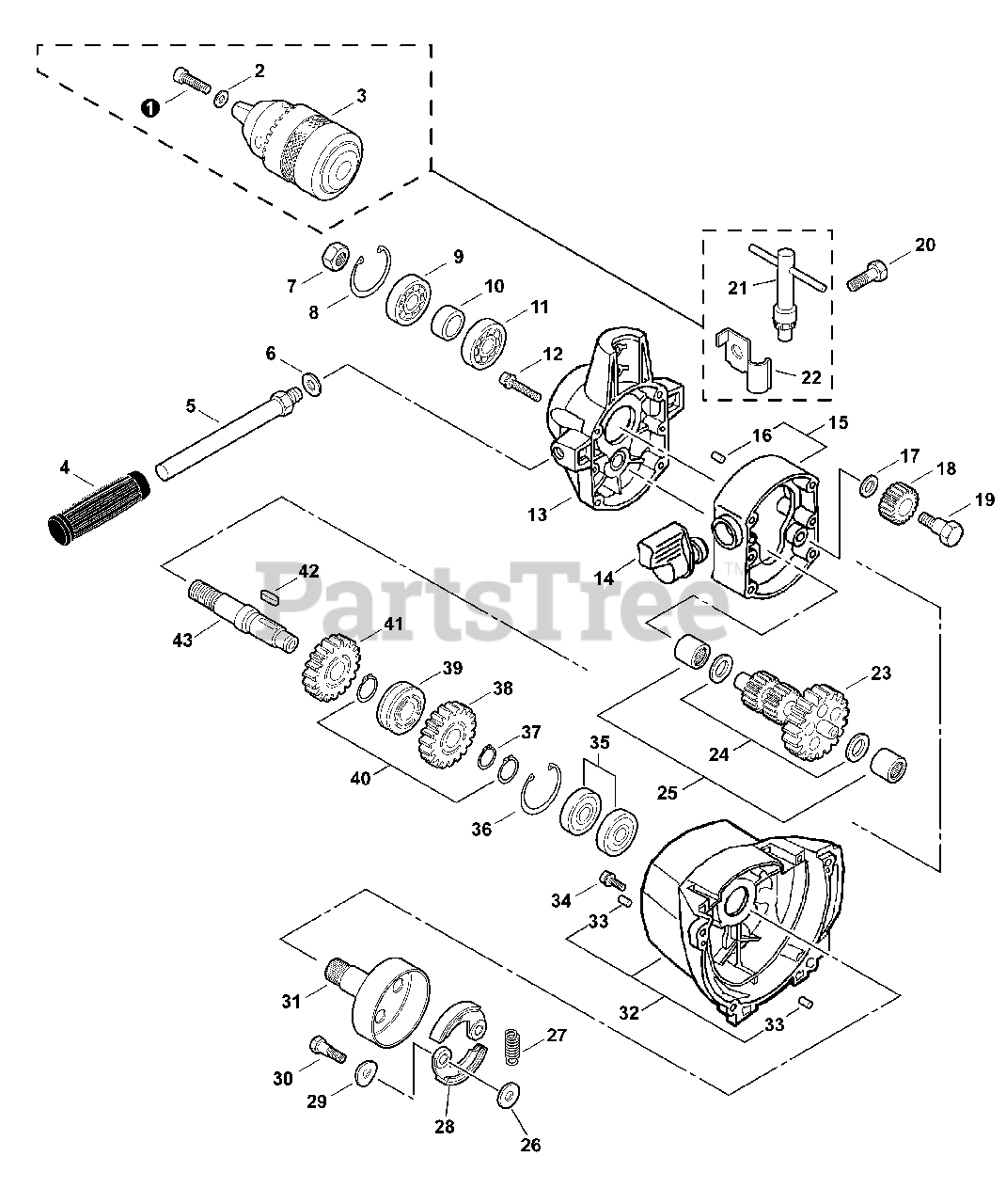

EDR-260 - Echo Reversible Engine Drill (SN: E52412001001 - E52412999999) Gear Case Parts Diagram

Reversible Engine Drill

Gear Case Parts Diagram

  • Title

1

Echo 90010506020

SCREW - 6×20

$1.49

$

In Stock, only 3 left!

0

2

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

3

Echo 60405105560

CHUCK - KEYED

$137.99

$

In Stock, only 1 left!

0

4

Echo 35151522330

GRIP, HANDLE
(Superseded to 35131128330)

$6.99

$

In Stock, Qty 6

0

5

Echo C400000090

HANDLE - LEFT

$45.99

$

In Stock, Qty 16

0

6

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

7

Echo 22431920960

NUT - 12

$14.99

$

Usually ships in 2-4 days

0

8

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

9

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

10

Echo 60404405560

COLLAR

$4.49

$

Usually ships in 2-4 days

0

11

Echo 90080036002

BEARING, BALL - 6002

$14.99

$

Usually ships in 2-4 days

0

12

Echo 90016205050

SCREW - 5×55

$1.99

$

In Stock, Qty 15

0

13

Echo C531000182

CASE, GEAR

$70.99

$

Usually ships in 2-4 days

0

14

Echo 70300520960

LEVER, CLUTCH

$47.99

$

In Stock, only 1 left!

0

15

Echo P021005801

GEAR CASE ASY

Note: Includes Item 16

$69.99

$

Usually ships in 2-4 days

0

16

Echo 90033040080

PIN, LOCATING

$0.99

$

In Stock, Qty 20+

0

17

Echo V305000020

WASHER

$6.99

$

In Stock, only 1 left!

0

18

Echo V650000150

GEAR, SPUR

$22.99

$

In Stock, only 1 left!

0

19

Echo V204000070

BOLT, SHAFT

$15.99

$

In Stock, only 1 left!

0

20

Echo 90010010015

BOLT - 10×15

$1.49

$

In Stock, only 1 left!

0

21

Echo 89757005560

KEY, CHUCK

$19.99

$

Usually ships in 2-4 days

0

22

Echo 89757505560

CLAMP, CHUCK KEY

$6.99

$

Usually ships in 2-4 days

0

23

Echo P021005820

GEAR ASY

$65.99

$

Usually ships in 2-4 days

0

24

Echo 60422305560

WASHER

$3.49

$

Usually ships in 2-4 days

0

25

Echo 60422105560

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

26

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

27

Echo V451000090

SPRING, CLUTCH

$1.99

$

In Stock, Qty 9

0

28

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$15.99

$

In Stock, Qty 20+

0

29

Echo 17504956030

WASHER - SPRING

$1.49

$

In Stock, Qty 20+

0

30

Echo 17504656030

BOLT, SHAFT

$4.99

$

In Stock, Qty 9

0

31

Echo A556000250

DRUM, CLUTCH

$46.99

$

Usually ships in 2-4 days

0

32

Echo P021005831

FAN CASE ASY

Note: Includes Item 33

$60.99

$

Usually ships in 2-4 days

0

33

Echo 90033040080

PIN, LOCATING

$0.99

$

In Stock, Qty 20+

0

34

Echo 90016205018

SCREW - 5×18

$0.99

$

In Stock, Qty 9

0

35

Echo 90080106002

BEARING, BALL - 6002D

$15.99

$

Usually ships in 2-4 days

0

36

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

37

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

38

Echo V650000140

GEAR, SPUR

$45.99

$

Usually ships in 2-4 days

0

39

Echo P021005840

CAM, CLUTCH ADJUSTER

$46.99

$

Usually ships in 2-4 days

0

40

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 4 left!

0

41

Echo V650000130

GEAR, SPUR

$45.99

$

Usually ships in 2-4 days

0

42

Echo 90032504016

KEY - 4×16

$2.99

$

In Stock, only 3 left!

0

43

Echo 60602120960

SHAFT, GEAR

$76.99

$

In Stock, only 1 left!

0
