EDR-260 - Echo Reversible Engine Drill (SN: E01807001001 - E01807999999) Intake Parts Diagram

Reversible Engine Drill

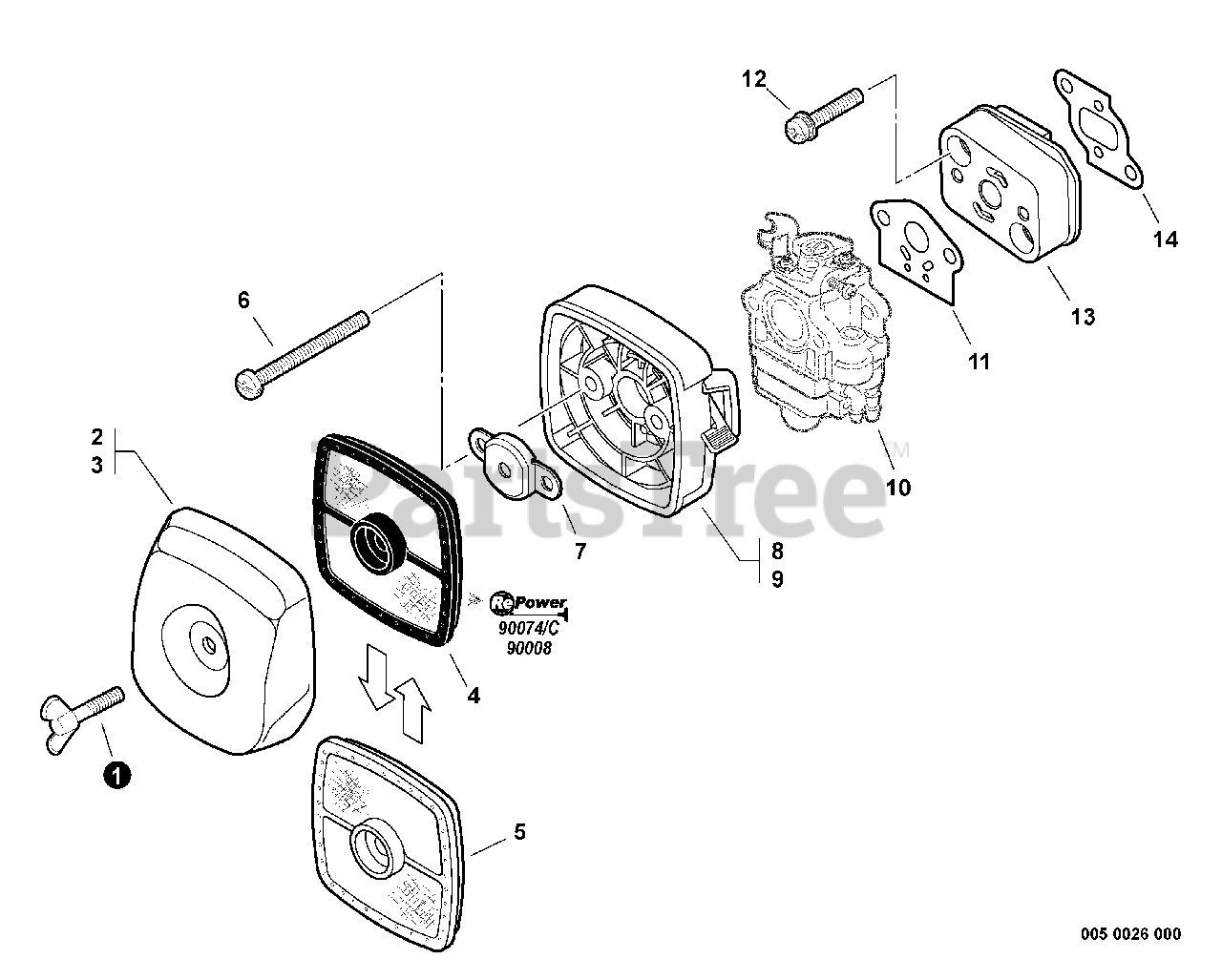

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

4

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included In RePower KIT

$7.49

$

In Stock, Qty 20+

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$7.49

$

In Stock, Qty 20+

0

6

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 12

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

Echo P021000991

CASE, AIR FILTER - GRAY

$9.49

$

In Stock, Qty 20+

0

9

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

10

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

11

Echo 13001013410

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

12

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

14

Echo 13001055930

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 17

0

15

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: CANADA MODELS

$20.99

$

In Stock, Qty 19

0

15

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0

16

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0
