EDR-260 - Echo Reversible Engine Drill (SN: E01705001001 - E01705999999) Fuel System S/N: E01705001001 - E01705008966 Parts Diagram

Reversible Engine Drill

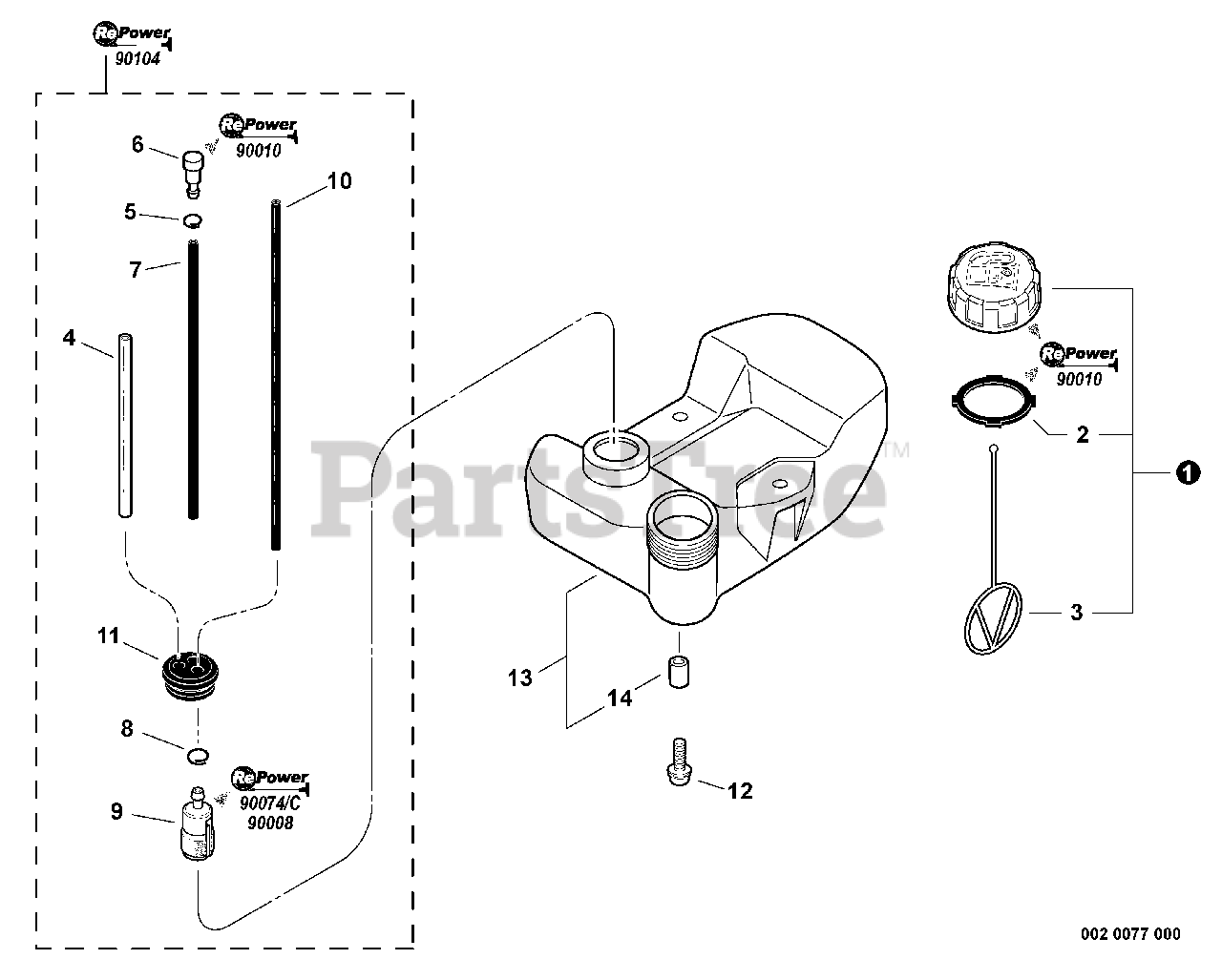

Fuel System S/N: E01705001001 - E01705008966 Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEM 2-3

$6.49

$

In Stock, Qty 6

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

Note: Included In RePower KIT

$1.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT, FUEL TANK

Note: Included In RePower KIT

$7.99

$

Usually ships in 2-4 days

0

7

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.49

$

In Stock, Qty 20+

0

10

Echo 13201052030

PIPE - 3X6X170 -- BLACK
(Superseded to 13201052031)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 20+

0

11

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

12

Echo 90023905016

SCREW - 5X16
(Superseded to Discontinued)

$

$

Not available

13

Echo 13100555932

FUEL TANK ASSY

Note: Includes ITEM 14

$38.99

$

Usually ships in 2-4 days

0

14

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

15

Echo 90104

RePower FUEL SYSTEM KIT
(Superseded to 90104Y)

$22.99

$

In Stock, Qty 20+

0

16

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

16

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: CANADA MODELS

$20.99

$

In Stock, Qty 20+

0

17

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

18

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
