EDR-2400 - Echo Reversible Engine Drill (Type 1E) Carburetor Parts Diagram

Reversible Engine Drill (Type 1E)

Carburetor Parts Diagram

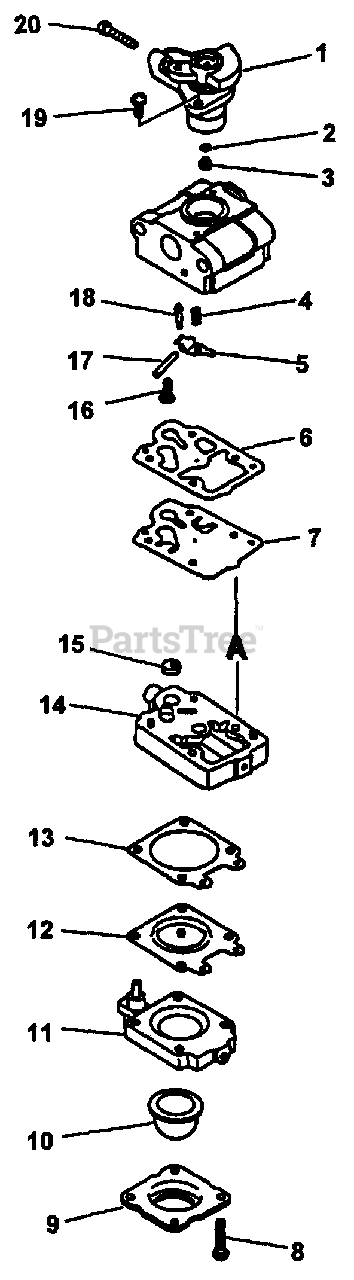

  • Title

Echo 12300021360

CARBURETOR WYL-56
(Superseded to 12300021361)

Note: Includes ITEMS 1-20

$74.99

$

Usually ships in 2-4 days

0

1

Echo 12311605560

VALVE, THROTTLE

$18.99

$

Usually ships in 2-4 days

0

2

------------------

O-RING

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

3

------------------

JET - 38

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

4

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

5

------------------

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

6

------------------

GASKET, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

7

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

8

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

9

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

10

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

11

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

12

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

13

------------------

GASKET, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560

$

$

Not available

14

------------------

BASE, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

15

------------------

STRAINER

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

16

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

17

------------------

PIN, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

18

------------------

VALVE, INLET

Note: INCLUDED IN REBUILD KIT P/N 12310021360

$

$

Not available

19

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

Echo 12310021360

REPAIR KIT
(Superseded to 12310005560)

$30.99

$

Usually ships in 2-4 days

0

Echo 12310105560

DIAPHRAGM/GASKET KIT

$5.99

$

In Stock, only 1 left!

0
