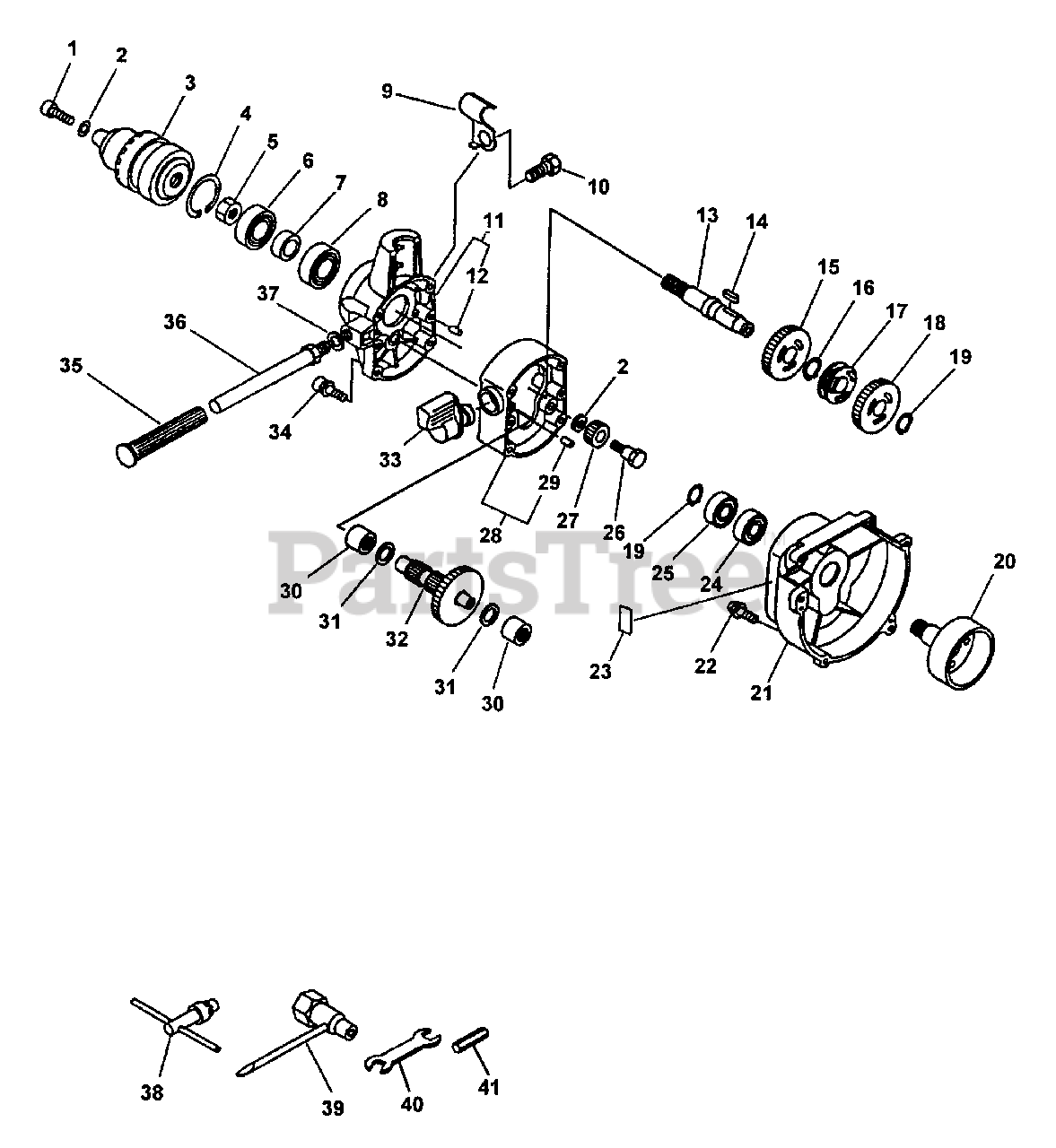

EDR-2100 - Echo Reversible Engine Drill (Type 1E) Gear Case, Chuck, Fan Cover, Tools Parts Diagram

Reversible Engine Drill (Type 1E)

Gear Case, Chuck, Fan Cover, Tools Parts Diagram

  • Title

1

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, only 3 left!

0

2

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

3

Echo 60405105560

CHUCK

$137.99

$

In Stock, only 1 left!

0

4

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

5

Echo 22431920960

NUT - 12

$14.99

$

Usually ships in 2-4 days

0

6

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

7

Echo 60404405560

COLLAR

$4.49

$

Usually ships in 2-4 days

0

8

Echo 90080036002

BEARING, BALL - 6002

$14.99

$

Usually ships in 2-4 days

0

9

Echo 89757505560

SPRING, FLAT

Note: TYPE 1E S/N 501001 & UP

$6.99

$

Usually ships in 2-4 days

0

10

Echo 90010010015

BOLT - 10X15

Note: TYPE 1E S/N 501001 & UP

$1.49

$

In Stock, only 1 left!

0

11

Echo 60430520960

GEAR CASE ASSY

Note: Includes ITEM 12

$84.99

$

Usually ships in 2-4 days

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

Echo 60602120960

SHAFT, AXLE

$76.99

$

In Stock, only 1 left!

0

14

Echo 90032504016

KEY - 4X16

$2.99

$

In Stock, only 3 left!

0

15

Echo 60421320960

GEAR - SPUR

$49.99

$

In Stock, only 3 left!

0

16

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 2 left!

0

17

Echo 60423520960

NAIL, CLUTCH

$45.99

$

In Stock, only 1 left!

0

18

Echo 60422420960

GEAR - SPUR

$49.99

$

In Stock, Qty 5

0

19

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

20

Echo 17500505560

DRUM, CLUTCH

$60.99

$

Usually ships in 2-4 days

0

21

Echo 10151120960

CASE, FAN

$66.99

$

Usually ships in 2-4 days

0

22

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

23

Echo 89019405560

LABEL - HOT SURFACE
(Superseded to 89016006361)

$1.99

$

In Stock, Qty 20+

0

24

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 2 left!

0

25

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, only 3 left!

0

26

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

27

Echo 60531120960

GEAR - SPUR

$25.99

$

Usually ships in 2-4 days

0

28

Echo 60430620960

CASE, GEAR

Note: Includes ITEM 29

$63.99

$

Usually ships in 2-4 days

0

29

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

30

Echo 60422105560

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

31

Echo 60422305560

WASHER

$3.49

$

Usually ships in 2-4 days

0

32

Echo 60420620960

GEAR - SHAFT
(Superseded to 60420620961)

$69.99

$

In Stock, only 3 left!

0

33

Echo 70300520960

LEVER, CLUTCH

$47.99

$

In Stock, only 1 left!

0

34

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

35

Echo 35151522330

GRIP, HANDLE
(Superseded to 35131128330)

$6.99

$

In Stock, Qty 5

0

36

Echo 35121005560

HANDLE - FRONT

$21.99

$

In Stock, only 3 left!

0

37

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

38

Echo 89757005560

KEY, CHUCK

$19.99

$

In Stock, only 2 left!

0

39

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

40

Echo 89512220960

SPANNER - 17X19mm

$18.99

$

In Stock, only 1 left!

0

41

Echo 89541220960

HEX BAR

$

$

Not available
