EDR-210 - Echo Reversible Engine Drill (SN: E52313001001 - E52313999999) Gear Case Parts Diagram

Reversible Engine Drill

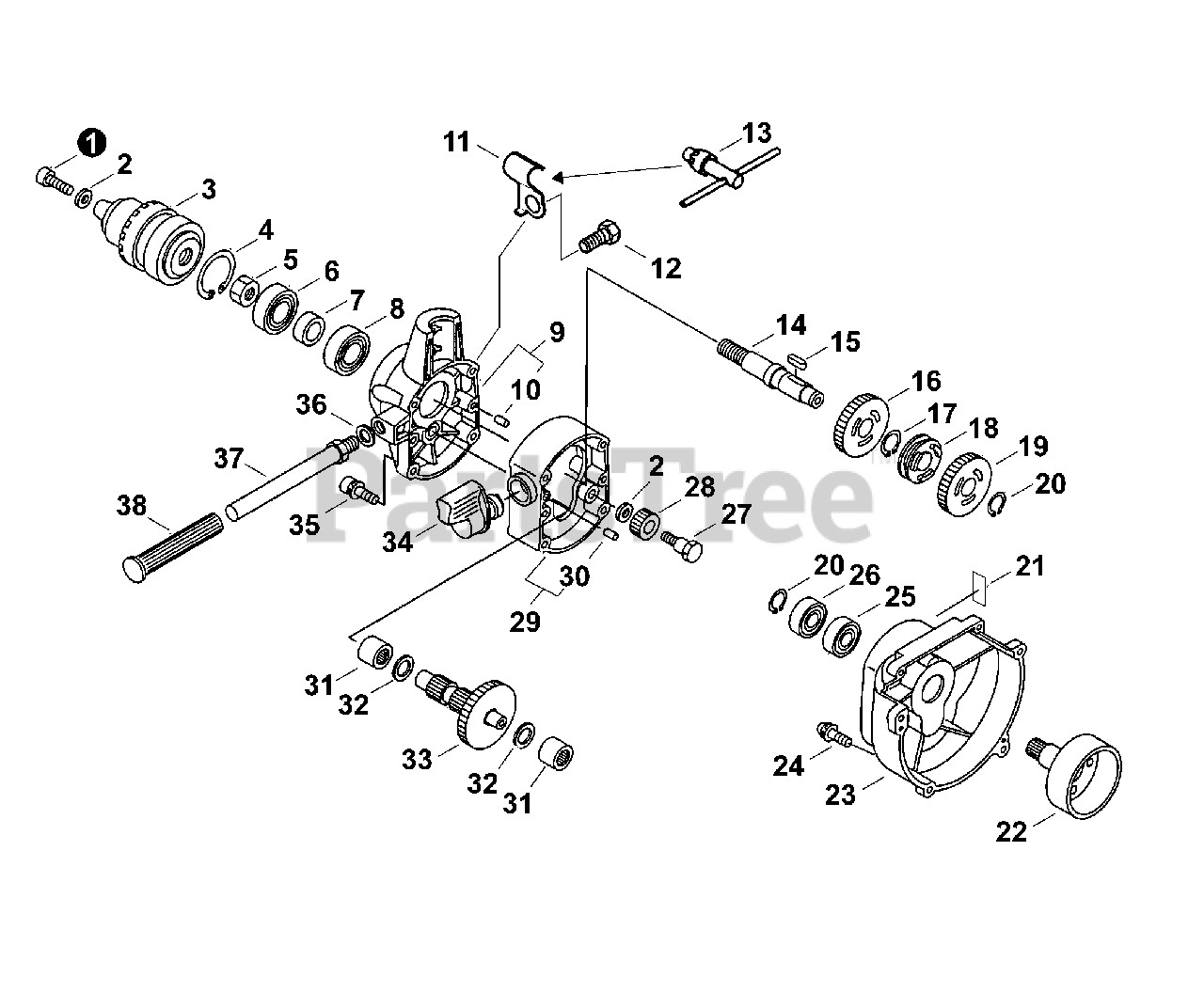

Gear Case Parts Diagram

  • Title

1

Echo 90010506020

SCREW - 6×20

$1.49

$

In Stock, only 3 left!

0

2

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

3

Echo 60405105560

CHUCK

$137.99

$

In Stock, only 1 left!

0

4

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

5

Echo 22431920960

NUT - 12

$14.99

$

Usually ships in 2-4 days

0

6

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

7

Echo 60404405560

COLLAR

$4.49

$

Usually ships in 2-4 days

0

8

Echo 90080036002

BEARING, BALL - 6002

$14.99

$

Usually ships in 2-4 days

0

9

Echo 60430520960

GEAR CASE ASY

Note: Includes Item 10

$84.99

$

Usually ships in 2-4 days

0

10

Echo 90033040080

PIN, DOWEL

$0.99

$

In Stock, Qty 20+

0

11

Echo 89757505560

SPRING, FLAT

$6.99

$

Usually ships in 2-4 days

0

12

Echo 90010010015

BOLT - 10×15

$1.49

$

In Stock, only 1 left!

0

13

Echo 89757005560

KEY, CHUCK

$19.99

$

Usually ships in 2-4 days

0

14

Echo 60602120960

SHAFT, AXLE

$76.99

$

In Stock, only 1 left!

0

15

Echo 90032504016

KEY, WOODRUFF - 4×16

$2.99

$

In Stock, only 3 left!

0

16

Echo 60421320960

GEAR, SPUR

$49.99

$

In Stock, only 3 left!

0

17

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 4 left!

0

18

Echo 60423520960

NAIL, CLUTCH

$45.99

$

In Stock, only 1 left!

0

19

Echo 60422420960

GEAR, SPUR

$49.99

$

In Stock, Qty 5

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo X505002310

LABEL - CAUTION -- HOT

$1.99

$

In Stock, Qty 20+

0

22

Echo 17500505560

DRUM, CLUTCH

$60.99

$

Usually ships in 2-4 days

0

23

Echo 10151120960

CASE, FAN

$66.99

$

Usually ships in 2-4 days

0

24

Echo 90024204016

SCREW - 4×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 90080206001

BEARING, BALL - 6001
(Superseded to 9404206001)

$9.99

$

In Stock, only 4 left!

0

26

Echo 90080036001

BEARING, BALL - 6001

$9.49

$

In Stock, only 1 left!

0

27

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

28

Echo 60531120960

GEAR, SPUR

$25.99

$

Usually ships in 2-4 days

0

29

Echo 60430620960

CASE, GEAR

Note: Includes Item 30

$63.99

$

Usually ships in 2-4 days

0

30

Echo 90033040080

PIN, DOWEL

$0.99

$

In Stock, Qty 20+

0

31

Echo 60422105560

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

32

Echo 60422305560

WASHER

$3.49

$

Usually ships in 2-4 days

0

33

Echo 60420620961

GEAR, SHAFT

$69.99

$

In Stock, only 3 left!

0

34

Echo 70300520960

LEVER, CLUTCH

$47.99

$

In Stock, only 1 left!

0

35

Echo 90016205050

SCREW - 5×55

$1.99

$

In Stock, Qty 15

0

36

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

37

Echo C400000090

HANDLE - FRONT

$45.99

$

In Stock, Qty 17

0

38

Echo 35131128330

GRIP, HANDLE

$6.99

$

In Stock, Qty 8

0
