EDR-210 - Echo Reversible Engine Drill (SN: E52313001001 - E52313999999) Engine, Cylinder Cover Parts Diagram

Reversible Engine Drill

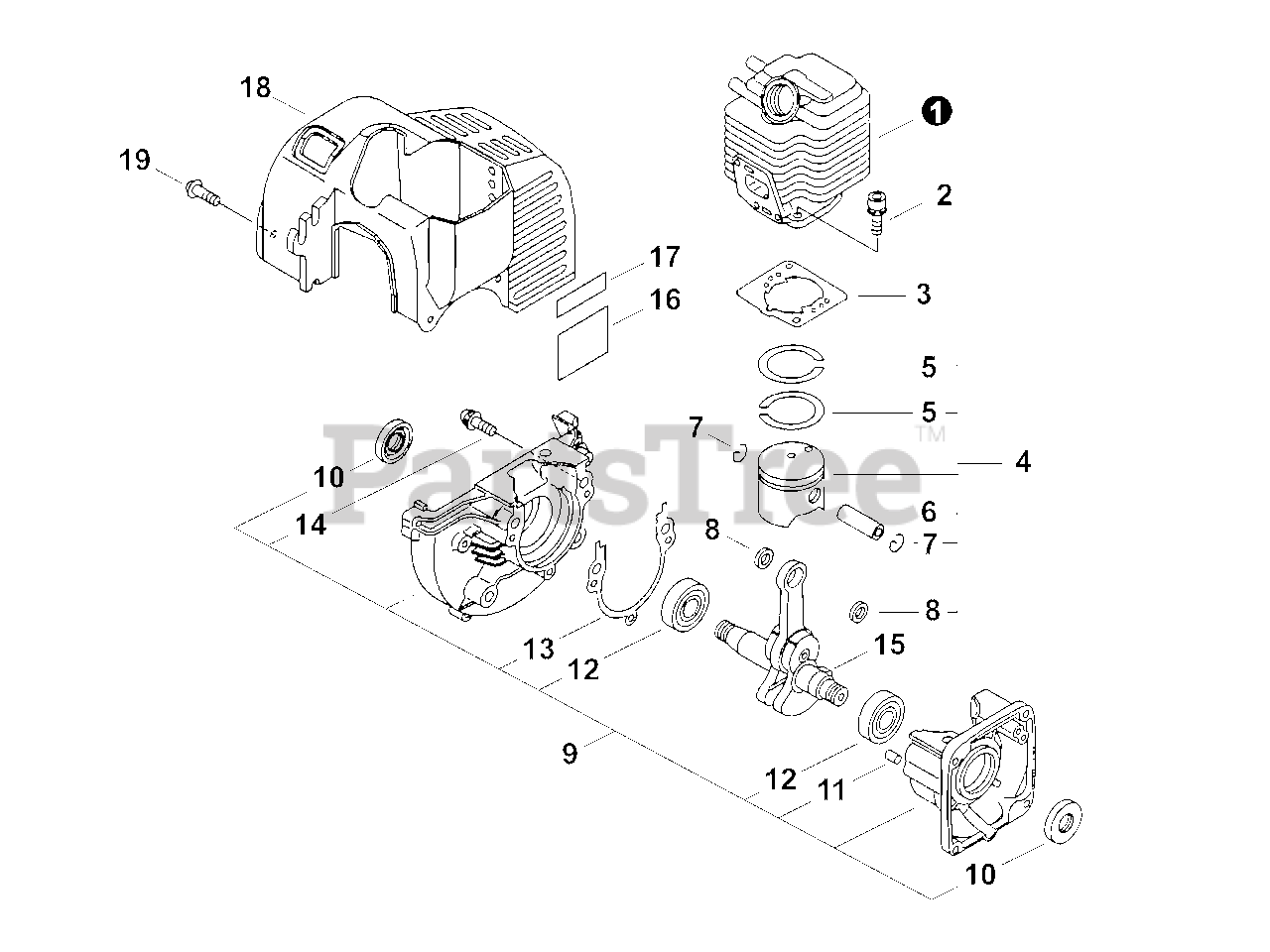

Engine, Cylinder Cover Parts Diagram

  • Title

1

Echo A130000430

CYLINDER

$120.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo V100000080

GASKET, CYLINDER

$5.99

$

In Stock, only 1 left!

0

4

Echo P021001102

PISTON KIT

Note: Includes Items 5-8

$77.99

$

In Stock, Qty 5

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10020452133

CRANKCASE KIT

Note: Includes Items 10-14

$140.99

$

Usually ships in 2-4 days

0

10

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

11

Echo 90033040080

PIN, DOWEL

$0.99

$

In Stock, Qty 20+

0

12

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

13

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

14

Echo 90016205028

SCREW - 5×28

$1.99

$

In Stock, Qty 20+

0

15

Echo A011000101

CRANKSHAFT ASY
(Superseded to A011001410)

$155.99

$

In Stock, only 1 left!

0

16

Echo X505002570

LABEL - CAUTION

$7.99

$

Usually ships in 2-4 days

0

17

Echo X503009430

LABEL - MODEL -- EDR-210

$3.99

$

Usually ships in 2-4 days

0

18

Echo 10151424360

COVER, ENGINE

$34.99

$

Usually ships in 2-4 days

0

19

Echo 90024204012

SCREW - 4×12

$0.99

$

In Stock, Qty 20+

0
