EDR-210 - Echo Reversible Engine Drill (SN: E52313001001 - E52313999999) Carburetor Parts Diagram

Reversible Engine Drill

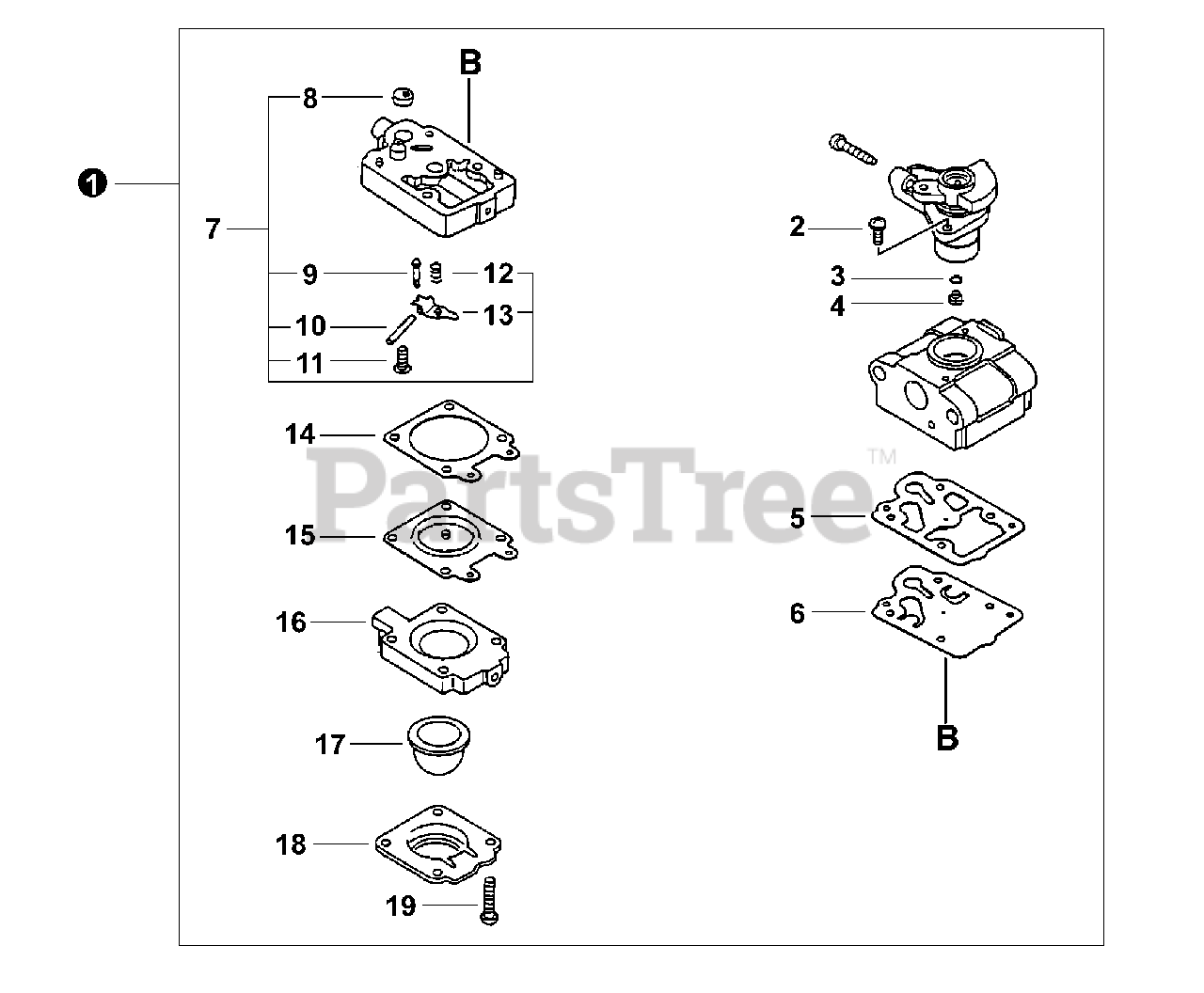

Carburetor Parts Diagram

  • Title

1

Echo A021000541

CARBURETOR -- WYL-180A

Note: Includes Items 2-19

$82.99

$

In Stock, only 2 left!

0

2

Echo 12311444330

SCREW, VALVE

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12318340630

O-RING
(Superseded to 12318305960)

$1.99

$

In Stock, Qty 5

0

4

Echo P003000470

JET

$4.49

$

Usually ships in 2-4 days

0

5

Echo 12312540630

GASKET, PUMP

$4.99

$

In Stock, only 1 left!

0

6

Echo 12311240630

DIAPHRAGM, PUMP

$12.99

$

In Stock, only 1 left!

0

7

Echo 12317905560

BASE, PURGE

Note: Includes Items 8-13

$16.99

$

In Stock, only 1 left!

0

8

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

9

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

10

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

11

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12312205560

SPRING, METERING LEVER

$3.99

$

Usually ships in 2-4 days

0

13

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

14

Echo 12314005560

GASKET, METERING

$3.99

$

In Stock, only 2 left!

0

15

Echo P003000090

DIAPHRAGM, METERING

$17.99

$

In Stock, only 1 left!

0

16

Echo 12318005560

BASE, PURGE

$7.49

$

In Stock, only 1 left!

0

17

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

18

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

19

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0
