EDR-210 - Echo Reversible Engine Drill (SN: E52212001001 - E52212999999) Starter, Ignition Parts Diagram

Reversible Engine Drill

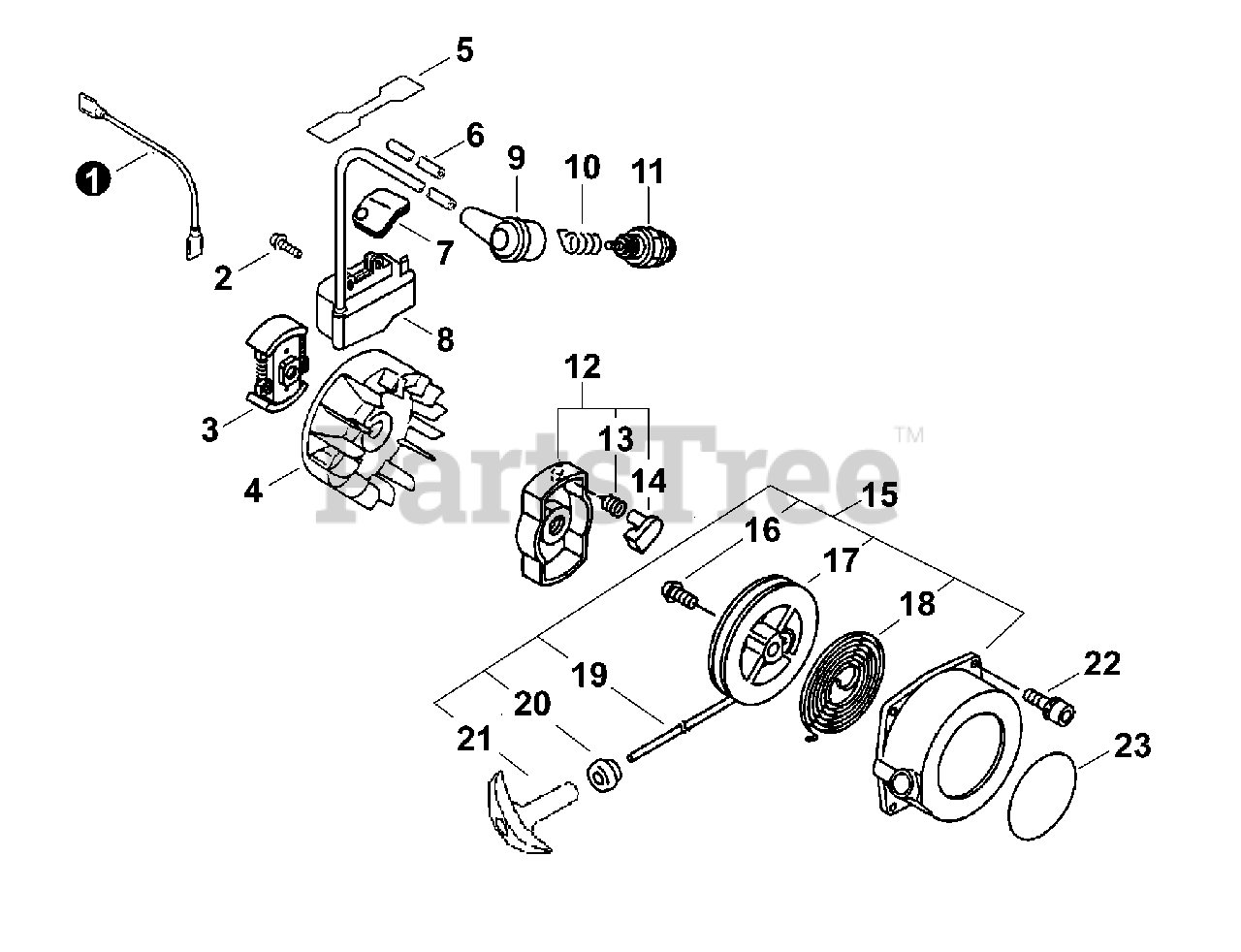

Starter, Ignition Parts Diagram

  • Title

1

Echo V485000290

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

2

Echo 90016204020

SCREW - 4×20

$1.49

$

In Stock, Qty 20+

0

3

Echo 17500052131

CLUTCH ASY

$39.99

$

Usually ships in 2-4 days

0

4

Echo A409000160

FLYWHEEL

$63.99

$

Usually ships in 2-4 days

0

5

Echo X532000671

LABEL - SPARK PLUG -- BPM8Y

$0.99

$

In Stock, Qty 20+

0

6

Echo 15611054930

TUBE, INSULATOR

$1.99

$

In Stock, Qty 20+

0

7

Echo 15011242030

GROMMET

$2.99

$

Usually ships in 2-4 days

0

8

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$70.99

$

In Stock, Qty 20+

0

9

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

10

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

11

Echo 15901019830

SPARK PLUG -- BPM8Y

$3.49

$

In Stock, Qty 20+

0

12

Echo 17720244331

STARTER PAWL ASY
(Superseded to 17720212220)

Note: Includes Items 13-14

$16.99

$

In Stock, Qty 18

0

13

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

14

Echo 17721844330

PAWL, STARTER

$3.49

$

In Stock, Qty 20+

0

15

Echo 17720044433

STARTER ASY
(Superseded to 17720042033)

Note: Includes Items 16-21

$49.99

$

In Stock, Qty 20+

0

16

Echo 17722811520

SCREW
(Superseded to 17722806530)

$4.99

$

In Stock, Qty 20+

0

17

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

18

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 6

0

19

Echo 17722644330

ROPE, STARTER

$

$

Currently unavailable

20

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

21

Echo 17722844330

GRIP, STARTER

$8.49

$

In Stock, only 1 left!

0

22

Echo 90016204016

SCREW - 4×16
(Superseded to 90016304016)

$1.49

$

In Stock, Qty 20+

0

23

Echo X502000330

LABEL - ECHO

$0.99

$

In Stock, Qty 20+

0
