EDR-210 - Echo Reversible Engine Drill (SN: 07001001 - 07999999) Intake, Exhaust Parts Diagram

Reversible Engine Drill

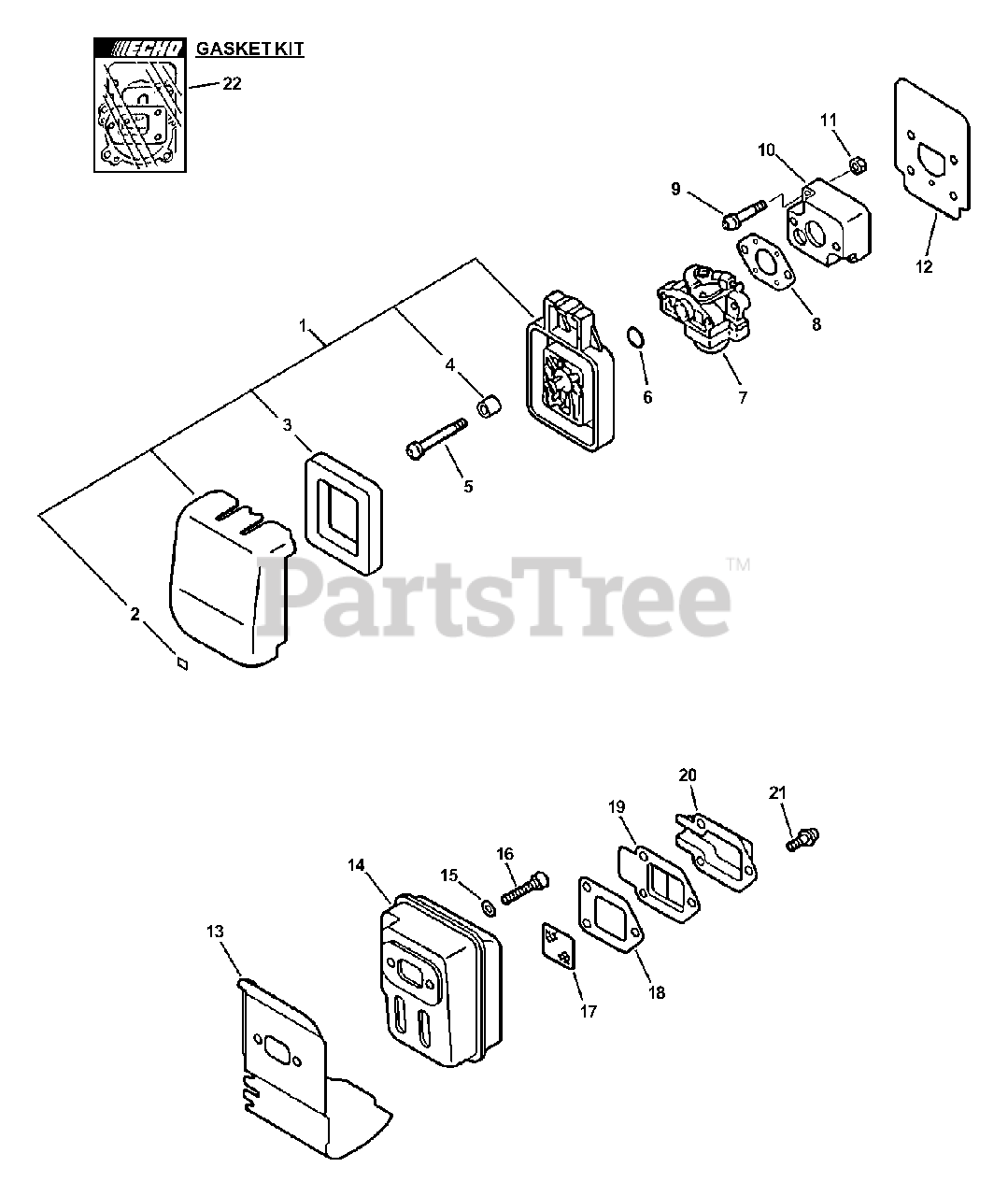

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13030020960

AIR CLEANER ASSY

Note: INCLUDES ITEMS 2-4

$32.99

$

In Stock, only 2 left!

0

2

Echo 89099120960

LABEL

$1.99

$

Usually ships in 2-4 days

0

3

Echo 13031044330

FILTER, AIR

$4.99

$

In Stock, Qty 8

0

4

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

5

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

6

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

7

Echo A021000541

CARBURETOR WYL-180A

$82.99

$

In Stock, only 2 left!

0

8

Echo 13001044431

GASKET, INTAKE

$2.49

$

In Stock, Qty 12

0

9

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

10

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

In Stock, only 1 left!

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

13

Echo 14551044331

GASKET, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

14

Echo 14585805560

MUFFLER
(Superseded to Discontinued)

$

$

Not available

15

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

17

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

18

Echo V104000003

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

19

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

20

Echo A313000041

GUIDE, EXHAUST - OUTER

$3.99

$

Usually ships in 2-4 days

0

21

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

22

Echo P021004810

GASKET KIT

$12.99

$

Usually ships in 2-4 days

0
