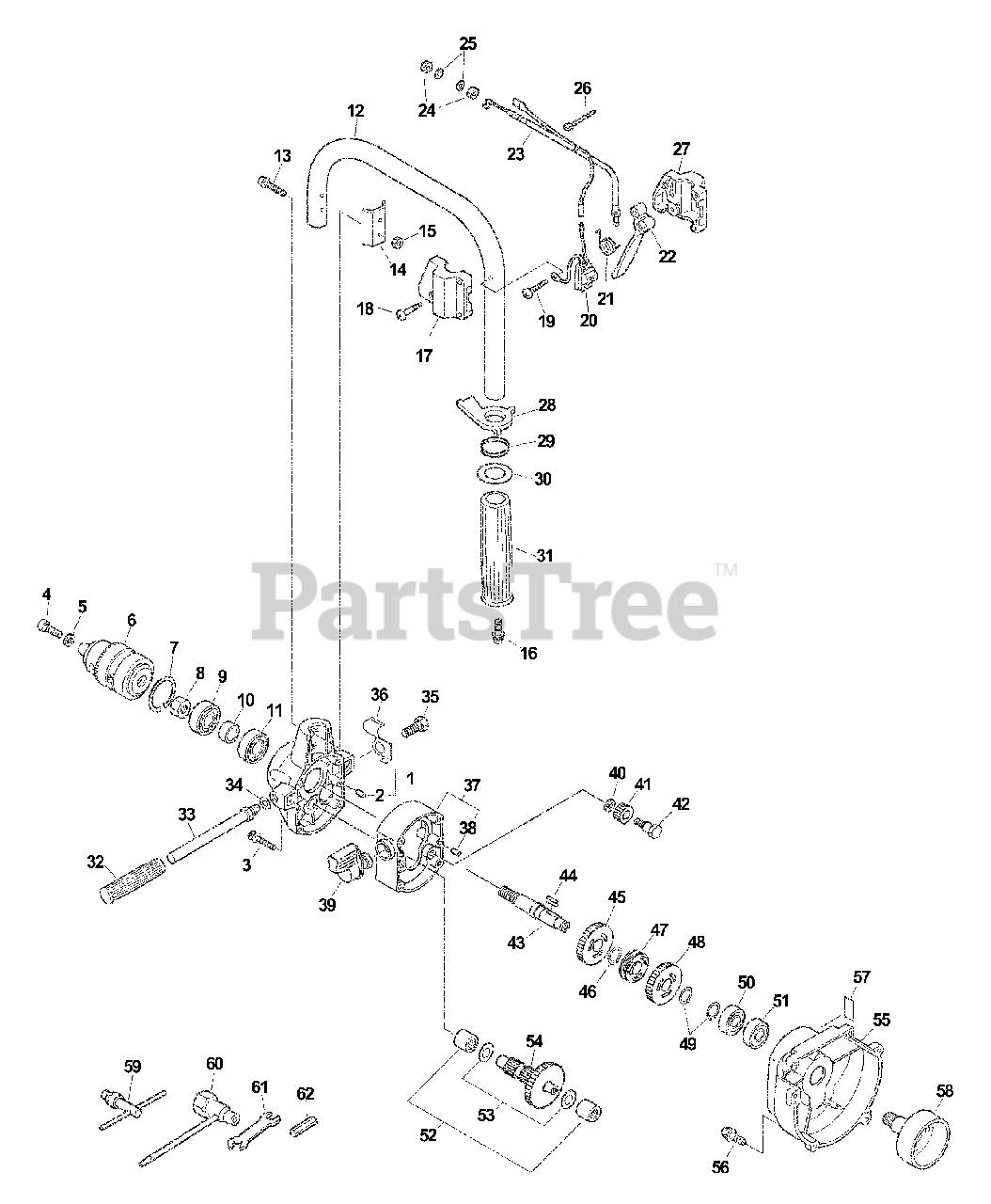

EDR-210 - Echo Reversible Engine Drill (SN: 07001001 - 07999999) Chuck, Gear Case, Handle, Tools Parts Diagram

Reversible Engine Drill

Chuck, Gear Case, Handle, Tools Parts Diagram

  • Title

1

Echo 60430520960

GEAR CASE ASSY

Note: Includes ITEM 2

$84.99

$

Usually ships in 2-4 days

0

2

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

3

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

4

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, only 3 left!

0

5

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

6

Echo 60405105560

CHUCK

$137.99

$

In Stock, only 1 left!

0

7

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

8

Echo 22431920960

NUT - 12

$14.99

$

Usually ships in 2-4 days

0

9

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

10

Echo 60404405560

COLLAR

$4.49

$

Usually ships in 2-4 days

0

11

Echo 90080036002

BEARING, BALL - 6002

$14.99

$

Usually ships in 2-4 days

0

12

Echo 35130520960

HANDLE - REAR

$83.99

$

In Stock, only 1 left!

0

13

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

14

Echo 35164105560

PLATE, HANDLE

$5.99

$

Usually ships in 2-4 days

0

15

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

16

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

17

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$3.99

$

In Stock, only 1 left!

0

18

Echo 90024504025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0

19

Echo 90024504030

SCREW - 4X30

$0.99

$

In Stock, Qty 9

0

20

Echo 16340004460

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

21

Echo 17804301260

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

22

Echo 17801007660

TRIGGER, THROTTLE

$4.49

$

In Stock, only 1 left!

0

23

Echo 17810009060

CONTROL CABLE ASSY
(Superseded to 17810009061)

$13.99

$

In Stock, Qty 10

0

24

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

25

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

26

Echo 17812156030

TIE, CABLE

$2.49

$

Usually ships in 2-4 days

0

27

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$3.99

$

In Stock, only 1 left!

0

28

Echo 17801202061

LEVER, TRIGGER LOCKOUT

$5.49

$

Usually ships in 2-4 days

0

29

Echo 17801302060

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

30

Echo 17807002061

SPACER

$1.99

$

In Stock, only 3 left!

0

31

Echo 35131527931

GRIP, HANDLE - RIGHT

$5.49

$

In Stock, only 1 left!

0

32

Echo 35151522330

GRIP, HANDLE
(Superseded to 35131128330)

$6.99

$

In Stock, Qty 6

0

33

Echo 35121005560

HANDLE - FRONT

$21.99

$

In Stock, only 3 left!

0

34

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

35

Echo 90010010015

BOLT - 10X15

$1.49

$

In Stock, only 1 left!

0

36

Echo 89757505560

SPRING, FLAT

$6.99

$

Usually ships in 2-4 days

0

37

Echo 60430620960

CASE, GEAR

Note: Includes ITEM 38

$63.99

$

Usually ships in 2-4 days

0

38

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

39

Echo 70300520960

LEVER, CLUTCH

$47.99

$

In Stock, only 1 left!

0

40

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

41

Echo 60531120960

GEAR - SPUR

$25.99

$

Usually ships in 2-4 days

0

42

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

43

Echo 60602120960

SHAFT, AXLE

$76.99

$

In Stock, only 1 left!

0

44

Echo 90032504016

KEY - 4X16

$2.99

$

In Stock, only 3 left!

0

45

Echo 60421320960

GEAR - SPUR

$49.99

$

In Stock, only 3 left!

0

46

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 4 left!

0

47

Echo 60423520960

NAIL, CLUTCH

$45.99

$

In Stock, only 1 left!

0

48

Echo 60422420960

GEAR - SPUR

$49.99

$

In Stock, Qty 5

0

49

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

50

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 6

0

51

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

52

Echo 60422105560

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

53

Echo 60422305560

WASHER

$3.49

$

Usually ships in 2-4 days

0

54

Echo 60420620961

GEAR - SHAFT

$69.99

$

In Stock, only 3 left!

0

55

Echo 10151120960

CASE, FAN

$66.99

$

Usually ships in 2-4 days

0

56

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

57

Echo 89019405560

LABEL - HOT SURFACE
(Superseded to 89016006361)

$1.99

$

In Stock, Qty 20+

0

58

Echo 17500505560

DRUM, CLUTCH

$60.99

$

Usually ships in 2-4 days

0

59

Echo 89757005560

KEY, CHUCK

$19.99

$

Usually ships in 2-4 days

0

60

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

61

Echo 89512220960

SPANNER - 17X19mm

$18.99

$

In Stock, only 1 left!

0

62

Echo 89541220960

HEX BAR

$

$

Not available
