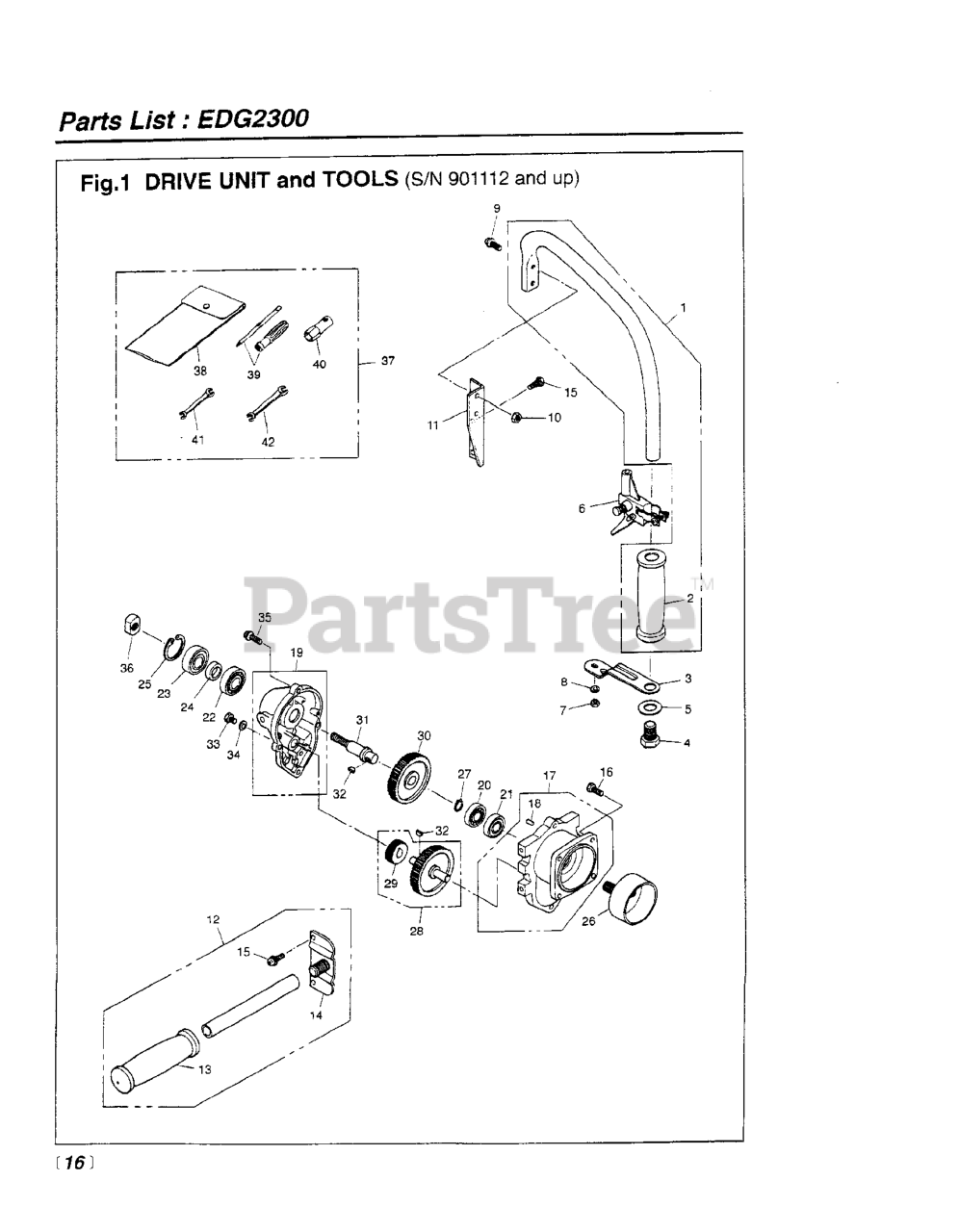

EDG 2300 - RedMax Engine Drill (SN: 901112 & Above) *Attachments Parts Diagram

Engine Drill

*Attachments Parts Diagram

  • Title

1

RedMax 515221101

HANDLE(A)

Note: . 2

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 515221301

GRIP

$10.99

$

Usually ships in 3-10 days

0

3

RedMax 515221701

STAY

$

$

Not available

4

RedMax 514370601

BOLT

$6.49

$

Usually ships in 3-10 days

0

5

RedMax 516078101

WASHER, M14 x 2.3

$1.49

$

Usually ships in 3-10 days

0

6

RedMax 514347501

LEVER

$27.99

$

Usually ships in 3-10 days

0

7

RedMax 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

8

RedMax 516076301

WASHER, SPRING M4 x 1.3

$3.49

$

Usually ships in 3-10 days

0

9

RedMax 510478501

SCREW

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

11

RedMax 515222601

BRACKET(A)

$9.99

$

Usually ships in 3-10 days

0

12

RedMax 515221401

HANDLE(B)

Note: . 13 14 15

$

$

Not available

13

RedMax 514367701

GRIP

$15.99

$

Usually ships in 3-10 days

0

14

RedMax 515222701

BRACKET(B)

$

$

Not available

15

RedMax 510456301

BOLT

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 510454401

BOLT

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 515245101

CASE A COMP

Note: . 18

$278.99

$

Usually ships in 3-10 days

0

18

RedMax 515245601

PIN

$1.49

$

Usually ships in 3-10 days

0

19

RedMax 515245701

CASE B COMP

$91.99

$

Usually ships in 3-10 days

0

20

RedMax 506610301

BEARING

$12.99

$

In Stock, only 3 left!

0

21

RedMax 516133001

BEARING

$14.99

$

Usually ships in 3-10 days

0

22

RedMax 516132401

$

$

Not available

23

RedMax 516133501

BEARING

$

$

Not available

24

RedMax 514120001

SPACER

$

$

Not available

25

RedMax 502849301

SNAP RING

$3.49

$

In Stock, only 3 left!

0

26

RedMax 515245901

DRUM

$84.99

$

Usually ships in 3-10 days

0

27

RedMax 516124101

RING

$4.99

$

In Stock, only 3 left!

0

28

RedMax 515222101

OBSOLETE - GEAR COMP

Note: . 29

$

$

Not available

29

RedMax 521285101

OBSOLETE - GEAR, IDLER

$

$

Not available

30

RedMax 515222401

$

$

Not available

31

RedMax 521300301

SHAFT, PTO

$60.99

$

Usually ships in 3-10 days

0

32

RedMax 516122101

KEY

$

$

Not available

33

RedMax 510447501

BOLT

$1.49

$

Usually ships in 3-10 days

0

34

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 505300201

$

$

Not available

36

RedMax 515222501

$

$

Not available

37

RedMax 515222801

TOOL SET

Note: . 38 39 40 41-42

$34.99

$

Usually ships in 3-10 days

0

38

RedMax 506744101

BAG

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 506689501

DRIVER

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 513181801

SOCKET

$

$

Not available

41

RedMax 506615001

SPANNER

$4.99

$

In Stock, Qty 10

0

42

RedMax 515221801

$

$

Not available
