EDG 2300 - RedMax Engine Drill (1997-12) 016 - DRIVE UNIT/TOOLS Parts Diagram

Engine Drill

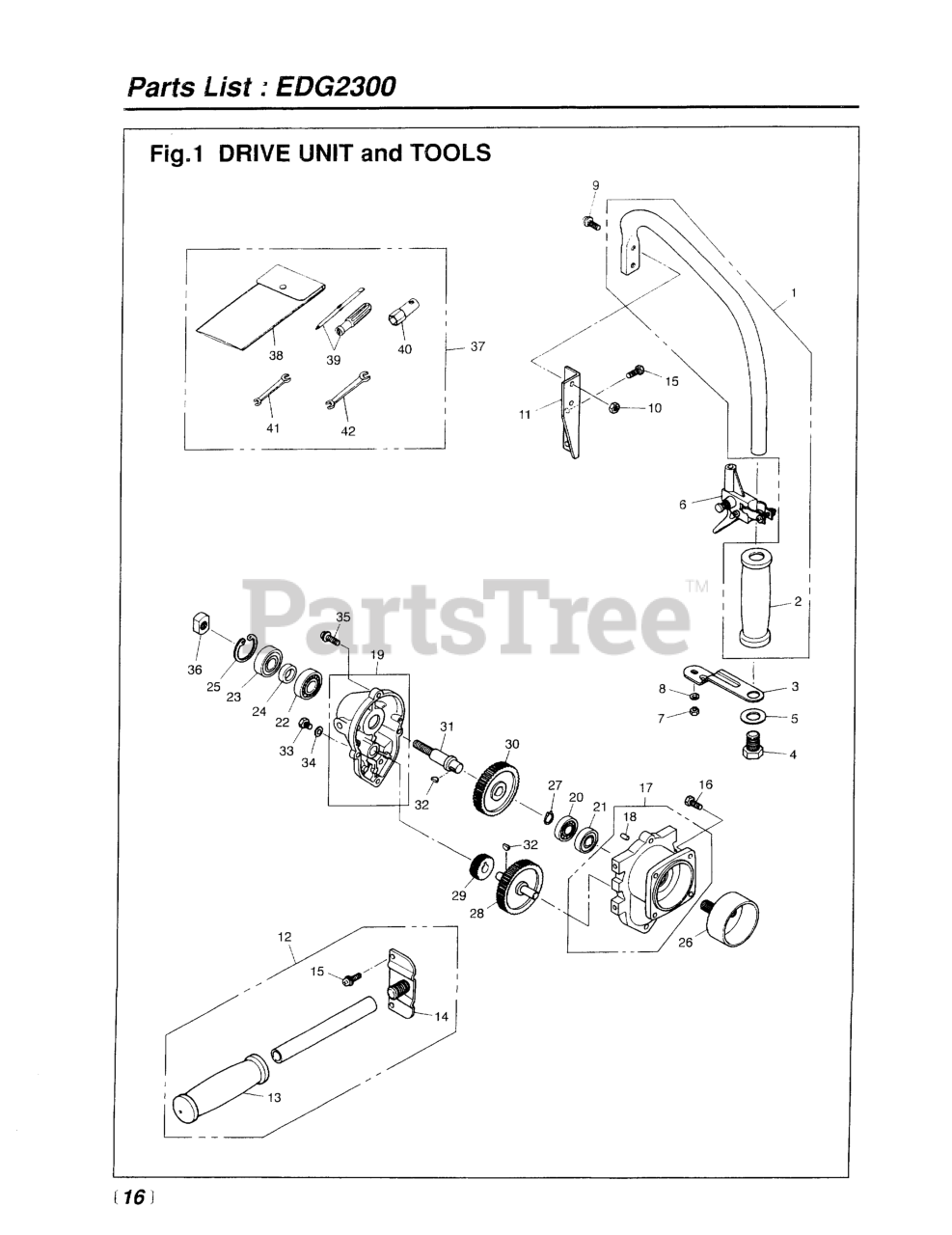

016 - DRIVE UNIT/TOOLS Parts Diagram

  • Title

1

RedMax 387121100

HANDLE, RIGHT
(Superseded to 515221101)

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 387121120

GRIP

$9.09

$

Usually ships in 3-10 days

0

3

RedMax 387121320

STAY
(Superseded to 515221701)

$

$

Not available

4

RedMax 354514240

BOLT

$2.72

$

Usually ships in 3-10 days

0

5

RedMax 0164121423

WASHER, M14 x 2.3
(Superseded to 516078101)

$1.49

$

Usually ships in 3-10 days

0

6

RedMax 352414400

LEVER, THROTTLE
(Superseded to 514347501)

$27.99

$

Usually ships in 3-10 days

0

7

RedMax 0028010504

NUT (M5X0.8)

$

$

Not available

8

RedMax 0160120513

WASHER, SPRING M4 x 1.3
(Superseded to 516076301)

$3.49

$

Usually ships in 3-10 days

0

9

RedMax 026330516

SCREW, M5 x 16
(Superseded to 516110201)

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

11

RedMax 387221510

BRACKET, RIGHT

$6.84

$

Usually ships in 3-10 days

0

12

RedMax 387121200

HANDLE, LEFT COMP

$19.53

$

Usually ships in 3-10 days

0

13

RedMax 354114221

GRIP (REPLACES -14220)

$9.57

$

Usually ships in 3-10 days

0

14

RedMax 387221520

BRACKET, LEFT

$

$

Not available

15

RedMax 022530616

BOLT, M6 x 16

$0.39

$

Usually ships in 3-10 days

0

16

RedMax 0022510616

BOLT

$

$

Not available

17

RedMax 389011101

3890-11102
(Superseded to 389011102)

$161.00

$

Usually ships in 3-10 days

0

18

RedMax 389011140

PIN, DOWEL

$1.14

$

Usually ships in 3-10 days

0

19

RedMax 389011200

CASE (USE -11201)

$

$

Not available

20

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 1 left!

0

21

RedMax 0603106001

BEARING

$9.03

$

Usually ships in 3-10 days

0

22

RedMax 0603006202

T4012-21240
(Superseded to 502849101)

$24.99

$

In Stock, only 4 left!

0

23

RedMax 0603406202

BEARING

$

$

Not available

24

RedMax 312713230

SPACER

$8.83

$

Usually ships in 3-10 days

0

25

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

26

RedMax 389012110

DRUM, CLUTCH
(Superseded to 515245901)

$84.99

$

Usually ships in 3-10 days

0

27

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

28

RedMax 387213100

GEAR, DRIVE(USE 13101)
(Superseded to 387213101)

$94.05

$

Usually ships in 3-10 days

0

29

RedMax 387213130

GEAR, IDLER
(Superseded to 521285101)

$

$

Not available

30

RedMax 387213140

GEAR, DRIVEN

$54.06

$

Usually ships in 3-10 days

0

31

RedMax 389013140

SHAFT, PTO
(Superseded to 521300301)

$60.99

$

Usually ships in 3-10 days

0

32

RedMax 0401000310

KEY
(Superseded to 516122101)

$

$

Not available

33

RedMax 0022400610

BOLT

$

$

Not available

34

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 331012281

BOLT M5 x 20 (RPLS -12280)
(Superseded to 520959101)

$3.49

$

Usually ships in 3-10 days

0

36

RedMax 387213150

NUT

$16.35

$

Usually ships in 3-10 days

0

37

RedMax 387291000

TOOL SET

$23.85

$

Usually ships in 3-10 days

0

38

RedMax 354191110

BAG

$0.89

$

Usually ships in 3-10 days

0

39

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

40

RedMax 111091320

SOCKET, HEX, 3/4

$3.44

$

Usually ships in 3-10 days

0

41

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

42

RedMax 387191350

WRENCH (TOOL)

$9.57

$

Usually ships in 3-10 days

0
