EDG 2300 R - RedMax Engine Drill (SN: 50200101 - 60000100) (2005-06) 002 - GEAR CASE / HANDLE / TOOLS Parts Diagram

Engine Drill

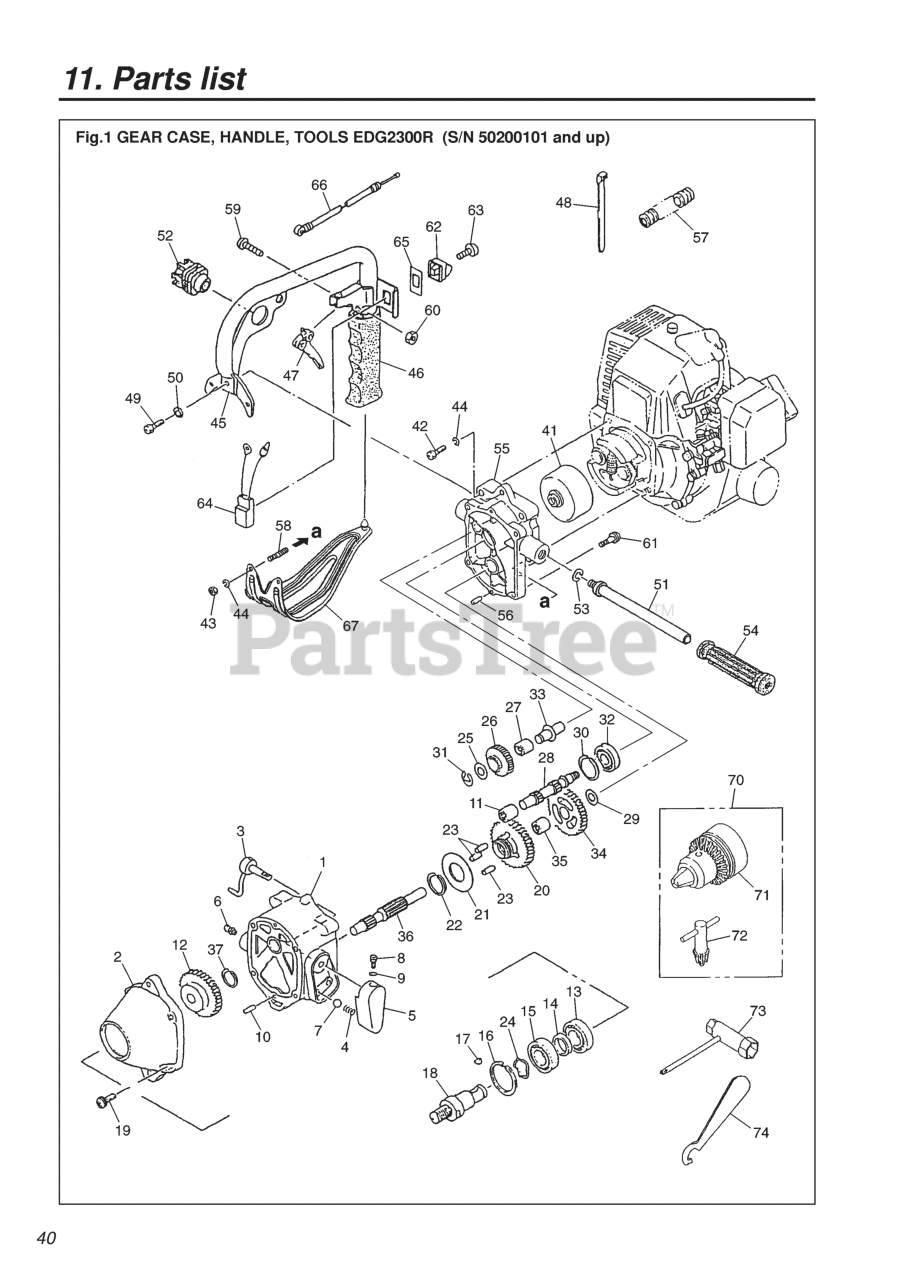

002 - GEAR CASE / HANDLE / TOOLS Parts Diagram

  • Title
1

RedMax TA0023214120

GEARCASE A

$67.93

$

Usually ships in 3-10 days

0

2

RedMax TA0063210A80

GEAR CASE B COMP.

$

$

Not available

3

RedMax TA0893214180

SHIFT FORK COMP.

$43.02

$

Usually ships in 3-10 days

0

4

RedMax TA1063214120

SHIFT GUIDE SPRING

$0.89

$

Usually ships in 3-10 days

0

5

RedMax TA1083214120

SHIFT LEVER

$4.76

$

Usually ships in 3-10 days

0

6

RedMax TA3003225080

GREASE NIPPLE COMP.

$1.79

$

Usually ships in 3-10 days

0

7

RedMax TA6733560020

STEEL BALL

$

$

Not available

8

RedMax TA99051040083

HEX HOLE BOLT

$0.47

$

Usually ships in 3-10 days

0

$0.26

$

Usually ships in 3-10 days

0

10

$0.47

$

Usually ships in 3-10 days

0

11

RedMax TA99962091211

NEEDLE BRG TLA912 1.5X5.8

$13.61

$

Usually ships in 3-10 days

0

12

RedMax TA0183218220

GEAR 4
(Superseded to 512982301)

$

$

Not available

13

RedMax TA99961720221

BALL BEARING

$27.16

$

Usually ships in 3-10 days

0

14

RedMax TA0403212020

BEARING WASHER

$3.37

$

Usually ships in 3-10 days

0

15

RedMax TA99961620202

BALL BEARING

$11.31

$

Usually ships in 3-10 days

0

16

$1.34

$

Usually ships in 3-10 days

0

17

RedMax TA0680100620

WOOD-RUFF KEY 3X13X5

$1.34

$

Usually ships in 3-10 days

0

18

RedMax TA0223218320

DRIVE SHAFT

$33.97

$

Usually ships in 3-10 days

0

$0.28

$

Usually ships in 3-10 days

0

20

RedMax TA0603214120

FORWARD GEAR

$86.06

$

Usually ships in 3-10 days

0

21

RedMax TA1403214120

THRUST WASHER 2

$7.69

$

Usually ships in 3-10 days

0

22

$1.34

$

Usually ships in 3-10 days

0

23

RedMax TA99905061200

NEEDLE ROLLER

$1.15

$

Usually ships in 3-10 days

0

24

RedMax TA99209350030

WAVE WASHER

$0.89

$

Usually ships in 3-10 days

0

25

RedMax TA1413214120

THRUST WASHER 0.8

$1.91

$

Usually ships in 3-10 days

0

26

$33.97

$

Usually ships in 3-10 days

0

27

RedMax TA99962091211

NEEDLE BRG TLA912 1.5X5.8

$13.61

$

Usually ships in 3-10 days

0

28

RedMax TA0623214120

INPUT SHAFT

$54.32

$

Usually ships in 3-10 days

0

29

RedMax TA1413214120

THRUST WASHER 0.8

$1.91

$

Usually ships in 3-10 days

0

30

$0.69

$

Usually ships in 3-10 days

0

31

RedMax TA99355080001

E TYPE STOP RING

$0.47

$

Usually ships in 3-10 days

0

32

RedMax TA99961609002

BALL BEARING

$

$

Not available

33

RedMax TA0583214120

IDLE SHAFT

$19.02

$

Usually ships in 3-10 days

0

34

RedMax TA0613214120

REVERSE GEAR

$76.97

$

Usually ships in 3-10 days

0

35

RedMax TA99962091211

NEEDLE BRG TLA912 1.5X5.8

$13.61

$

Usually ships in 3-10 days

0

36

RedMax TA0633214120

COUNTER SHAFT
(Superseded to 512982301)

$

$

Not available

37

$0.69

$

Usually ships in 3-10 days

0

41

RedMax TA2263214180

CLUTCH HOUSING COMP.

$33.97

$

Usually ships in 3-10 days

0

42

$0.57

$

Usually ships in 3-10 days

0

43

RedMax TA99101060011

NUT
(Superseded to 571143701)

$2.49

$

Usually ships in 3-10 days

0

44

RedMax TA99210060012

WASHER
(Superseded to 571144001)

$

$

Not available

45

RedMax TA2587100582

HANDLE COMP. A
(Superseded to 571142301)

$109.99

$

Usually ships in 3-10 days

0

46

RedMax TA1653313020

HANDLE GRIP A
(Superseded to 571141901)

$10.99

$

Usually ships in 3-10 days

0

47

RedMax TA1013212020

THROTTLE LEVER
(Superseded to 571141001)

$6.49

$

Usually ships in 3-10 days

0

48

RedMax TA1983313020

CORD CLAMP

$1.14

$

Usually ships in 3-10 days

0

49

RedMax TA99023060161

PLUS BOLT
(Superseded to 571143301)

$

$

Not available

50

RedMax TA99210060012

WASHER
(Superseded to 571144001)

$

$

Not available

51

RedMax TA2597100580

HANDLE COMP. B
(Superseded to 571142401)

$

$

Not available

52

RedMax TA1553210A20

CHUCK HANDLE HOLDER
(Superseded to 571141601)

$7.49

$

Usually ships in 3-10 days

0

53

RedMax TA99210100012

WASHER
(Superseded to 571144101)

$

$

Not available

54

RedMax TA0553213020

HANDLE GRIP
(Superseded to 571139701)

$

$

Not available

55

RedMax TA1503214180

CLUTCH CASE COMP.

$70.20

$

Usually ships in 3-10 days

0

56

$0.47

$

Usually ships in 3-10 days

0

57

RedMax TA1640702900

CORRUGATED TUBE 7X290L

$2.94

$

Usually ships in 3-10 days

0

58

RedMax TA1001200020

STUD BOLT 6X26
(Superseded to 571140901)

$2.49

$

Usually ships in 3-10 days

0

59

RedMax TA99011050251

SCREW
(Superseded to 571143201)

$2.49

$

Usually ships in 3-10 days

0

60

RedMax TA99101050011

HEX NUT
(Superseded to 571143601)

$2.49

$

Usually ships in 3-10 days

0

$0.28

$

Usually ships in 3-10 days

0

62

RedMax TA2581165020

BUTTON STOP
(Superseded to 571142201)

$

$

Not available

63

RedMax TA99431030101

SCREW
(Superseded to 571144801)

$1.49

$

Usually ships in 3-10 days

0

64

RedMax TA1563210A80

STOP SWITCH COMP.
(Superseded to 571141701)

$

$

Not available

65

RedMax TA9253317620

STOP BUTTON MARK
(Superseded to 571143101)

$

$

Not available

66

RedMax TA8851600180

THROTTLE WIRE 370+50
(Superseded to 571143001)

$

$

Not available

67

RedMax TA2657100580

HANDLE SUPPORT COMP.
(Superseded to 571142501)

$46.99

$

Usually ships in 3-10 days

0

70

RedMax TA0593212091

CHUCK HANDLE SET

$123.29

$

Usually ships in 3-10 days

0

71

RedMax TA0603212091

DRILL CHUCK ASS

$113.21

$

Usually ships in 3-10 days

0

72

RedMax TA0613212081

CHUCK HANDLE COMP.
(Superseded to 571140301)

$17.99

$

Usually ships in 3-10 days

0

73

RedMax TA8292000080

COMBI BOX SPANNER 13X19

$7.69

$

Usually ships in 3-10 days

0

74

RedMax TA8452000020

SPECIAL WRENCH 31

$22.64

$

Usually ships in 3-10 days

0
