ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

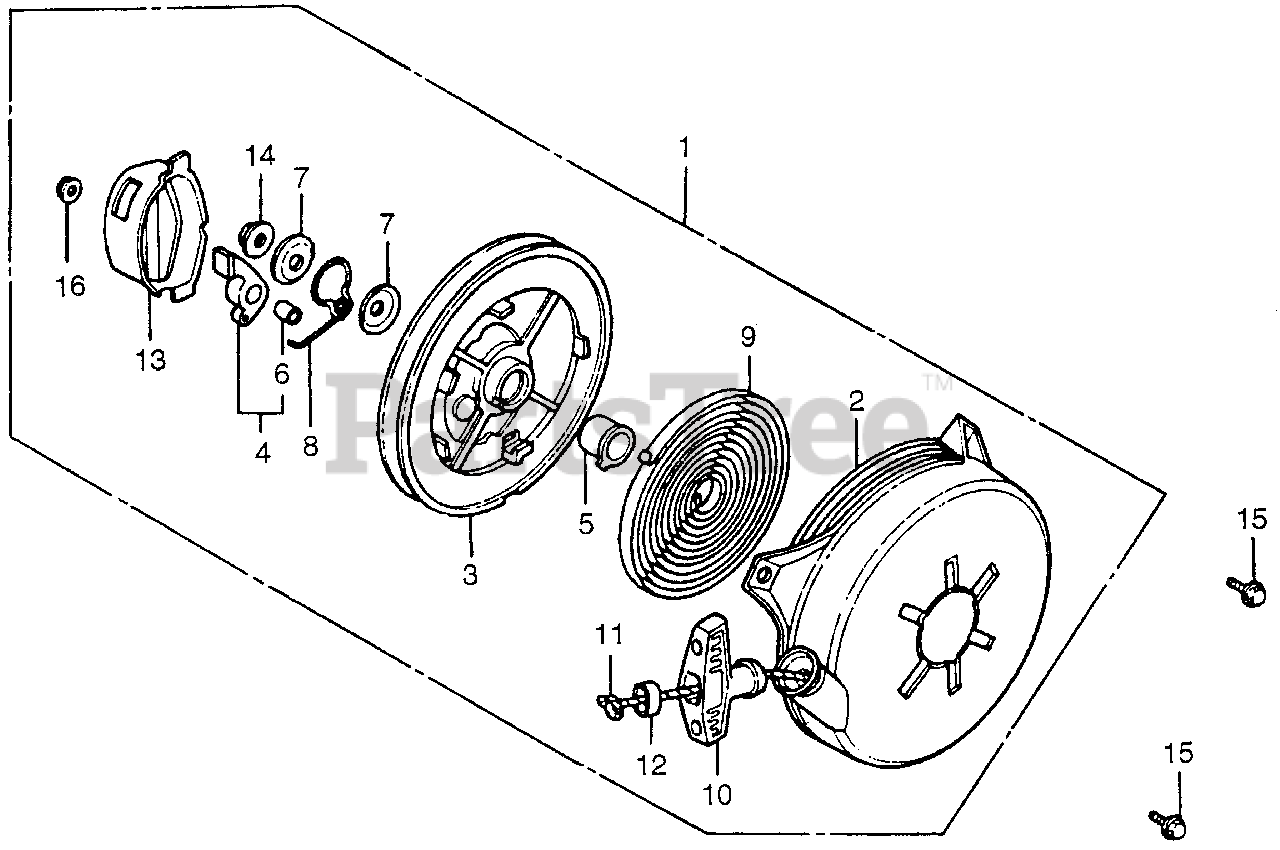

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-883-040ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28410-883-030H

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED)

$

$

Not available

2

Honda 28410-883-030ZB

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED)

$96.99

$

Usually ships in 3-6 days

0

3

Honda 28040-883-000

SEE PART DETAILS - PRI; REEL, STARTER

$

$

Not available

4

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

$18.99

$

In Stock, only 1 left!

0

5

Honda 28424-883-000

SEE PART DETAILS - PRI; BOSS, REEL

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28425-883-300

BUSH, RATCHET

$

$

Not available

7

Honda 28431-883-000

PLATE, FRICTION

$2.99

$

Usually ships in 3-6 days

0

8

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

$18.99

$

In Stock, only 1 left!

0

9

Honda 28442-883-000

SPRING, RETURN

$22.99

$

Usually ships in 3-6 days

0

10

Honda 28461-883-000

GRIP, STARTER

$11.99

$

In Stock, only 1 left!

0

11

Honda 28462-883-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55")

$

$

Currently unavailable

12

Honda 28463-883-000

SUPPORT, GRIP

$4.49

$

Usually ships in 3-6 days

0

13

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-YA0-N40)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$2.49

$

In Stock, Qty 5

0

15

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10)
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

16

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0
