ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) FLYWHEEL + POINTS Parts Diagram

Generator, Made in Japan

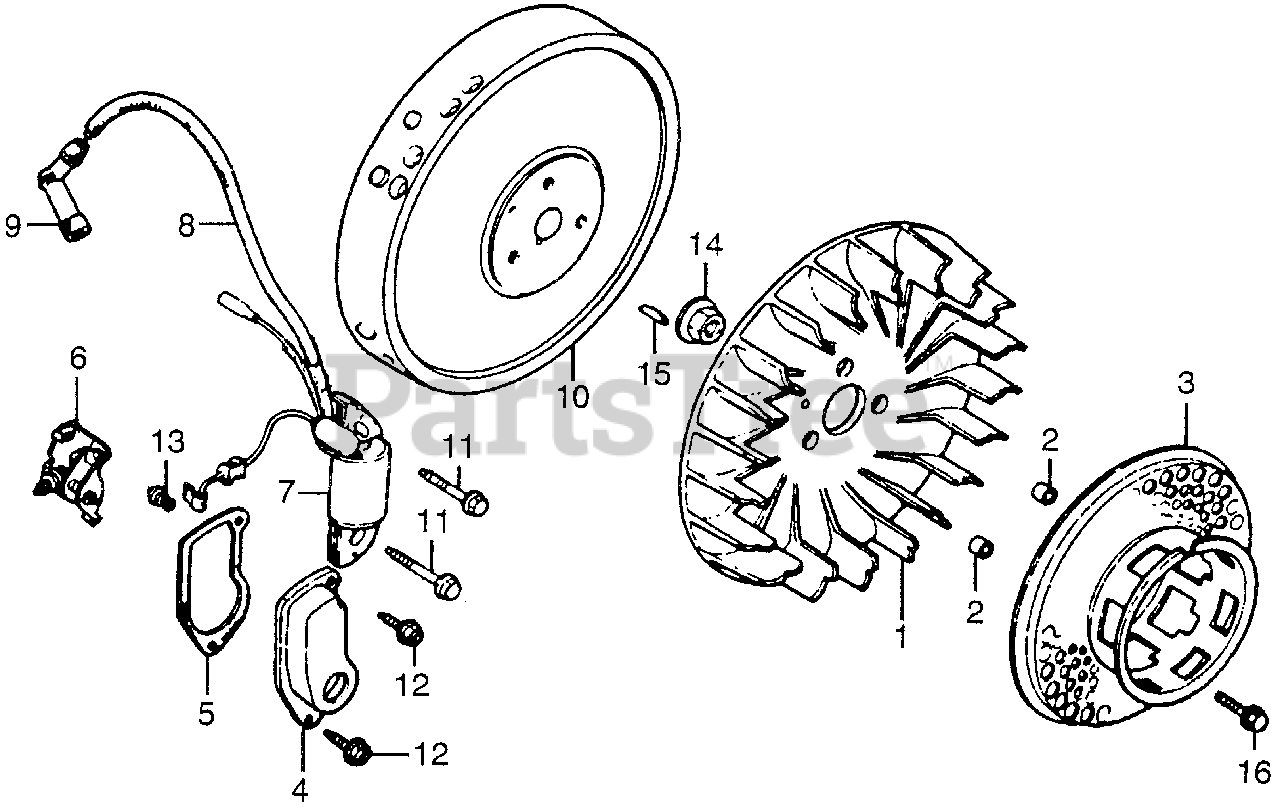

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-883-010

SEE PART DETAILS - SUP; FAN, COOLING

$

$

Currently unavailable

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$

$

Not available

4

Honda 30211-883-000

COVER, POINTS

$

$

Not available

5

Honda 30215-883-306

SEE PART DETAILS - PRI; GASKET, POINT COVER

$

$

Not available

6

Honda 30280-883-005

POINTS ASSY.

$35.99

$

Usually ships in 3-6 days

0

7

Honda 30560-883-015

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$148.99

$

Usually ships in 3-6 days

0

8

Honda 30565-728-000

SEE PART DETAILS - PRI; TUBE, IGNITION RUBBER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 30700-865-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

10

Honda 31100-883-010

FLYWHEEL

$

$

Not available

11

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

12

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

In Stock, only 1 left!

0

15

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0

16

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
