ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) CYLINDER BARREL + CYLINDER HEAD Parts Diagram

Generator, Made in Japan

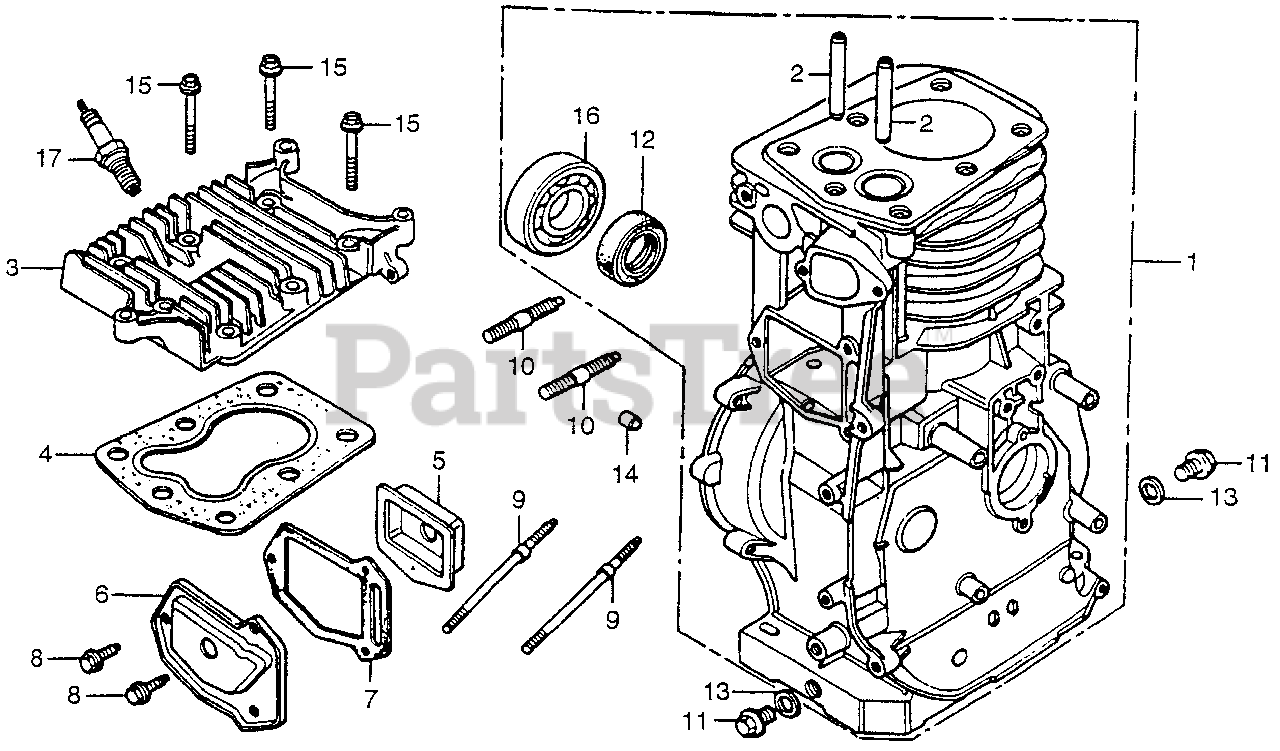

CYLINDER BARREL + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 120A0-883-630

SEE PART DETAILS - PRI; CYLINDER ASSY. (NOT AVAILABLE)

$

$

Not available

2

Honda 12133-883-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$17.99

$

Usually ships in 3-6 days

0

2

Honda 12134-883-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS)
(Superseded to 12133-883-306)

$17.99

$

Usually ships in 3-6 days

0

3

Honda 122A2-883-030

SEE PART DETAILS - PRI; CYLINDER HEAD

$

$

Not available

4

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$30.99

$

Usually ships in 3-6 days

0

5

Honda 12360-883-010

SEE PART DETAILS - PRI; CASE, BREATHER

$13.99

$

Usually ships in 3-6 days

0

6

Honda 12361-883-000

COVER, TAPPET ROOM

$15.99

$

Usually ships in 3-6 days

0

7

Honda 12375-883-000

GASKET, TAPPET COVER

$4.49

$

In Stock, only 2 left!

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

9

Honda 90043-883-010

SEE PART DETAILS - PRI; BOLT, STUD (6X96)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90047-883-000

BOLT, STUD (8X35)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 12

0

12

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 8

0

12

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 8

0

13

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

14

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

15

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, only 4 left!

0

16

Honda 96100-62050-10

BEARING, RADIAL BALL (6205)

$25.99

$

Usually ships in 3-6 days

0

17

Honda 98076-56716

SEE PART DETAILS - PRI; SPARK PLUG (BR6HS) (NGK)

$3.49

$

In Stock, only 4 left!

0
